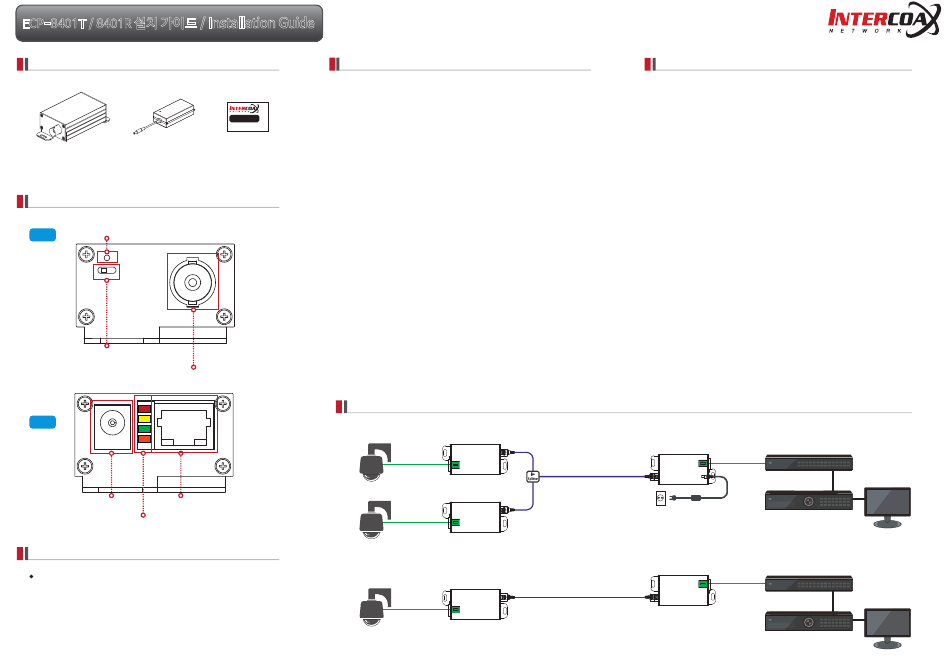

설치 가이드 /
ECP-8401T / 8401R
구성품 / Package Contents
아답터
ECP-8401T X 1 / 8401R X 1
X 1
PF-560120

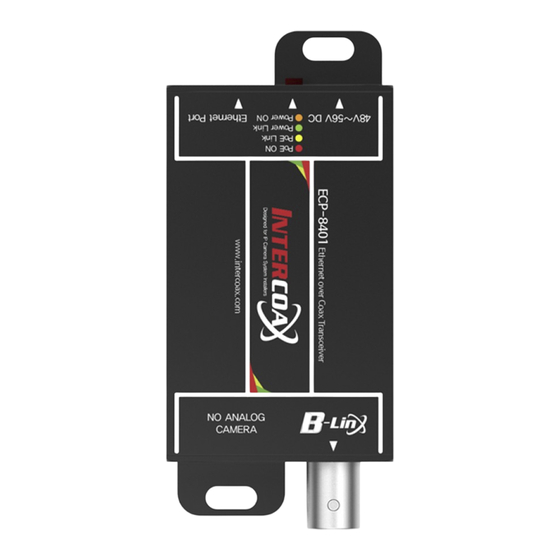

제품 각 부분의 명칭 / Hardware Overview
Join 버튼
Join Button
Right
PoE ON/OFF 스위치(ECP-8401T 전용)
PoE ON/OFF Switch(ECP-8401T Only)
BNC 커넥터
BNC connector
Left
DC 전원 어댑터
8401T(PoE output)
DC Power Jack
8401R(PoE input)
상태 표시등
Status LED indicator
고객 지원 정보 / Customer Service
고객 지원과 관련된 자세한 정보는 웹사이트에서 확인하실 수 있습니다.
Please visit below website for more detail information.
http://www.intercoax.com
Intercoax Co., Ltd.
TEL : 031-365-3133~4
FAX : 031-365-3135
E-mail : info@intercoax.com
Installation Guide
제품 설치 가이드
1. 별도의 IP설정이 필요없이 자동으로 카메라에 IP를 부여하는 경우(DHCP 등)를
제외하고, 카메라 제조사 설명서를 참조하여 카메라에 IP주소를 설정해 둡니다.
2. 동축케이블의 BNC커넥터를 ECP-8401T/8401R에 각각 연결합니다.
설치 가이드
3. 56V 전원 어댑터를 ECP-8401T/8401R에 먼저 연결한 후 AC전원
콘센트에 연결합니다.
* 케이블의 종류 및 상태, PoE 카메라의 소비전력(W) 등에 따라 실제 연결 가능한
설치 가이드
Installation Guide
총 거리가 줄어들 수 있습니다. (7W 카메라의 경우 56V 단일 전원 공급으로
5C-HFBT 최대 1,000m까지 PoE지원.)
4. ECP 제품이 문제 없이 연결된 경우, PWR/BNC Join LED가 켜진 것을 확인합니다.
5. ECP-8401T/8401R을 움직이지 않도록 잘 고정시킵니다.
6. 준비된 UTP케이블(랜선)을 이용하여 작동중인 NVR과 ECP-8401R을 먼저
연결하고, 이후 카메라와 ECP-8401T를 연결합니다.
7. PoE IP 카메라를 설치하는 경우, 카메라쪽 ECP-8401의 PoE 스위치를
ON으로 설정합니다. 별도 전원을 공급받는 IP 카메라를 설치하는 경우,
PoE 스위치를 OFF로 설정합니다.
* ECP-8401T/8401R 두 제품은 모두 BNC커넥터를 통해 데이터와 전원을 함께
전송합니다. ECP-8401R은 PoE 출력 기능이 지원되지 않는 제품으로,
RJ45 단자를 통해 데이터만 전송합니다. 따라서 카메라 등 연결된 장치에
별도 전원 공급이 필요합니다.
[노트북 컴퓨터 등을 NVR쪽 ECP-8401R에 연결하여 전 구간의 통신 상태를
확인하기 위한 Ping 테스트를 권장합니다.]
8. NVR에 연결된 모니터를 통해 각 카메라의 영상이 잘 나오는 지 확인합니다.
제품 적용 구성도 / Product Application
PoE IP Camera
PoE IP Camera
PoE IP Camera
ECP-8401
LAN
Coax or UTP
ECP-8401
LAN
Coax or UTP
ECP-8401
LAN
Product Installation Guide
1. Other than automatic IP setting (i.e. DHCP), set the IP address on the
camera following the camera manufacturer's manual.
2. Connect BNC connectors of coaxial cable to each ECP-8401T/8401R.
3. Connect 56V DC power to ECP-8401T/8401R first and then to AC outlet.
* The total distance may vary with the type and condition of cables,
and power consumption of PoE camera. (For example of 7W camera,
one 56V DC power can supply up to 1,000m of 5C-HFBT equivalent to RG6.)
4. When they are connected without any problem,
PWR and BNC Join LED are on.
5. Fix up the ECP-8401T/8401R.
6. Connect the UTP(LAN) cable between ECP-8401R and NVR first and
then between ECP-8401T and camera.
7. Turn on the PoE switch on ECP-8401 for PoE IP camera and turn off
for IP camera with additional power supply.
* Both ECP-8401T/8401R send data and power together via BNC connector.
ECP-8401R does not have PoE support so that it can send data only via RJ45.
Connected device (i.e. IP camera) to ECP-8401R needs to have extra
power supply.
[Ping test is recommended to confirm the whole network.]
8. Check the video signal on the monitor.
LAN
ECP-8401R
PoE Switch
56V DC Power Supply
NVR
LAN
ECP-8401R
PoE Switch
NVR
