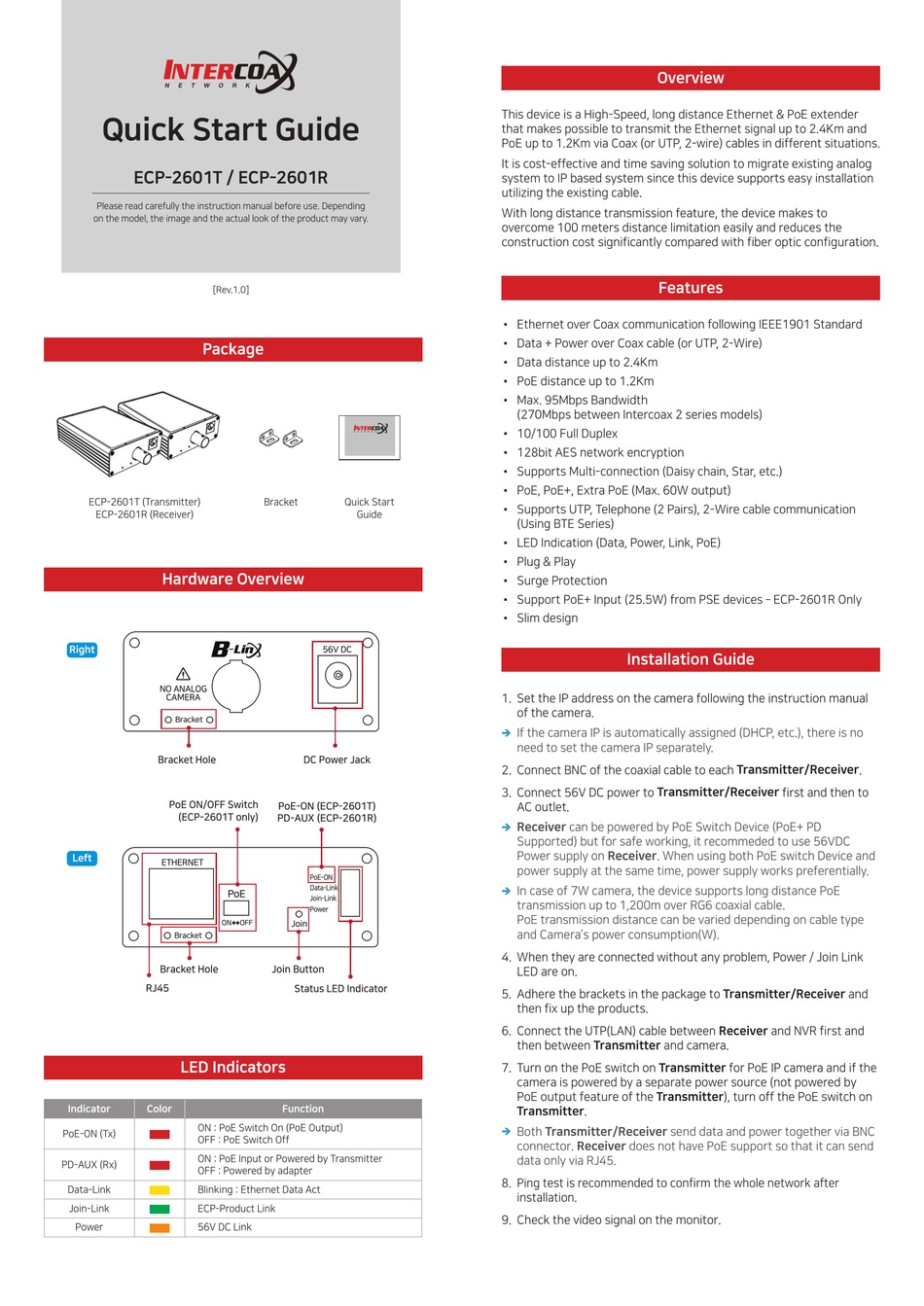

Quick Start Guide
ECP-2601T / ECP-2601R
Please read carefully the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
[Rev.1.0]
Package
ECP-2601T (Transmitter)
ECP-2601R (Receiver)
Hardware Overview
Right
NO ANALOG
CAMERA
Bracket
Bracket Hole
브라켓 홀
PoE ON/OFF Switch
PoE ON/OFF 스위치
(ECP-2601T 전용)
(ECP-2601T only)
Left
ETHERNET
PoE
ON
Bracket
브라켓 홀
Bracket Hole
RJ45
LED Indicators
Indicator
Color
ON : PoE Switch On (PoE Output)
PoE-ON (Tx)
OFF : PoE Switch Off
ON : PoE Input or Powered by Transmitter
PD-AUX (Rx)
OFF : Powered by adapter
Data-Link
Blinking : Ethernet Data Act
Join-Link
ECP-Product Link
Power
56V DC Link
Bracket
Quick Start
Guide
56V DC
DC Power Jack
DC 전원 어댑터
PoE-ON (ECP-2601T)
PD-AUX (ECP-2601R)
PoE-ON
Data-Link
Join-Link
Power
OFF
Join
Join 버튼
Join Button
Status LED Indicator
상태 표시등
Function
Overview
This device is a High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal up to 2.4Km and
PoE up to 1.2Km via Coax (or UTP, 2-wire) cables in different situations.
It is cost-effective and time saving solution to migrate existing analog
system to IP based system since this device supports easy installation
utilizing the existing cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
Ethernet over Coax communication following IEEE1901 Standard
Data + Power over Coax cable (or UTP, 2-Wire)
Data distance up to 2.4Km
PoE distance up to 1.2Km
Max. 95Mbps Bandwidth
(270Mbps between Intercoax 2 series models)
10/100 Full Duplex
128bit AES network encryption
Supports Multi-connection (Daisy chain, Star, etc.)
PoE, PoE+, Extra PoE (Max. 60W output)
Supports UTP, Telephone (2 Pairs), 2-Wire cable communication
(Using BTE Series)
LED Indication (Data, Power, Link, PoE)
Plug & Play
Surge Protection
Support PoE+ Input (25.5W) from PSE devices – ECP-2601R Only
Slim design
Installation Guide
1. Set the IP address on the camera following the instruction manual
of the camera.
If the camera IP is automatically assigned (DHCP, etc.), there is no
Î
need to set the camera IP separately.
2. Connect BNC of the coaxial cable to each Transmitter/Receiver.
3. Connect 56V DC power to Transmitter/Receiver first and then to
AC outlet.
Receiver can be powered by PoE Switch Device (PoE+ PD
Î
Supported) but for safe working, it recommeded to use 56VDC
Power supply on Receiver. When using both PoE switch Device and
power supply at the same time, power supply works preferentially.
In case of 7W camera, the device supports long distance PoE
Î
transmission up to 1,200m over RG6 coaxial cable.
PoE transmission distance can be varied depending on cable type
and Camera's power consumption(W).
4. When they are connected without any problem, Power / Join Link
LED are on.
5. Adhere the brackets in the package to Transmitter/Receiver and
then fix up the products.
6. Connect the UTP(LAN) cable between Receiver and NVR first and
then between Transmitter and camera.
7. Turn on the PoE switch on Transmitter for PoE IP camera and if the
camera is powered by a separate power source (not powered by
PoE output feature of the Transmitter), turn off the PoE switch on
Transmitter.
Both Transmitter/Receiver send data and power together via BNC
Î
connector. Receiver does not have PoE support so that it can send
data only via RJ45.
8. Ping test is recommended to confirm the whole network after
installation.
9. Check the video signal on the monitor.
