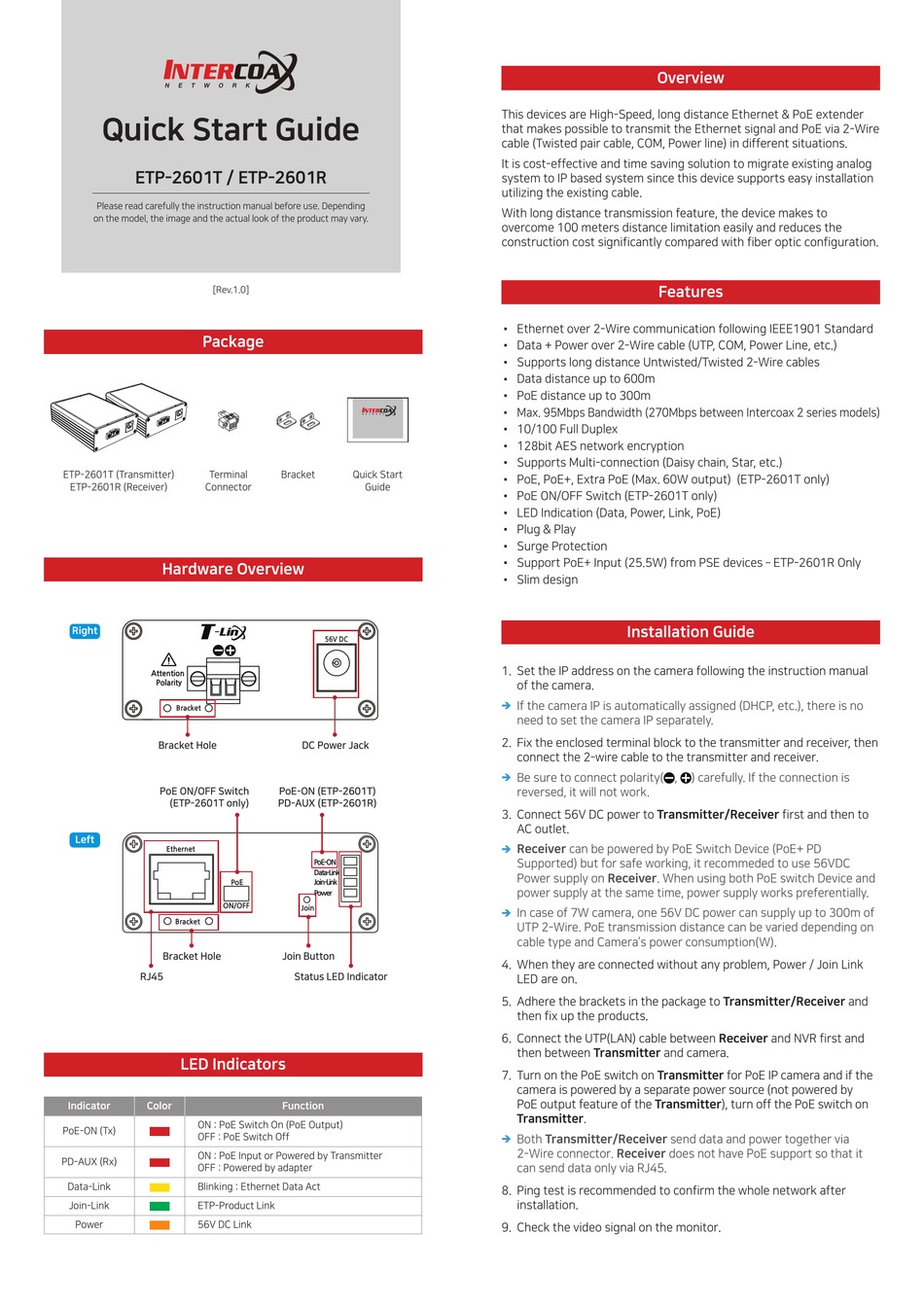

Intercoax ETP-2601T Quick Start Manual

Quick Start Guide
ETP-2601T / ETP-2601R
Please read carefully the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
[Rev.1.0]

Package

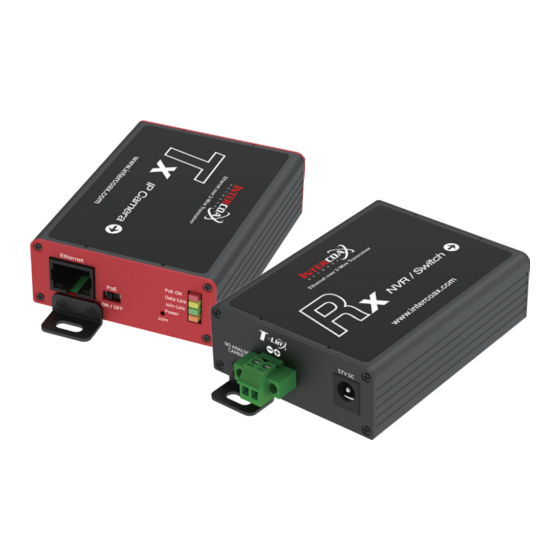

ETP-2601T (Transmitter) Terminal
ETP-2601R (Receiver) Connector

Hardware Overview

Right
Bracket Hole
브라켓 홀
PoE ON/OFF Switch PoE ON/OFF 스위치
(ETP-2601T only)
(ETP-2601T 전용)
Left
Bracket Hole 브라켓 홀
RJ45

LED Indicators

Indicator Color
ON : PoE Switch On (PoE Output)
PoE-ON (Tx)
OFF : PoE Switch Off
ON : PoE Input or Powered by Transmitter
PD-AUX (Rx)
OFF : Powered by adapter
Data-Link Blinking : Ethernet Data Act
Join-Link
ETP-Product Link
Power 56V DC Link
Bracket Quick Start
Guide
DC Power Jack
DC 전원 어댑터
PoE-ON (ETP-2601T)
PD-AUX (ETP-2601R)
Join Button Join 버튼
Status LED Indicator 상태 표시등
Function

Overview

This devices are High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE via 2-Wire
cable (Twisted pair cable, COM, Power line) in different situations.
It is cost-effective and time saving solution to migrate existing analog
system to IP based system since this device supports easy installation
utilizing the existing cable.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.

Features

 Ethernet over 2-Wire communication following IEEE1901 Standard
 Data + Power over 2-Wire cable (UTP, COM, Power Line, etc.)
 Supports long distance Untwisted/Twisted 2-Wire cables
 Data distance up to 600m
 PoE distance up to 300m
 Max. 95Mbps Bandwidth (270Mbps between Intercoax 2 series models)
 10/100 Full Duplex
 128bit AES network encryption
 Supports Multi-connection (Daisy chain, Star, etc.)
 PoE, PoE+, Extra PoE (Max. 60W output) (ETP-2601T only)
 PoE ON/OFF Switch (ETP-2601T only)
 LED Indication (Data, Power, Link, PoE)
 Plug & Play
 Surge Protection
 Support PoE+ Input (25.5W) from PSE devices – ETP-2601R Only
 Slim design

Installation Guide

1. Set the IP address on the camera following the instruction manual
of the camera.
If the camera IP is automatically assigned (DHCP, etc.), there is no
Î
need to set the camera IP separately.
2. Fix the enclosed terminal block to the transmitter and receiver, then
connect the 2-wire cable to the transmitter and receiver.
Be sure to connect polarity( ,
Î
reversed, it will not work.
3. Connect 56V DC power to Transmitter/Receiver first and then to
AC outlet.
Receiver can be powered by PoE Switch Device (PoE+ PD
Î
Supported) but for safe working, it recommeded to use 56VDC
Power supply on Receiver. When using both PoE switch Device and
power supply at the same time, power supply works preferentially.
In case of 7W camera, one 56V DC power can supply up to 300m of
Î
UTP 2-Wire. PoE transmission distance can be varied depending on
cable type and Camera's power consumption(W).
4. When they are connected without any problem, Power / Join Link
LED are on.
5. Adhere the brackets in the package to Transmitter/Receiver and
then fix up the products.
6. Connect the UTP(LAN) cable between Receiver and NVR first and
then between Transmitter and camera.
7. Turn on the PoE switch on Transmitter for PoE IP camera and if the
camera is powered by a separate power source (not powered by
PoE output feature of the Transmitter), turn off the PoE switch on
Transmitter.
Both Transmitter/Receiver send data and power together via
Î
2-Wire connector. Receiver does not have PoE support so that it
can send data only via RJ45.
8. Ping test is recommended to confirm the whole network after
installation.
9. Check the video signal on the monitor.
