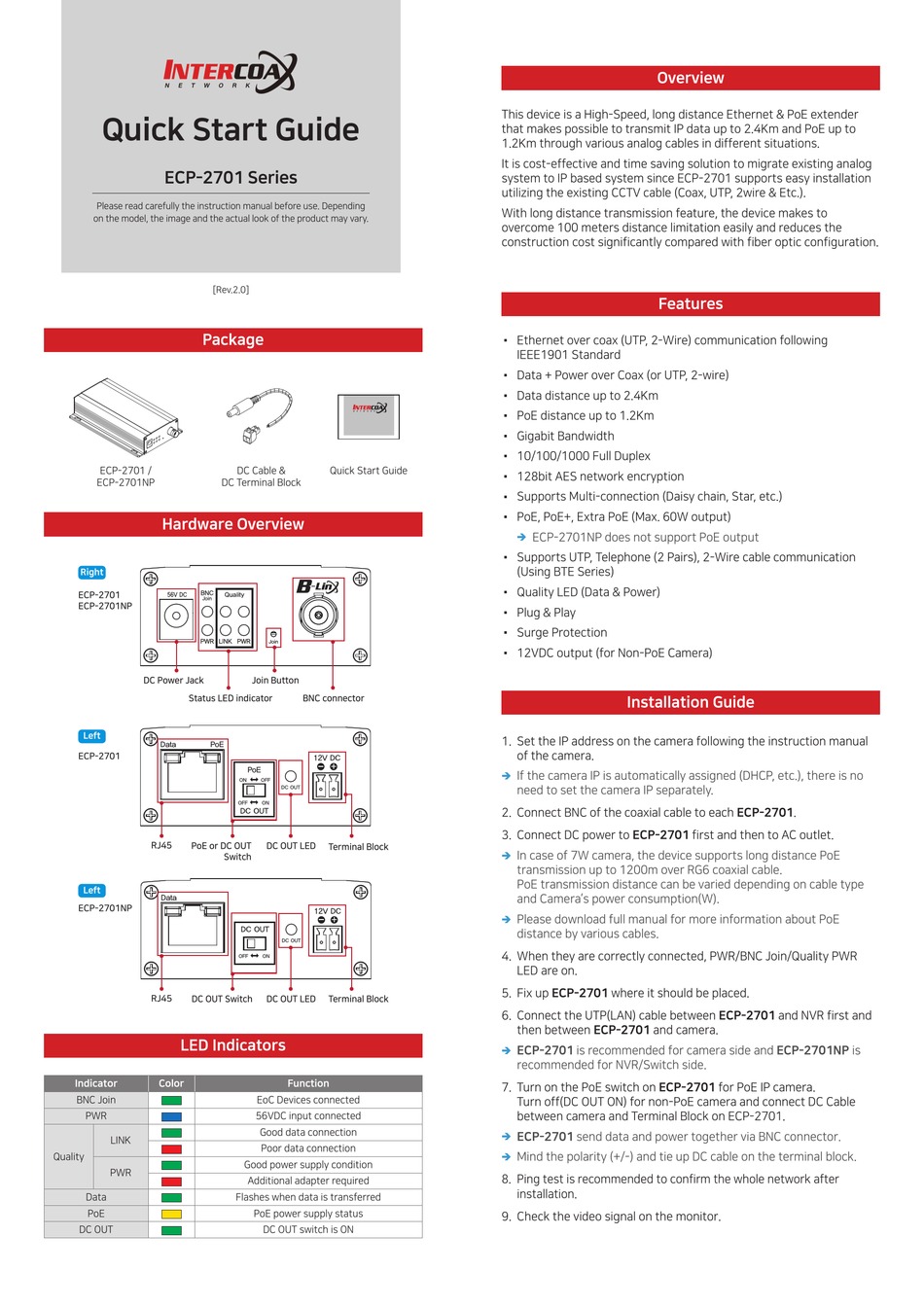

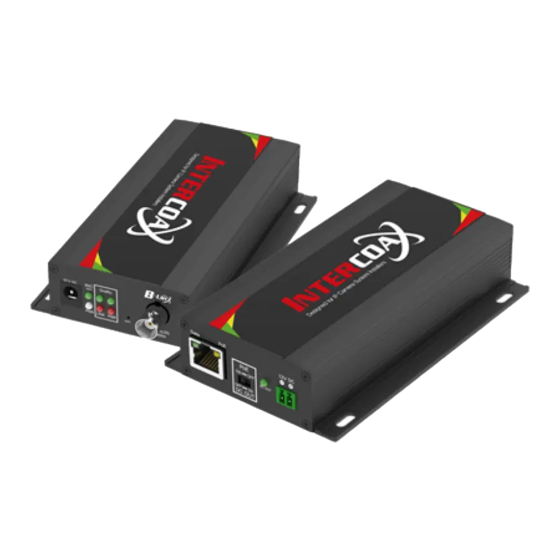

Intercoax ECP-2701NP Quick Start Manual

Quick Start Guide
ECP-2701 Series
Please read carefully the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
[Rev.2.0]
Package
ECP-2701 /
ECP-2701NP DC Terminal Block
Hardware Overview
Right
ECP-2701
ECP-2701NP
DC Power Jack DC 전원 어댑터
상태 표시등
Status LED indicator
Left
ECP-2701
RJ45 PoE or DC OUT PoE / DC OUT
스위치 Switch
Left
ECP-2701NP
RJ45 DC OUT스위치
DC OUT Switch
LED Indicators
Indicator Color
BNC Join
PWR
LINK
Quality
PWR
Data
PoE
DC OUT
DC Cable & Quick Start Guide
Join Button Join 버튼
BNC 커넥터
BNC connector
DC OUT 표시등 터미널 블럭 DC OUT LED
Terminal Block
DC OUT 표시등 터미널 블럭
DC OUT LED Terminal Block
Function
EoC Devices connected
56VDC input connected
Good data connection
Poor data connection
Good power supply condition
Additional adapter required
Flashes when data is transferred
PoE power supply status
DC OUT switch is ON
Overview
This device is a High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit IP data up to 2.4Km and PoE up to
1.2Km through various analog cables in different situations.
It is cost-effective and time saving solution to migrate existing analog
system to IP based system since ECP-2701 supports easy installation
utilizing the existing CCTV cable (Coax, UTP, 2wire & Etc.).
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
 Ethernet over coax (UTP, 2-Wire) communication following
IEEE1901 Standard
 Data + Power over Coax (or UTP, 2-wire)
 Data distance up to 2.4Km
 PoE distance up to 1.2Km
 Gigabit Bandwidth
 10/100/1000 Full Duplex
 128bit AES network encryption
 Supports Multi-connection (Daisy chain, Star, etc.)
 PoE, PoE+, Extra PoE (Max. 60W output)
ECP-2701NP does not support PoE output
Î
 Supports UTP, Telephone (2 Pairs), 2-Wire cable communication
(Using BTE Series)
 Quality LED (Data & Power)
 Plug & Play
 Surge Protection
 12VDC output (for Non-PoE Camera)
Installation Guide
1. Set the IP address on the camera following the instruction manual
of the camera.
If the camera IP is automatically assigned (DHCP, etc.), there is no
Î
need to set the camera IP separately.
2. Connect BNC of the coaxial cable to each ECP-2701.
3. Connect DC power to ECP-2701 first and then to AC outlet.
In case of 7W camera, the device supports long distance PoE
Î
transmission up to 1200m over RG6 coaxial cable.
PoE transmission distance can be varied depending on cable type
and Camera's power consumption(W).
Please download full manual for more information about PoE
Î
distance by various cables.
4. When they are correctly connected, PWR/BNC Join/Quality PWR
LED are on.
5. Fix up ECP-2701 where it should be placed.
6. Connect the UTP(LAN) cable between ECP-2701 and NVR first and
then between ECP-2701 and camera.
ECP-2701 is recommended for camera side and ECP-2701NP is
Î
recommended for NVR/Switch side.
7. Turn on the PoE switch on ECP-2701 for PoE IP camera.
Turn off(DC OUT ON) for non-PoE camera and connect DC Cable
between camera and Terminal Block on ECP-2701.
ECP-2701 send data and power together via BNC connector.
Î
Mind the polarity (+/-) and tie up DC cable on the terminal block.
Î
8. Ping test is recommended to confirm the whole network after
installation.
9. Check the video signal on the monitor.
