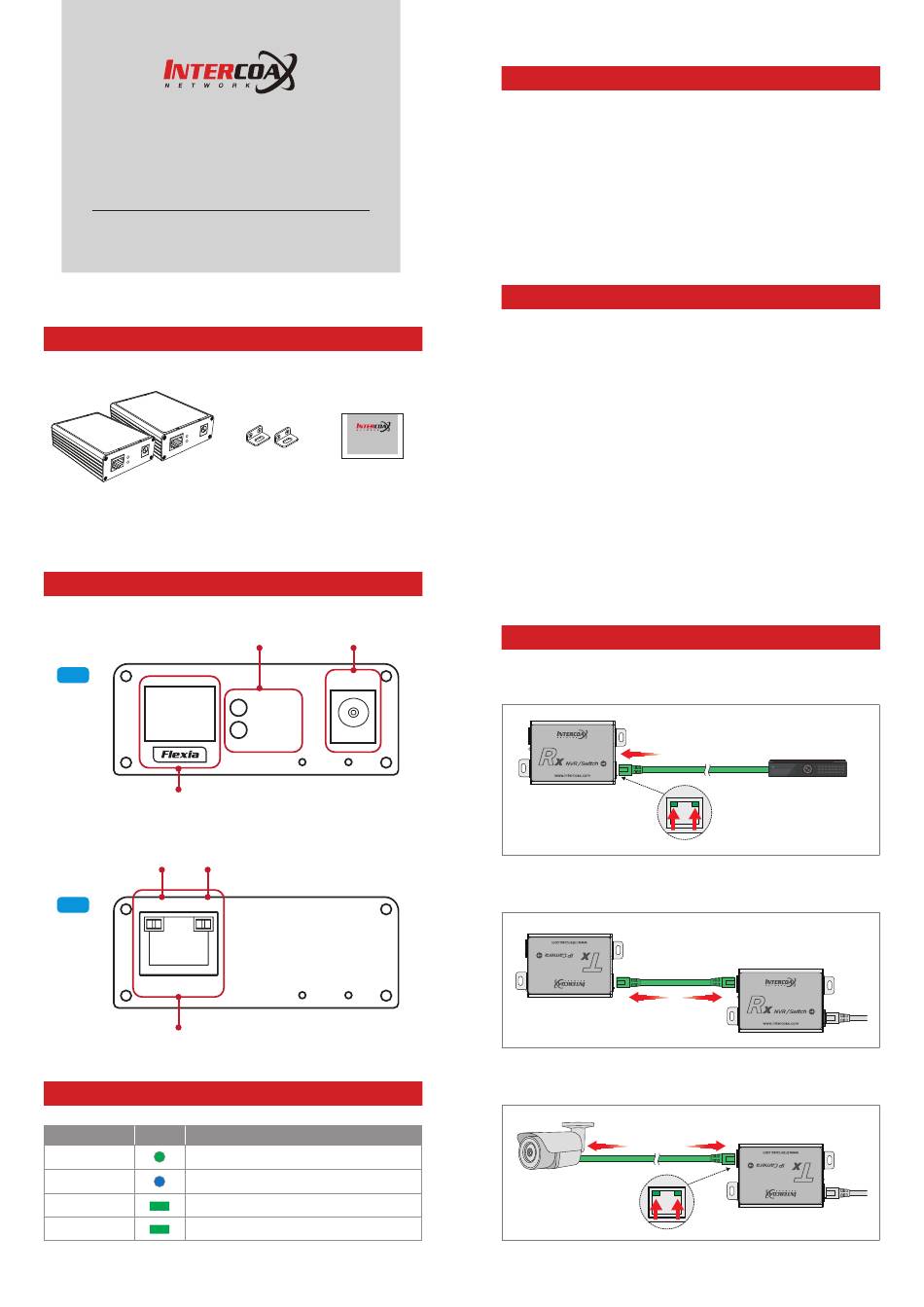

Intercoax FLX-11 Series Quick Start Manual

Quick Start Guide
FLX-11T / FLX-11R
Please carefully read the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
* Please visit our website www.intercoax.com
Package

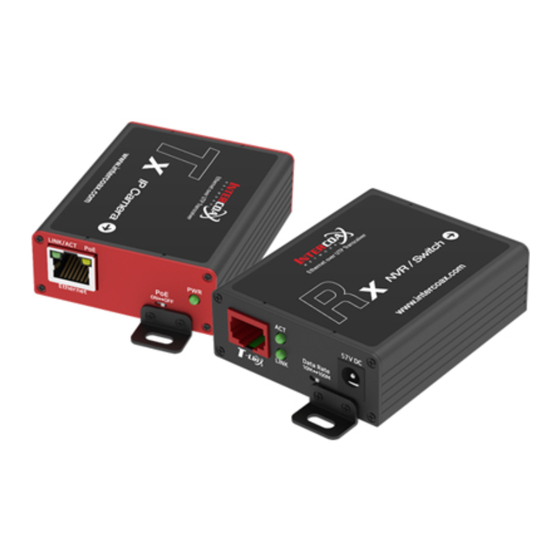

FLX-11T (Transmitter)
FLX-11R (Receiver)
Hardware Overview
Status LED Indicator 상태 표시등
Right
RJ-45
상태 표시등 상태 표시등
Status LED Indicator Status LED Indicator
LINK/ACT PoE
LINK/ACT PoE
Left
LINK/ACT PoE
Ethernet
RJ-45
LED Indicators
Indicator Color
PWR
DC Link (PoE or DC Power adapter)
LINK/ACT On/Blinking : Data Link/Act ( UTP Flexia Line)
LINK/ACT
On/Blinking : Data Link/Act ( Ethernet Line )
PoE
to download Manual.
Rev.1.0
Bracket Quick Start
Guide
DC 전원 어댑터 DC Power Jack
57V DC
PWR
LINK/ACT
Bracket
Bracket
Function
PoE Output On
Overview
FLX-11 Series are High-Speed, long reach Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE up to
500m through UTP(Cat 5e or better)cable.
It is cost-effective and time saving solution to migrate existing
analog system to IP based system since FLX-11 series support easy
installation utilizing the existing UTP cable or UTP bundle cables.
With long reach transmission feature, the device makes to overcome
100 meters distance limitation easily and reduces the construction
cost significantly compared with fiber optic configuration.
Features
 Long reach Ethernet & PoE extension over existing
UTP(Cat 5e or better) cable
 Data + Power over UTP(Cat 5e or better) cable
 Data and PoE distance up to 500 m
 100Mpbs Full Duplex
 Support PoE, PoE+ PSE output to PoE Camera.
(FLX-11T model only)
 Support PoE, PoE+ PD input (25.5W) from PoE Switch / PoE NVR
(FLX-11R model only)
 Multicast supported
 LED Indication (Data, Power)
 Plug & Play
 Surge Protection
 Compact design
Installation Guide
1. Connect UTP cable (Cat5e or better) from PoE Switch/NVR to
FLX-11R(Ethernet). Check LEDs on FLX-11R.
Ethernet cable
(Cat5e or better)
(Cat5e or better)
Ethernet cable
(Cat5e or better)
2. Connect UTP cable (Cat5e or better) from FLX-11R(Flexia) to
FLX-11T(Flexia).
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better)
3. Connect UTP cable (Cat5e or better) from FLX-11T(Ethernet) to IP
Camera (PoE Model Only). Check LEDs on FLX-11T.
Ethernet cable
(Cat5e or better)
Ethernet cable
(Cat5e or better) Ethernet cable
(Cat5e or better)
Check LEDs
Check LEDs
Check LEDs
PoE Switch/NVR
Ethernet cable
PoE Switch/NVR
PoE Switch/NVR
Check LEDs
Check LEDs
Check LEDs
