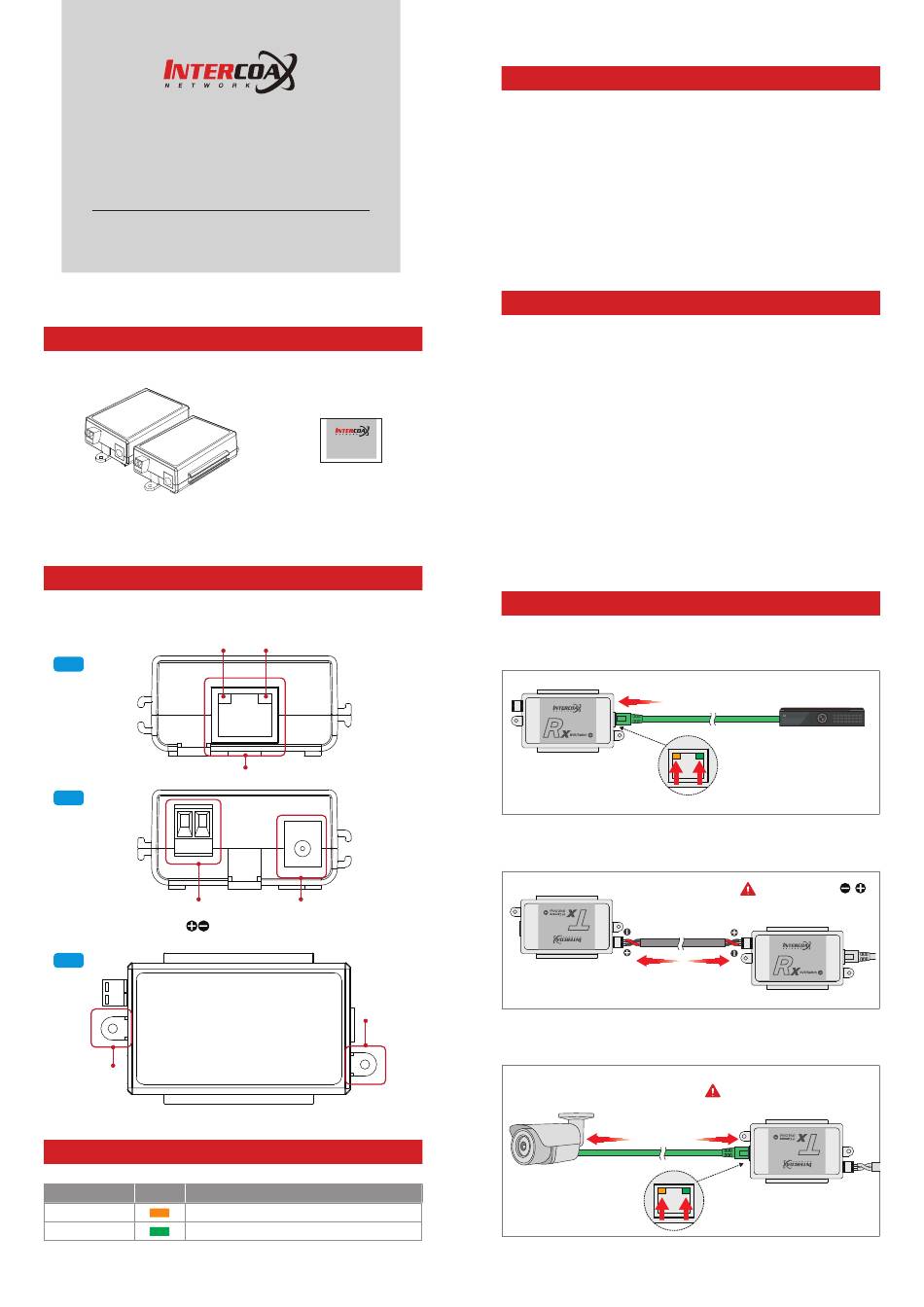

Intercoax ETP-01 Series ETP-01T Quick Start Manual

Quick Start Guide
ETP-01T / ETP-01R
Please carefully read the instruction manual before use. Depending
on the model, the image and the actual look of the product may vary.
* Please visit our website www.intercoax.com
Package
ETP-01T (Transmitter)
ETP-01R (Receiver)
Hardware Overview
Status LED Indicator
상태 표시등
DATA
DATA
Right
Left
Teminal connector Teminal 커넥터
Top
제품 고정
Mounting
Screw Hole 나사용 홀
LED Indicators
Indicator Color
DATA
PWR DC Link (PoE or DC Power adapter)
to download Manual.
IXMETXEN20
Quick Start
Guide
Status LED Indicator
상태 표시등
PWR
PWR
RJ45
DC 전원 어댑터
DC Power Jack
제품 고정
Mounting
나사용 홀
Screw Hole
Function
Blinking : Ethernet Data Act
Overview
ETP-01 Series are High-Speed, long distance Ethernet & PoE extender
that makes possible to transmit the Ethernet signal and PoE up to
300m through single pair of twisted wires.
It is cost-effective and time saving solution to migrate existing
analog system to IP based system since ETP-01 series support easy
installation utilizing the existing UTP bundle cables or any single
twisted pair cables.
With long distance transmission feature, the device makes to
overcome 100 meters distance limitation easily and reduces the
construction cost significantly compared with fiber optic configuration.
Features
 Long reach Ethernet & PoE extension over existing 2-Wire twisted
cable
 Data + Power over twisted cable
 Data and PoE distance up to 300 m
 100Mpbs Full Duplex
 PoE, PoE+, Extra PoE (Max. 60W PoE output, ETP-01T model only
with DC Power adapter)
 LED Indication (Data, Power)
 Plug & Play
 Surge Protection
 Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR
(ETP-01R model only)
 Slim design
Installation Guide
1. Connect Ethernet cable (Cat5e or better) from PoE Switch/NVR to
ETP-01R. Check LEDs on ETP-01R.
(Cat5e or better)
2. Connect single twisted pair cable to ETP-01R.
Connect single twisted pair cable from ETP-01R to ETP-01T.
2-Wire Twisted cable
2-Wire Twisted cable
2-Wire Twisted cable
3. Connect Ethernet cable (Cat5e or better) from ETP-01T to IP
Camera (PoE Model Only). Check LEDs on ETP-01T.
Ethernet cable
(Cat5e or better)
Ethernet cable
Ethernet cable
(Cat5e or better)
(Cat5e or better)
Check LEDs
Check LEDs
Check LEDs
Ethernet cable
PoE Switch/NVR
Ethernet cable
PoE Switch/NVR
Ethernet cable
(Cat5e or better) PoE Switch/NVR
(Cat5e or better)
Check LEDs
Check LEDs
Check LEDs
Attention polarity( ,
Please connect PoE DEVICE ONLY.
).
