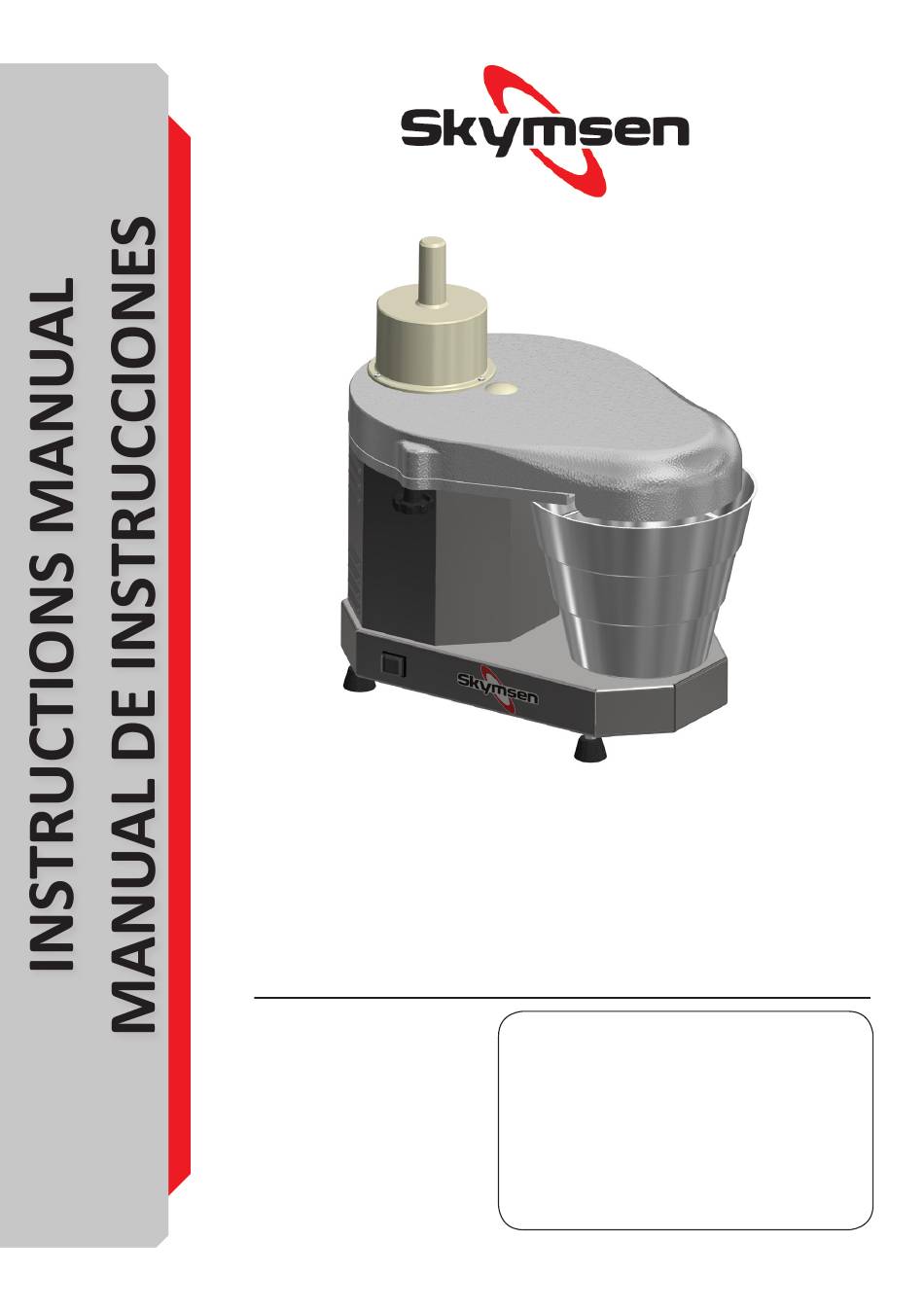

Skymsen PA-14-N Instruction Manual

Food processor, with 6 discs diameter 429 mm
Hide thumbs Also See for PA-14-N:

Advertisement

Available languages

Available languages

Table of Contents

FOOD PROCESSOR, WITH 6 DISCS DIAMETER 429 mm
PROCESADORA DE ALIMENTOS, CON 6 DISCOS DIAMETRO 429 mm
MODEL/MODELO
PA-14-N
700266 - INGLÊS/ESPANHOL
Data de Revisão: 14/10/2020
Metalúrgica Skymsen Ltda
Rodovia Ivo Silveira 9525
Volta Grande
88355-202 Brusque/SC/Brasil
CNPJ: 82.983.032/0001-19
www.skymsen.com – Fone: +55 47 3211 6000
- DUE TO THE CONSTANT IMPROVEMENTS INTRODUCED TO OUR EQUIPMENTS, THE INFORMATION CONTAINED IN THE PRESENT INSTRUCTION MANUAL
MAY BE MODIFIED WITHOUT PREVIOUS NOTICE .
