Part Numbers, Compatibility, and Packing List – 3'x4', 3'x5', 4'x4'
Compatibility
Maestro 3'x4' Single Sided
Maestro 3'x5' Single Sided
Maestro 4'x4' Single Sided
Maestro 3'x4' See Through
Maestro 3'x5' See Through
Maestro 4'x4' See Through
Page 1 of 10

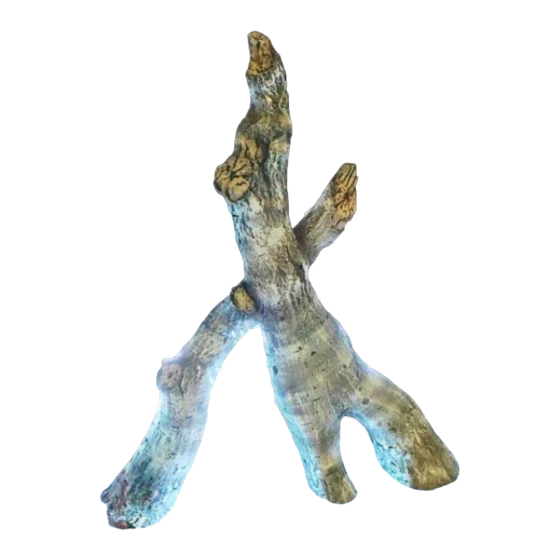

Bon-Fyre Log Set Maestro Fireplace
94401121, 94401122, 94401131, 94401132,
94401120, 94401130
Part #
94401122
2
94401121
2
94401132
3
94401131
3
(#2) 250-04516
(#3) 250-04517
(#5) 250-04519
(#6) 250-04520
(#7) 250-04521
(#8) 250-04522
17601980.docx — 4/25/18
Sku#
1
1
1
1
1
2
2
1
2
2
Page #
Pg. 1
Pg. 6
1
1
1
1
1
1
1
1
1
1
1
1
© Travis Industries, Inc.
5
6
7
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries Bon-Fyre
Summary of Contents for Travis Industries Bon-Fyre

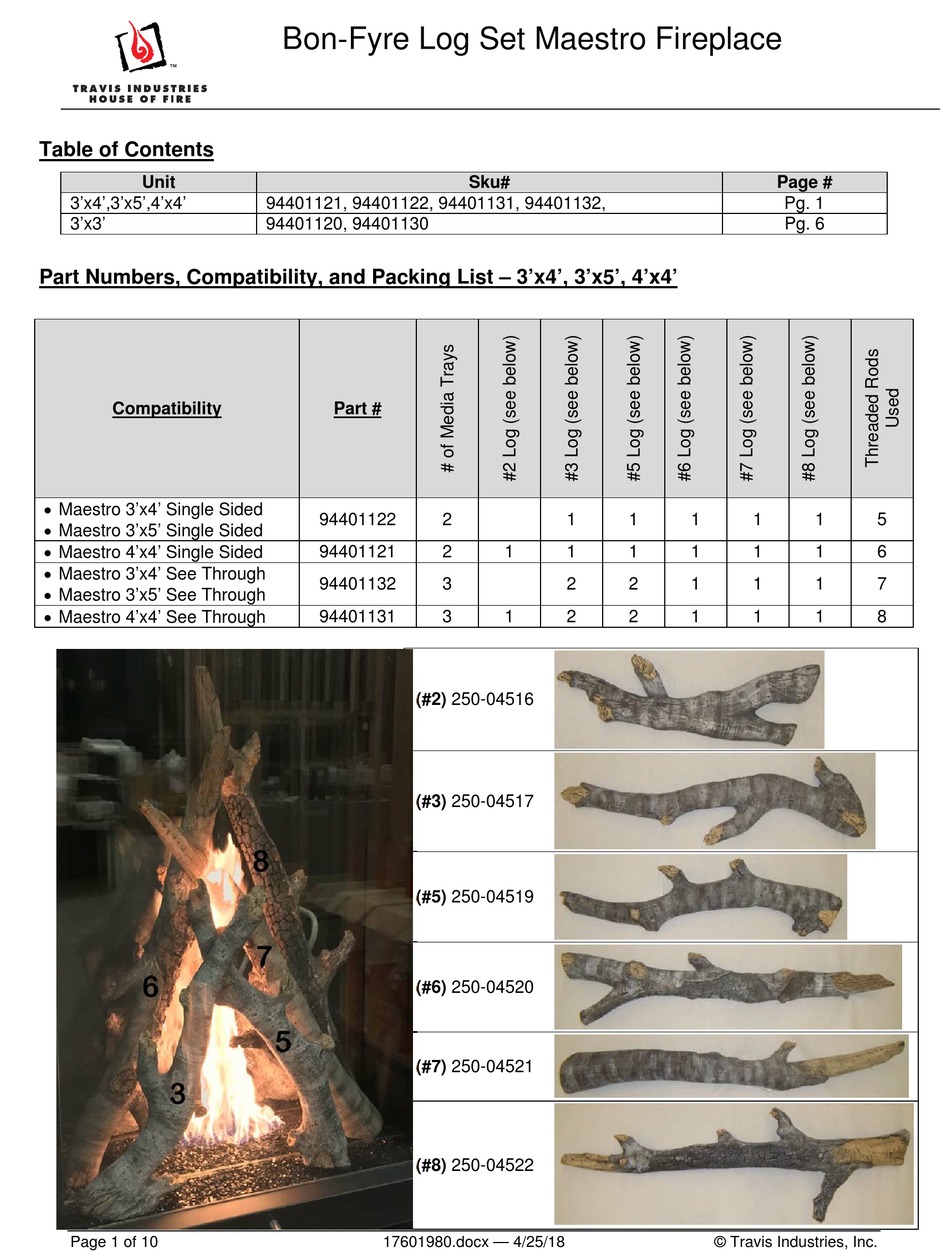

- Page 1 Bon-Fyre Log Set Maestro Fireplace Table of Contents Unit Sku# Page # 3’x4’,3’x5’,4’x4’ 94401121, 94401122, 94401131, 94401132, Pg. 1 3’x3’ 94401120, 94401130 Pg. 6 Part Numbers, Compatibility, and Packing List – 3’x4’, 3’x5’, 4’x4’ Compatibility Part # Maestro 3’x4’ Single Sided 94401122 ...
- Page 2 Bon-Fyre Log Set Maestro Fireplace Log Placement Overview – 3’x4, 3’x5’, 4’x4’ 3’x4’ & 3’x5’ Maestro Top View REAR Third Pane of Glass SEE-THROUGH ONLY Inner Glass Outer Glass Third Pane of Glass FRONT 4x4 Maestro Top View REAR Third Pane of Glass...
- Page 3 Bon-Fyre Log Set Maestro Fireplace Preparing the Media Trays - – 3’x4, 3’x5’, 4’x4’ 1. Remove and discard the stock media trays that come in the fireplace. -- Single-Sided Units – Remove and discard the front and center media trays.
- Page 4 Bon-Fyre Log Set Maestro Fireplace Installing the Logs - – 3’x4, 3’x5’, 4’x4’ HINT: Each log has a hole in the bottom to accommodate the alignment rod. When installing the log, place your finger beside the hole to align the log with the threaded rod.
- Page 5 Bon-Fyre Log Set Maestro Fireplace 3. Install log 7 as shown below. Log 7 fits into this notch 4. Install the crushed glass on the middle tray (see manual). Then install the inner front glass (see manual). 5. Install logs 3 and 5 as shown below.
- Page 6 Bon-Fyre Log Set Maestro Fireplace Part Numbers, Compatibility, and Packing List – 3’x3’ Compatibility Part Number Maestro 3’x3’ Single Sided 94401120 Maestro 3’x3’ See-Through 94401130 (#1) 250-04515 (#2) 250-04516 (#3) 250-04157 (#4) 250-04518 (#5) 250-04519 Page 6 of 10 17601980.docx — 11/15/21...
-
Page 7: Top View
Bon-Fyre Log Set Maestro Fireplace Log Placement Overview – 3’x3’ Top View REAR Third Pane of Glass SEE-THROUGH ONLY Inner Glass Outer Glass Third Pane of Glass FRONT Preparing the Media Trays – 3’x3’ 1. Remove and discard the stock media trays that come in the fireplace. - Page 8 Bon-Fyre Log Set Maestro Fireplace Installing the Logs – 3’x3’ HINT: Each log has a hole in the bottom to accommodate the alignment rod. When installing the log, place your finger beside the hole to align the log with the threaded rod.
- Page 9 Bon-Fyre Log Set Maestro Fireplace 1. Install log 5 followed by log 3 as shown below. NOTE: These pictures are shown from the front of the fireplace. HINT: Support the upper portion of log 5 while installing log 3 (they rest against each other).
- Page 10 Bon-Fyre Log Set Maestro Fireplace 5. Install logs 1 and 2 at the front of the fireplace as shown below. NOTE: You may need to rotate the logs for best fit. They can lean against the inner glass. 6. Install the crushed glass on the front tray (see manual). Then install the outer front glass (see manual).
