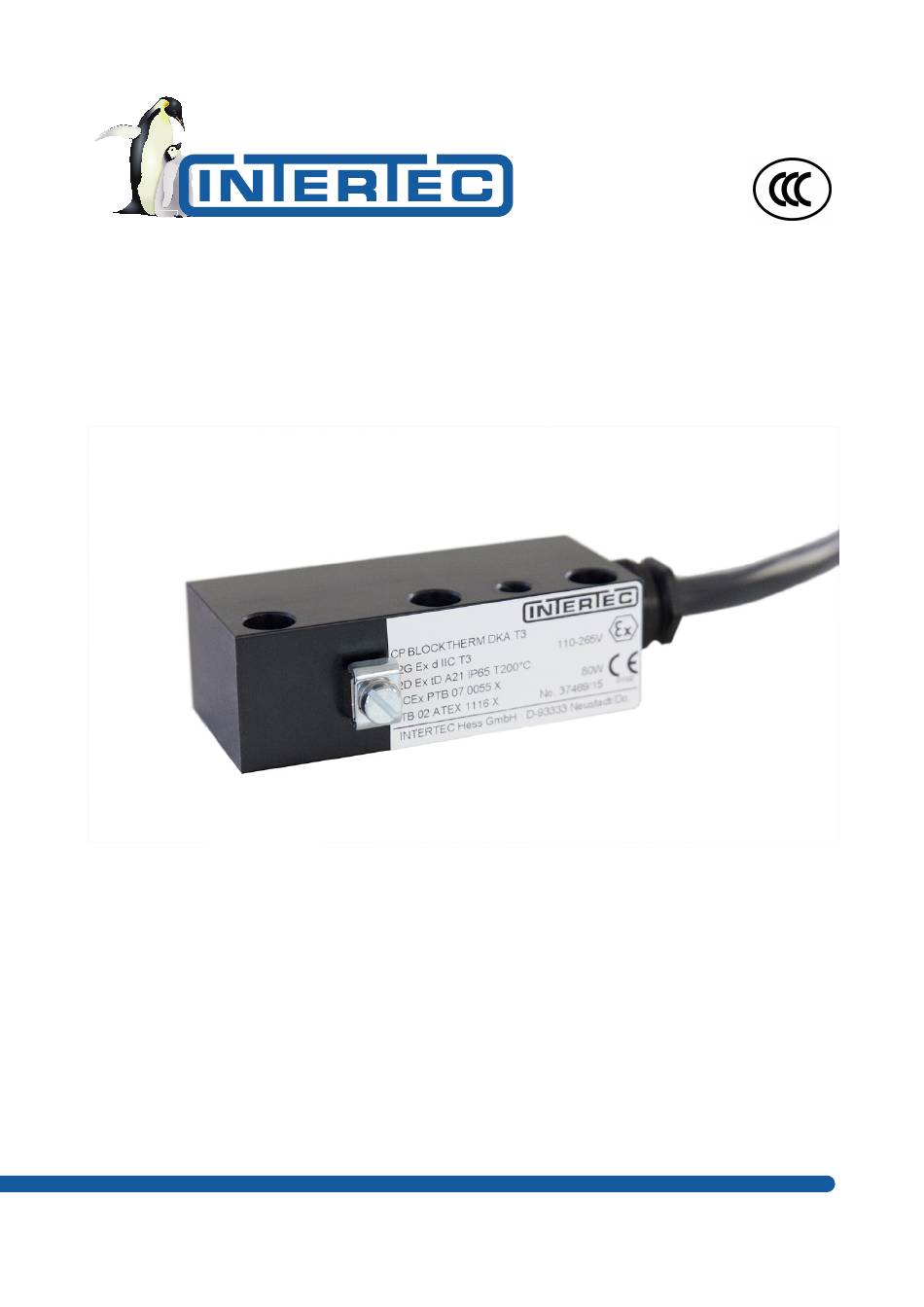

- Page 1 Operating Instructions CP BLOCKTHERM DC.A HOM2540144779en-1 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Special conditions for safe use .......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Technical Data ................................ 4 7 Installation ................................ 5 8 Connection................................ -
Page 3: General
Operating Instructions CP BLOCKTHERM DC.A • When installing, using and maintaining this heater, General the user must follow this operating instructions and These operating instructions describe the safe and the following standards: proper way to work with the device. The safety GB/T 3836.1-2021 : Explosive atmospheres - Part 1:... -
Page 4: Safety Information
Operating Instructions CP BLOCKTHERM DC.A Permitted operating voltage max. 250 V AC CAUTION Rated current (in max 10 A compliance with VDE 0298) NOTICE Ambient temperature - 60 to + 60 °C This sign is warning about a hazardous situation which, Max. -
Page 5: Installation
Operating Instructions CP BLOCKTHERM DC.A Installation NOTICE Carefully remove When removing from the packaging and during transport, the connection line must not be stressed or bent. Modifications and repairs may only be carried out by the manufacturer. If an additional TAE thermostat is switched in series, then it can be attached to the surface of the heater (thermal coupling). - Page 6 Operating Instructions CP BLOCKTHERM DC.A integrated thermostat, the fuse protection can be selected according to the cross-section of the supply cable. Additional equipotential bonding is required. The terminal block designated for this purpose has the ground sign. Junction box...
-
Page 7: Commissioning
Operating Instructions CP BLOCKTHERM DC.A CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. Terminal box The heating circuit is permanently disconnected by a temperature melt fuse which can't be reset if these installation instructions are not adhered to. -
Page 8: Deinstallation
Operating Instructions CP BLOCKTHERM DC.A If the heater fails, check the installation. Carry out a NOTICE continuity test on the heating circuit. Pay attention to the connection diagram switching point Environmental damage may be caused if thermostat! disposed of incorrectly! -
Page 9: Certificate Ccc
Operating Instructions CP BLOCKTHERM DC.A INTERTEC-Hess GmbH These instructions do not claim to take all designs, options or changes into Raffineriestr. 8 consideration, even in association with 93333 Neustadt/Donau installation, operation or maintenance. INTERTEC does not accept responsibility Germany... - Page 10 Operating Instructions CP BLOCKTHERM DC.A Page 10 / 12 HOM2540144779en-1...
- Page 11 Operating Instructions CP BLOCKTHERM DC.A ． 惫） CERTIFICATE FOR CHINA COMPULSORY PRODUCT CERTIFICATION 怠 SiTiiAS Worldwide Access CERTIFICATE NO: 2020322312003123 APPLICANT: Intertec Hess GmbH Schroeplerstrasse 37, 85053, Ingolstadt, Ger m any ADDRESS: MANUFACTURER: Intertec Hess GmbH ADDRESS: Schroeplerstrasse 37, 85053, Ingolstadt, Germany...
- Page 12 Operating Instructions CP BLOCKTHERM DC.A ． 雹 中国国家强制性产品认证证书 怠 Worldwide Access 证书编号： 202032231 2003123 附 件 产品 名称 ： 加热器 型号规格： CP a THERM b c d e f fl h 与防爆无关代码 B,C,D K, L, M, N, 0, P, R, S ,T, U A ,S �700...
