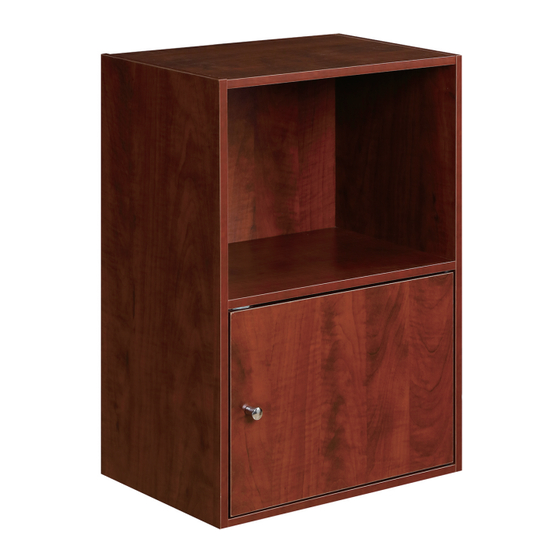

XTRA-STORAGE 1 DOOR CABINET
151186W
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com
151186
151186 CH
Advertisement
Related Manuals for convenience concepts 151186W
Summary of Contents for convenience concepts 151186W
- Page 1 XTRA-STORAGE 1 DOOR CABINET 151186W 151186 151186 CH ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
-
Page 2: Hardware List
Hardware List Magnet Knob screw Knob ( 1pc) Magnet ( 1pc ) screw ( 2pcs ) ( 1pc ) Spring pins Screw (12pcs) Cap (12pcs) (2pcs) Panel List Left side panel (1pc) Right side panel (1pc) Bottom panel (1pc) Top panel (1pc) Middle panel (1pc) Door panel (1pc) Back panel (2pcs) -
Page 3: Exploded Views
Exploded Views Page 3 of 5... - Page 4 Step 1 1.Attach magnet (A) to the middle panel with magnet screws (B). 2.Attach knob (C) to door using knob screw (D). 3.Insert spring pins (E) into door as shown. Step 2 1.Connect top panel , middle panel and bottom panel to left side panel with screws(F).
- Page 5 Step 4 1.Insert door into unit by placing one end of spring pin (E) into hole , gently compress other spring pin (E) so that it will slide into remaining hole. TO ATTACH DOORS Push Push door spring pin (E) down.
