Summary of Contents for infobit iSwitch 8K104

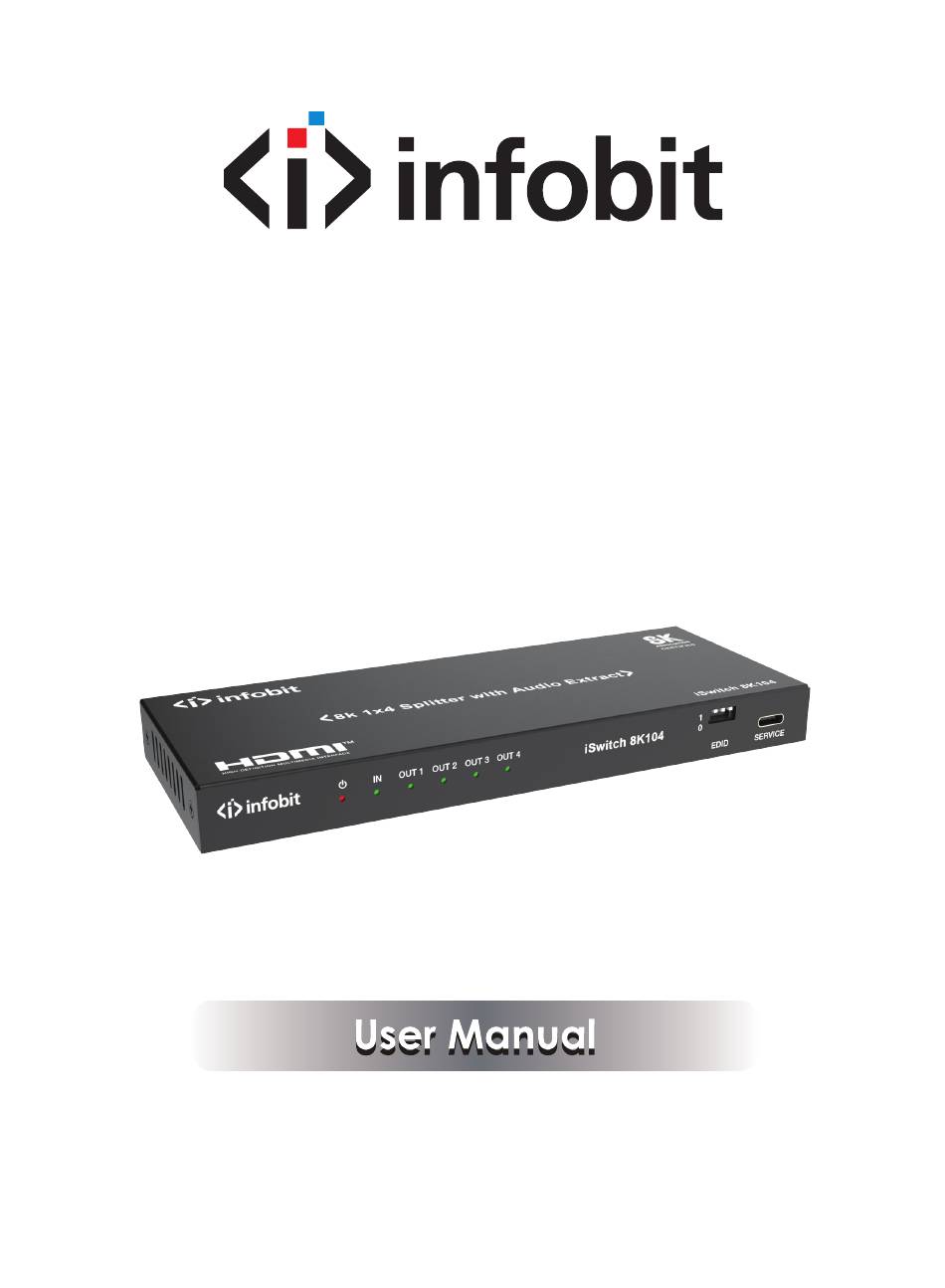

  • Page 1 8K104 48Gbps 1x4 Splitter VER 1.0 www.infobitav.com info@infobitav.com...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction This 1x4 splitter can distribute one HDMI source signal to any four display devices. Video resolution is up to 8K@60Hz 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, such as EDID management and cable equalization.
  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP 1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, Video Resolution 8K@30Hz 4:4:4 12bit Color Depth 8/10/12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS,...
  • Page 5: Operation Controls And Functions

    (HDMI IN / OUT) The use of “Premium High Speed HDMI” cable is highly recommended. 5. Operation Controls and Functions Front Panel OUT 1 OUT 2 OUT 3 OUT 4 iSwitch 8K104 EDID SERVICE Rear Panel OUT 1 OUT 2...
  • Page 6 Name Function Description When the device is powered on, the red LED will be on. POWER LED When the HDMI IN port connects an active source device, IN LED the green LED will be on. OUT LED When the HDMI OUT 1/2/3/4 port connects a display device and (1~4) outputs signal, the corresponding green LED will be on.
  • Page 7: Auto Downscaling & Auto Converting

    6. Auto Downscaling & Auto Converting This 8K HDMI splitter supports auto downscaling and auto converting on all outputs. It will automatically output the correct HDMI signal according to the EDID of the display device. As for this splitter, before downscaling it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output.
  • Page 8: Application Example

    Downscaling will not work in the following conditions: 1. The input source is 8K DSC format. 2. The resolution of input source is not supported by the splitter. 7. Application Example 8K TV 1 8K TV 4 Power Supply OUT 1 OUT 2 OUT 3 OUT 4...
