Downscaling will not work in the following conditions:
1. The input source is 8K DSC format.
2. The resolution of input source is not supported by the splitter.

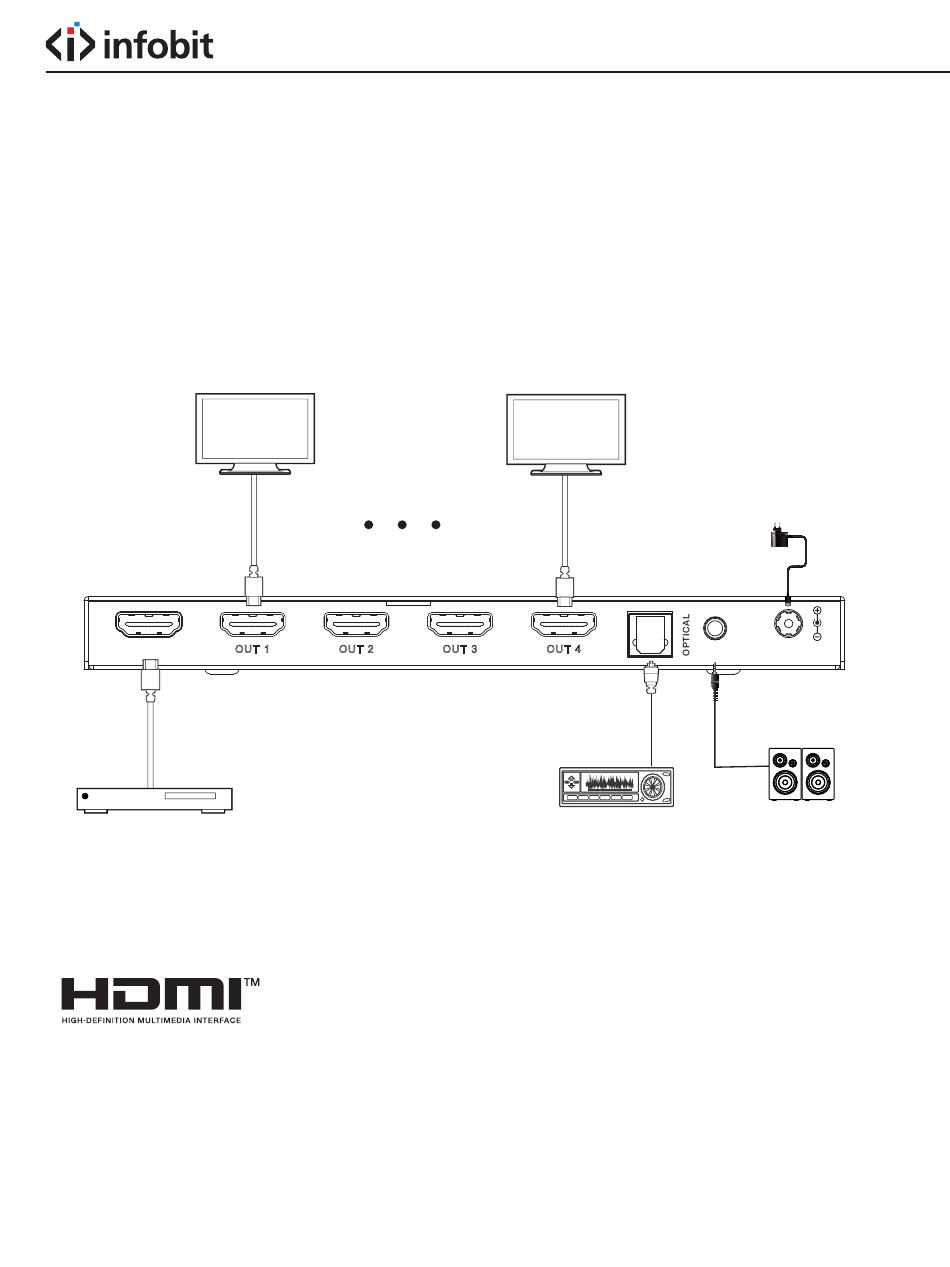

7. Application Example

8K TV 1
OUT 1
IN
DVD or Blu-ray Player
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
OUT 2 OUT 3
6 / 6
8K TV 4
OUT 4
L/R
Audio Amplifier
Power Supply
DC 5V
2.0 Speakers
