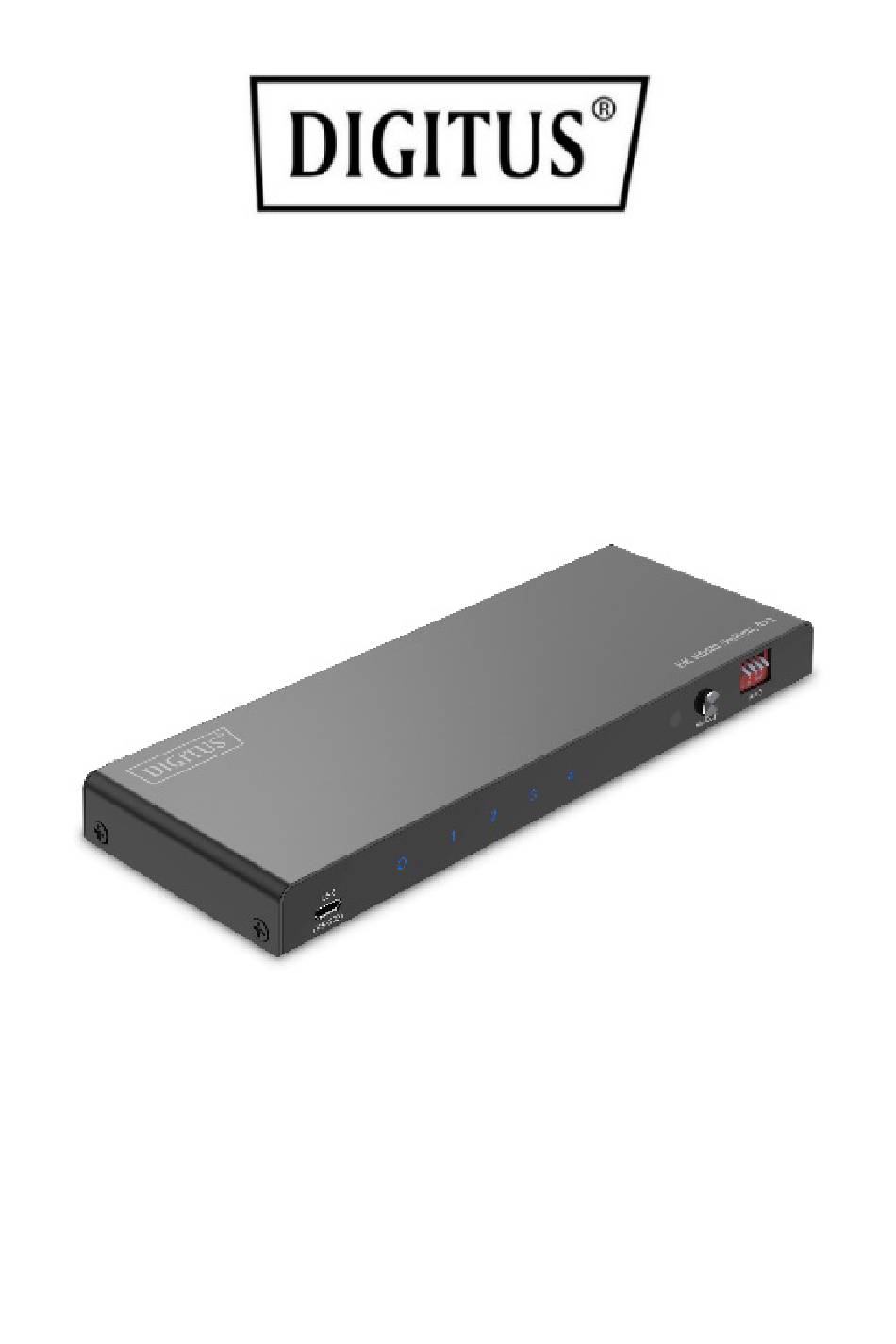

- Page 1 8K HDMI Switch, 4x1 Quick Installation Guide DS-55335...
-
Page 2: Main Features

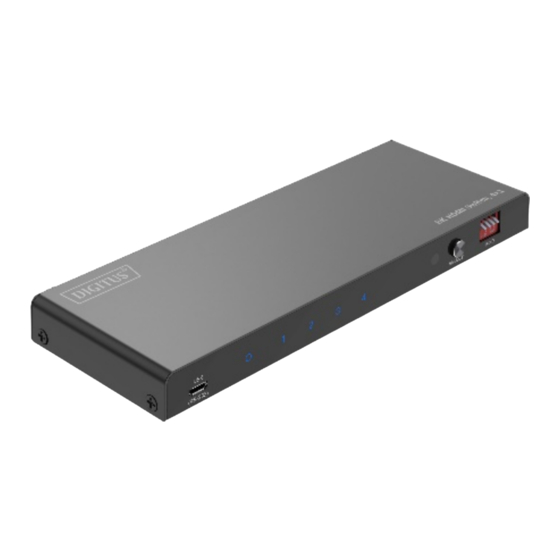

1. Introduction The DIGITUS® 8K HDMI Switch, 4x1 offers additional HDMI connections for your output display - 4 signal sources can be connected to the screen via just 1 HDMI connection. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. -
Page 3: Technical Features
4. Technical Features Input Ports HDMI x 4 Output Ports HDMI x 1 Vertical 50/60/ 120Hz Frequency Range Video Amplifier 12Gbps/1200MHz per channel (48Gbps all Bandwidth channels) Interlaced(50&60 480i,576i,1080i Progressive(50&6 480p,576p,720p,1080p,4K@24/30Hz,4K@50/ 0Hz) 60/120Hz, 8K@24/30/50/60Hz Operating 0℃ to 70℃ Temperature Storage Humidity 5% to 90% RH non-condensation Power Consumption... -
Page 4: Panel Description
5. Panel Description USB (Service): For Factory Use Only O: HDMI Output LED Indicator 1-4: HDMI Output 1-4 LED indicator IR Receiver port SELECT: Change the Input Source Select Button EDID: Three EDID select button for downscaler, auto and copy INPUT 1-4: HDMI Input 1-4 Port OUTPUT: HDMI Output Port Audio Output and SPDIF Output: Connect to the Audio... -
Page 5: Supported Formats
6. Supported formats • Support full 3D video format • Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz • Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels) • Support 12bit per channel (48bit all channels) deep color • Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4 •... - Page 6 0001 ↓↓↓↑ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, 2CH AUDIO 0010 ↓↓↑↓ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, DOLBY/DTS 5.1 0011 ↓↓↑↑ 8Kx4K@60 4:4:4/8Kx4K@30 4:4:4/4Kx2K@120Hz 4:4:4, 48G, HDR10, HD AUDIO 0100 ↓↑↓↓ 4Kx2K@60, 18G, HDR10, 2CH AUDIO 0101 ↓↑↓↑ 4Kx2K@60, 18G, HDR10, DOLBY/DTS 0110 ↓↑↑↓...
-
Page 7: Connection Diagram
1101 ↑↑↓↑ 1280x720p@60 DVI 1110 ↑↑↑↓ 1920x1080p@60 DVI 1111 ↑↑↑↑ 4Kx2K@30, 10.2G, HDR, 2CH AUDIO 7. Connection Diagram... -
Page 8: Troubleshooting
8. Troubleshooting Q: Power light is off and product is not working. How can I fix this? A: First, please check the following items: 1. Ensure that your devices HDMI inputs and power supply are properly connected and power is turned on. 2. - Page 9 Disclaimer Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
