- Page 1 8K HDMI Switch, 5x1 Quick Installation Guide DS-55334...
-
Page 2: Main Features

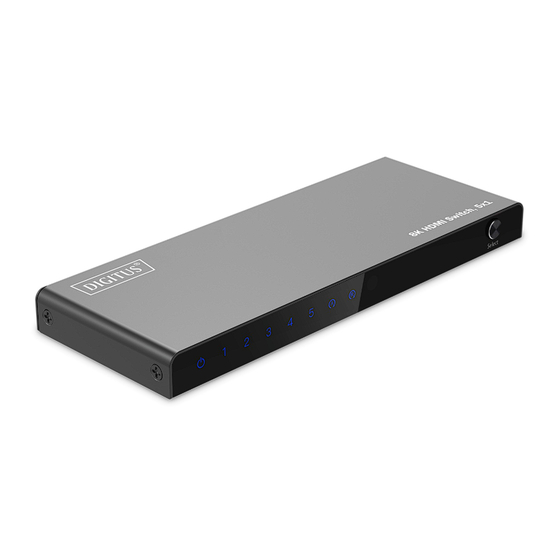

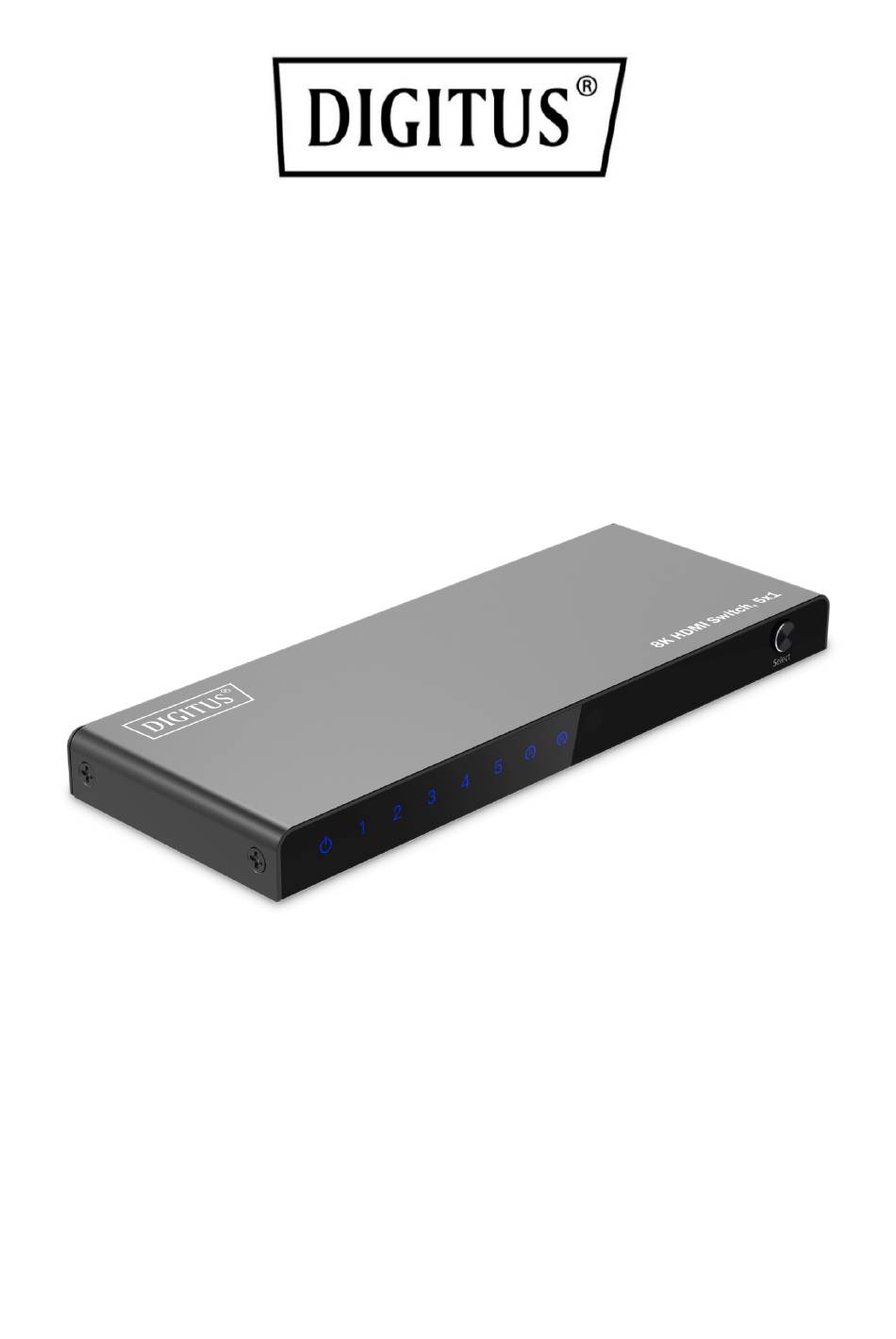

1. Introduction The DIGITUS® 8K HDMI Switch, 5x1 offers additional HDMI connections for your output display - 5 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the USB-C cable, e.g. via the source device or a USB charging adapter. -
Page 3: Technical Features
4. Technical Features Specs Description Video Input 5x HDMI Video Output 1x HDMI 50/60/100/120/240 Hz Vertical Frequency Range Video Bandwidth 12Gbps / 1200MHz per channel, 48Gbps all channels Interlaced Resolutions 480i, 576i, 1080i Progressive Resolutions 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz Operating Temperature 0℃... - Page 4 5. Overview 1. Power: Pressing to turn on/off the switcher 2. 1-5: Pressing the number to select the input source accordingly...
- Page 5 DC/5V: IR Mode LED Indicator: DC 5V Input via USB-C port ON: IR receiver mode activated OFF: IR function de-activated OUTPUT: HDMI Output 10. IR: IR signal receiver port INPUT 1-5: HDMI Input 11. Select button: Power LED Indicator: Short press to change the - Red LED indicates: input channel;...
-
Page 6: Connection Diagram
6. Connection Diagram 7. Troubleshooting The power indicator is off and the product is not working. How can I fix this? A: Please check the following points first: 1. make sure the HDMI input device of your device is properly connected and turn it on. - Page 7 2. make sure that the HDMI cable is an Ultra High Speed HDM 2.1 cable and the max. length is 1.5 m each for input and output at 8K/60Hz (4:4:4) | at 4K/60Hz the max. length is 4 m each for input and output. 3.
