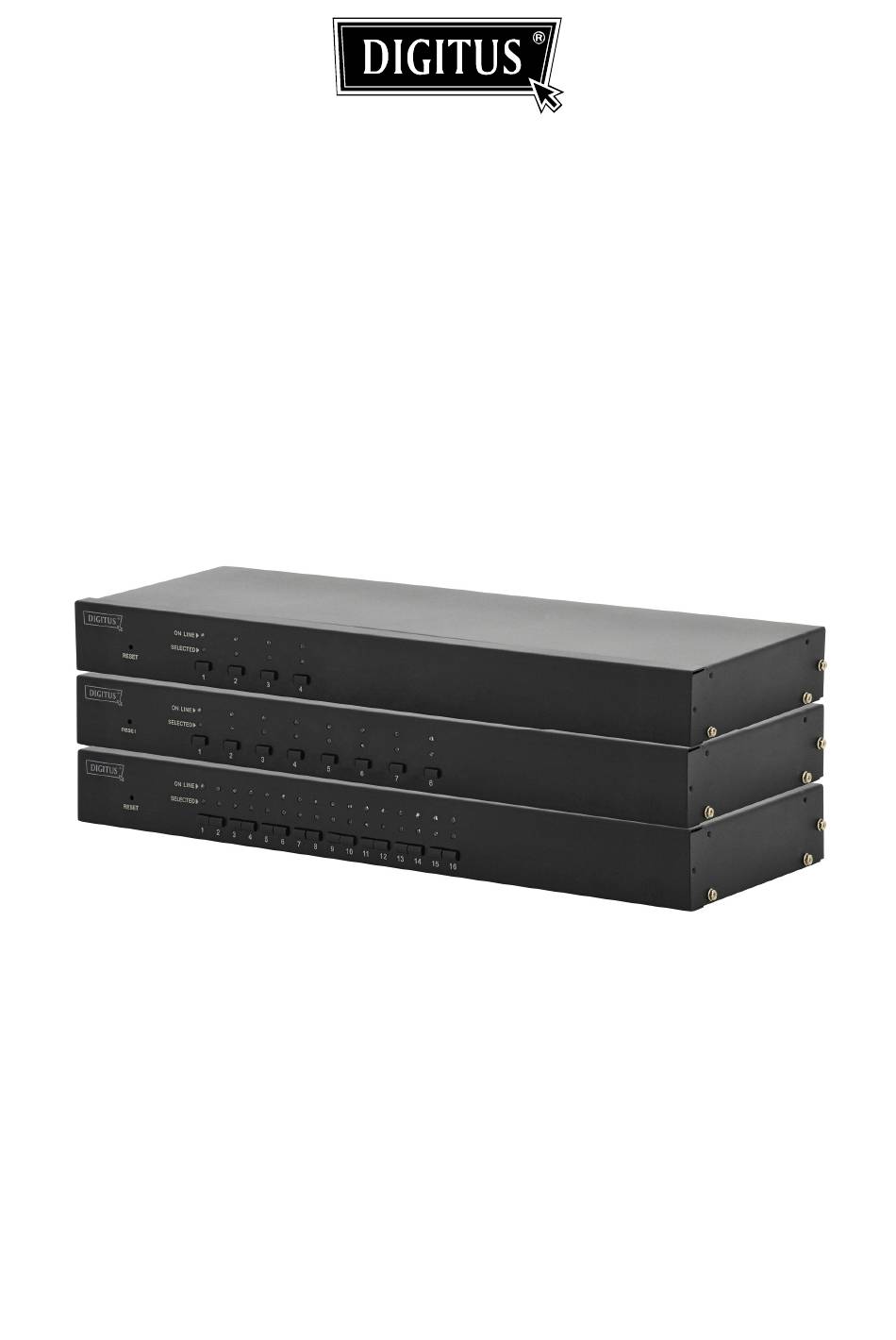

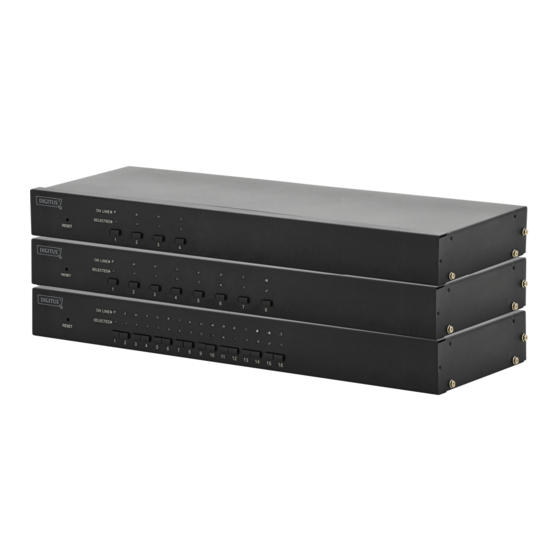

- Page 1 DS-23100-1/DS-23200-1/DS-23300-1 4 ports / 8 ports / 16 ports USB / PS/2 Combo-KVM Switch Manual DS-23100-1•DS-23200-1•DS-23300-1...
- Page 2 Consult the dealer or an experienced radio/television technician for help PRODUCT MODEL LIST Model Specification DS-23100-1 4 input（USB & PS/2) 1 output（USB), Supporting cascade & hub. DS-23200-1 8 input（USB & PS/2) 1 output（USB ), Supporting cascade & hub.
-
Page 3: Table Of Contents
HARDWARE REQUIREMENT ..........................4 CONSOLE ................................4 COMPUTER ................................ 5 CABLE ................................. 5 INTRODUCTION ..............................5 DS-23100-1 FRONT VIEW ..........................5 DS-23200-1 FRONT VIEW ..........................5 DS-23300-1 FRONT VIEW ..........................5 DS-23100-1 REAR VIEW ............................ 6 DS-23200-1 REAR VIEW ............................ 6 DS-23300-1 REAR VIEW ............................ -
Page 4: Overview
4 ports / 8 ports / 16 ports USB / PS/2 KVM (Keyboard, Video, Mouse) Switches are control units that allow access and control of up to 4(DS-23100-1), 8 (DS-23200-1) or 16 (DS-23300-1) computers from a single USB / keyboard, USB / mouse, and monitor console. -
Page 5: Computer
PS/2, USB keyboard and mouse ports CABLE Only customized KVM cable sets, which are specially designed to work with these switched, may be used. To purchase custom KVM cable sets, contact your dealer. INTRODUCTION DS-23100-1 FRONT VIEW DS-23200-1 FRONT VIEW DS-23300-1 FRONT VIEW... -
Page 6: Ds-23100-1 Rear View
If KVM has no responding, plug needle or ballpoint pen into the hole to reset KVM. 3. Port Selection Switches Press a switch button to access the computer attached to its corresponding port. DS-23100-1 with IP module rear view DS-23200-1 with IP module rear view DS-23300-1 with IP module rear view... -
Page 7: Installation
5. Repeat step 2-4 for any other computers you are connecting up. This completes the single stage installation, and you can turn on the power to the computers. NOTE: The DS-23100-1/DS-23200-1/DS-23300-1 initially links to computer connected to the first CPU port. -
Page 9: Operation
Note: If the unit is operating under external power, unplug the power adapter cable. 2. Wait 10 seconds, then plug the power adapter back and power on all computers PORT SELECTION The DS-23100-1/DS-23200-1/DS-23300-1 provides two methods to obtain instant access to any computer in your installation: manual and OSD. Manual Simply press the appropriate port selection switch on the DS-23100-1/DS-23200-1/DS-23300-1’s front... -
Page 10: Osd Operation
OSD OPERATION OSD OVERVIEW The On Screen Display (OSD) is used to handle all computer control and switching procedures. All procedures start from the OSD main menu. To pop up the main menu, tap the [Scroll Lock] twice. Note: You can optionally change the hotkey to the Ctrl key, in which case you would tap [ctrl] twice. If OSD menu is set as “console locked”, you must input password each time the main menu appears. -
Page 11: Osd Main Screen Headings
OSD MAIN SCREEN HEADINGS Heading Explanation This column lists the port numbers for all the CPU ports on the installation. The simplest method to access a particular computer is to move the highlight bar to it, then press [Enter]. If a port has been selected for Quick View scanning, an arrowhead symbol displays in this column to indicate so. - Page 12 Choice Meaning Lists all of the ports on the installation. QVIEW Lists only the ports that have been selected as Quick View Ports. POWERED ON Lists only the ports that have their attached computers powered on. POWERED ON + QVIEW Lists only the ports that have their attached computers powered on and have been selected as Quick View Ports.
-
Page 13: Troubleshooting
CHANNEL DISPLAY POSITION: Position of the tip window. A small blue window appears on the screen. Use arrow key to move it, and then press [Enter] to specify the position. SCAN DURATION: Duration for scanning one port。 Options are 3 seconds, 5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, 40 seconds, 60 seconds. -
Page 14: Specification
SPECIFICATION Type DS-23100-1 DS-23200-1 DS-23300-1 Computer connections CPU port selection Front panel switches/OSD menu Console Keyboard 1 x USB Female connectors Mouse 1 x USB Female Video 1 x HDB-15 female (blue) Keyboard 1 x PS/2 female (purple), 1 x USB female...
