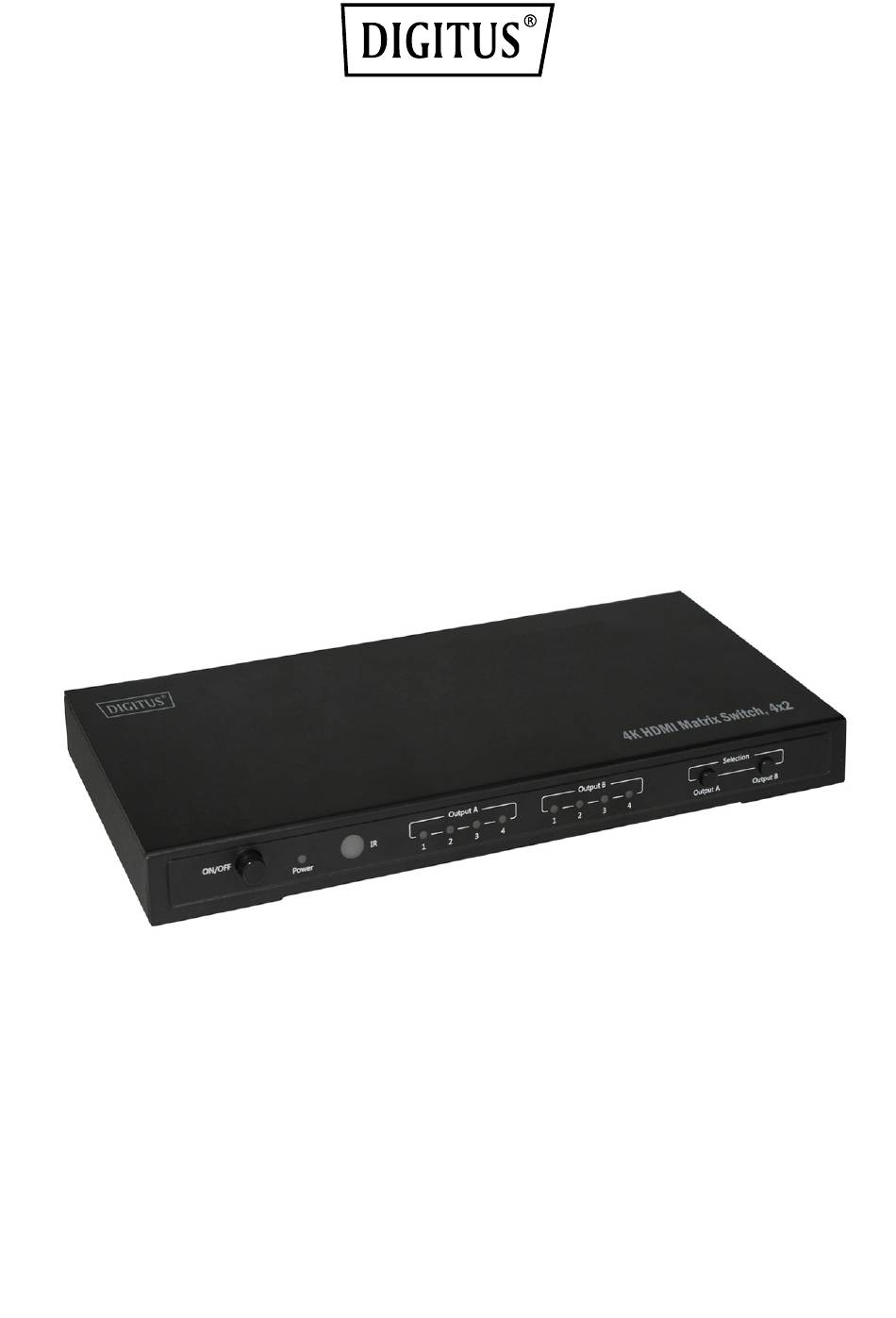

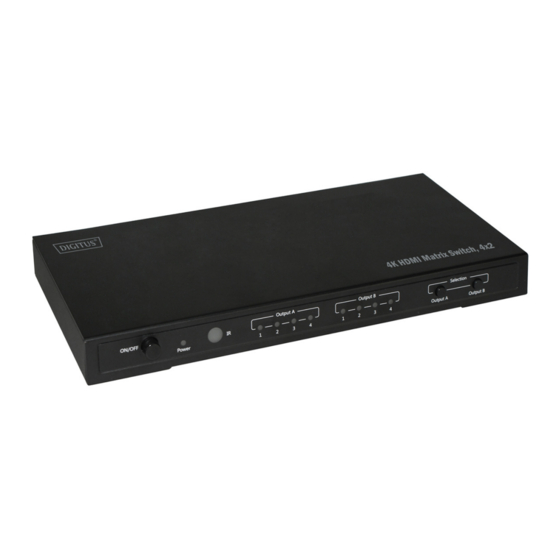

- Page 1 4×2 HDMI 4K2K Matrix Fast Switch Manual DS-50304...
- Page 2 INTRODUCTION: The HDMI 4K2K FAST SWITCH SPLITTER Matrix routes high definition video in multiple resolutions up to 4K2K and multichannel digital audio from any of the four HDMI sources to two displays (TV). Two outputs give you the choices of sending high definition audio and video signals up to two displays.
- Page 3 CONNECTION AND OPERATION: 1) Connect the HDMI input source into this product (Input cables are optional). *Please refer to connection diagram section. 2) Insert the DC side of 5v power supply into this product and then connect the AC side of the power supply into the wall outlet.
- Page 4 SPECIFICATIONS: Signal Inputs/Output Input Video Signal 5 Volts p-p (TTL) Maximum Single Link Range 3840x2160@30Hz HDMI Input/Output Connector Type A 19 pin HDMI Output A S/PDIF Signal SPDIF and COAX Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 3.4Gbps/340MHz Resolutions (HDTV) Interlaced (50&60Hz) 480i,576i,1080i...
