Summary of Contents for Digitus DS-55332

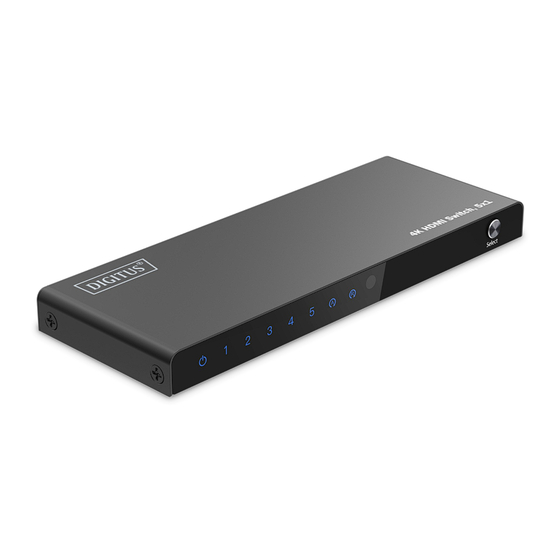

- Page 1 4K HDMI Switch, 5x1 Quick Installation Guide DS-55332...
-
Page 2: Main Features
1. Introduction The DIGITUS® 4K HDMI Switch, 5x1 offers additional HDMI connections for your output display - 5 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter. -
Page 3: Technical Features
4. Technical Features Specs Description Video Inputs 5x HDMI Video Output 1x HDMI 50/60Hz Vertical Frequency Range Video Bandwidth 6.0 Gbps / 600MHz per channel, 18 Gbps all channels Interlaced Resolutions 480i, 576i, 1080i Progressive Resolutions 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4k@50/60Hz Operating Temperature 0℃... -
Page 4: Panel Description
5. Panel Description 1. Power: Pressing to turn on/off the switcher 2. 1-5: Pressing the number to select the input source accordingly... - Page 5 DC/5V: IR Mode LED Indicator: DC 5V Input via Micro USB port ON: IR receiver mode activated OFF: IR function de-activated OUTPUT: HDMI Output 10. IR: IR signal receiver port INPUT 1-5: HDMI Input 11. Select button: Power LED Indicator: Short press to change the - Red LED indicates: input channel;...
-
Page 6: Connection Diagram
6. Connection Diagram... -
Page 7: Troubleshooting
7. Troubleshooting Problems Roots Solutions Power light is off and No power supply Please connect the micro product is not working connected USB cable and connect it to the signal source or, if necessary, to a USB charging adapter via a socket No signal output on The HDMI cable may...
