- Page 1 8K HDMI Switch, 3x1 Quick Installation Guide DS-55333...
-
Page 2: Main Features

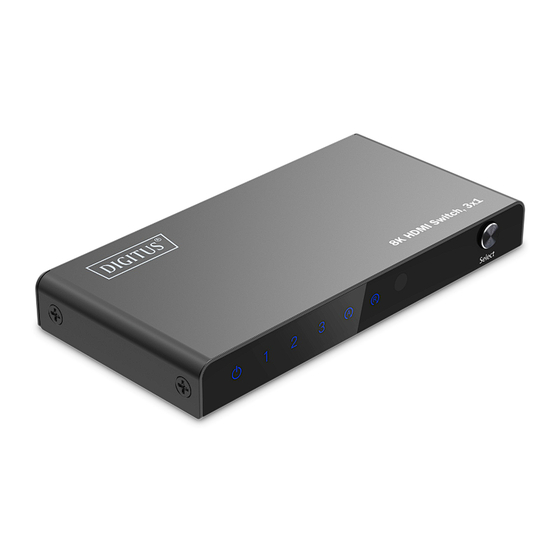

1. Introduction The DIGITUS® 8K HDMI Switch, 3x1 offers additional HDMI connections for your output display - 3 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the USB-C cable, e.g. via the source device or a USB charging adapter. -
Page 3: Technical Features
4. Technical Features Specs Description Video Inputs 3x HDMI Video Outputs 1x HDMI 50/60/100/120/240 Hz Vertical Frequency Range Video Bandwidth 12Gbps/ 1200MHz per channel (48Gbps all channels) Interlaced Resolutions 480i, 576i, 1080i Progressive Resolutions 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz Operating Temperature 0℃... - Page 4 5. Overview 1. Power: Pressing to turn on/off the switcher 2. 1-3: Pressing the number to select the input source accordingly 3. IR: Pressing to turn on/off the IR receiver function if the switcher IR mode LED indicator, on is in normal IR receiver mode, off is in no IR function mode.
- Page 5 DC/5V: 11. IR Mode LED Indicator: DC 5V Input via USB-C port ON: IR receiver mode activated OFF: IR function is de-activated OUTPUT: HDMI Output 12. IR: IR signal receiver port INPUT1-3: HDMI Input 13. Select button: Power LED Indicator: Short press to change the - Red LED indicates: input channel;...
-
Page 6: Connection Diagram
6. Connection Diagram... -
Page 7: Troubleshooting
7. Troubleshooting The power indicator is off and the product is not working. How can I fix this? A: Please check the following points first: 1. Make sure the HDMI input device of your device is properly connected and turn it on. 2.
