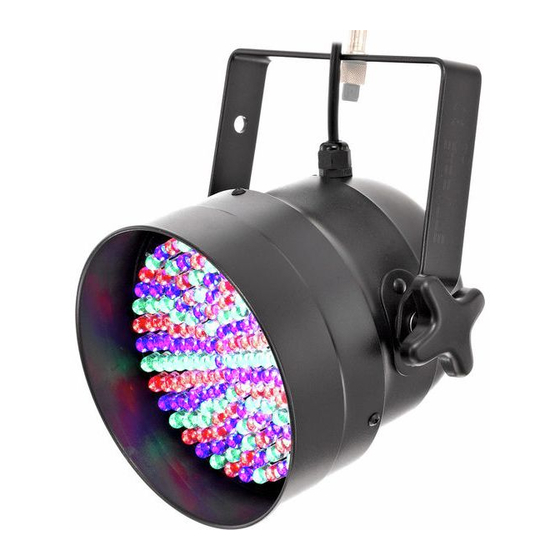

LED PAR Can 10mm
User Manual / Instructions

1. Sound Action Mode

Set dipswitch 12 to ON. The LED PAR is controlled by music
beat. With every music beat another color is shown. Sensitivity
may be adjusted with the potentiometer.

2. Mix Color Mode

Set dipswitch 11 and 12 to ON. The LED PAR is in fading mode.
Set dipswitch 1 to ON, the fading time is 2,5s.
The Fade-Time is set by dipswitches 1 to 9. The time is added.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED PAR Can 10mm and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville LED PAR Can 10mm

Summary of Contents for Stairville LED PAR Can 10mm

  • Page 1 LED PAR Can 10mm User Manual / Instructions 1. Sound Action Mode Set dipswitch 12 to ON. The LED PAR is controlled by music beat. With every music beat another color is shown. Sensitivity may be adjusted with the potentiometer.

  • Page 2: Manual Mode

    LED PAR Can 10mm 3. Manual Mode Set dipswitch 10, 11 and 12 to ON, the unit is in manual mode. In manual mode, the colour brightness may be set according to this table: 4. DMX Mode Set dipswitch 10, 11, and 12 to OFF. The unit is in DMX mode and may be controlled by any DMX controller.
  • Page 3 LED PAR Can 10mm The channel usage is according to this table: all Copyrights by: Musikhaus Thomann Treppendorf 30 GER- 96138 Burgebrach Tel.: +49/9546/9223-0 info@thomann.de www.thomann.de...
