  • Page 1 CLB5 Compact LED Bar RGBW / RGBWW LED lighting set user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 02.02.2018, ID: 419593, 419587...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................10 Features............................... 15 Installation..............................16 Starting up..............................20 Connections and controls........................23 Operating..............................31 7.1 Starting the device........................... 31 7.2 Main menu............................
  • Page 4 Table of contents 7.6 Functions in 16-channel DMX mode..................43 7.7 Functions in 18-channel DMX mode..................45 7.8 Functions in 20-channel DMX mode..................47 7.9 Reset to factory defaults........................ 53 Technical specifications........................54 Plug and connection assignments....................55 Cleaning............................... 56 Protecting the environment......................

  • Page 5: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 8: Symbols And Signal Words

    General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con- ditions is considered to be improper and may result in personal injury or property damage.
  • Page 11 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro- tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis- tered electrician.
  • Page 13 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 15: Features

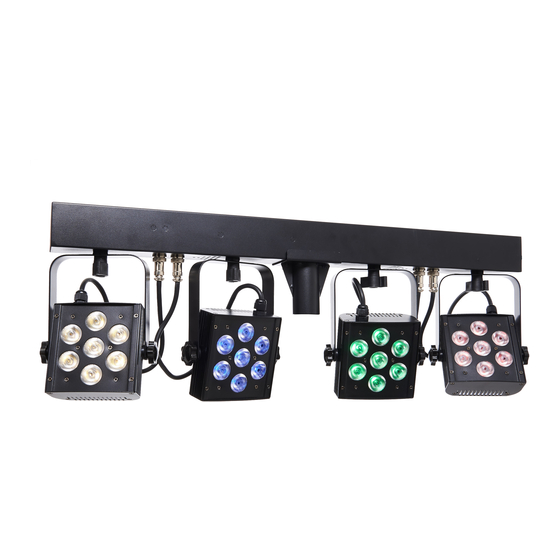

    LED spots with each seven 4-in-1 LEDs, 4 W each, pre-mounted on T-bar – Stairville CLB5 RGBW Compact LED Bar 5 (item no. 419593): Red, green, blue, cold white –...

  • Page 16: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi-...
  • Page 18 Installation Pre-mounted spots The four spots are pre-mounted on the T-bar. Locking screw for fixing the inclination angle. Locking screw for fixing the spots on the T-bar and the horizontal orientation (dispersion direction). Electrical connection of the spot at the T-bar (pre-mounted). LED lighting set...
  • Page 19 Installation 1/4" phone socket to connect a foot controller. Flange 36 mm to attach the T-bar on a tripod. CLB5 Compact LED BarRGBW / RGBWW...

  • Page 20: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED lighting set...
  • Page 21 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 22 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 23: Connections And Controls

    Connections and controls Connections and controls 1 [Power In] IEC chassis plug for power supply with fuse holder. 2 Infrared sensor for the remote control signals. 3 Display and function buttons. CLB5 Compact LED BarRGBW / RGBWW...
  • Page 24 Connections and controls [Mode] Activates the main menu and toggles between menu items. Closes an opened submenu. [Setup] Selects an option of the respective operating mode, confirms the set value. [Up] Increases the displayed value by one. [Down] Decreases the displayed value by one. 4 [DMX In] DMX input.
  • Page 25 Connections and controls 6 [Foot switch Input] 1/4" phone socket to connect a foot controller. 7 [Power Out] IEC chassis sockets for the power supply of further devices. CLB5 Compact LED BarRGBW / RGBWW...
  • Page 26 Connections and controls Foot switch unit (optionally available) LED lighting set...
  • Page 27 Connections and controls 10 [Auto Run/Program] Activates the automatic mode (playback of preprogrammed automatic shows). 11 [Sound Active] Activates the sound-controlled mode (playback of sound-controlled automatic shows). 12 [Freeze] Pauses the running show and resumes it after a break. 13 [Blackout] Blackouts all LEDs and turns them back on again.
  • Page 28 Connections and controls Infrared remote (optionally available) LED lighting set...
  • Page 29 Connections and controls 14 [AUTO] Activates the Automatic mode. 15 [PRG] Activates the operating mode ‘Preprogrammed automatic show’. Select the desired programme with [+] and [–]. 16 [ON/OFF] Activates / deactivates the device. 17 [SPEED] Activates the setting mode for the programme speed. Adjust the speed using [+] and [–] . 18 [SOUND] Activates the Sound-controlled mode.
  • Page 30 Connections and controls 21 [–] Decreases the set value. 22 [Dimming] Activates the dimming function for basic colours. Set the value for each basic colour using [+] and [–] . 23 [0 … 9] Numeric buttons for direct selection of a basic colour. 24 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode.

  • Page 31: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options.
  • Page 32 Operating Operating mode ‘Automatic’ Automatic operation can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con- trolled via DMX. Press [Mode] repeatedly until the display shows ‘AUTO’...
  • Page 33 Operating Operating mode ‘Preprog- A preprogrammed automatic show can only be activated when the unit is operating in stand- rammed automatic show’ alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 34 Operating Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SLAv’ and confirm with [Setup]. LED lighting set...
  • Page 35 Operating DMX mode This setting is only relevant when the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘d.xxx’ . Press [Setup]. Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d.001’...
  • Page 36 Operating ‘4-ch’ (four channels) ‘8-ch’ (eight channels) ‘16ch’ (sixteen channels) ‘18ch’ (eighteen channels) ‘20ch’ (twenty channels) Sound control A sound-controlled show can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 37 Operating Constant unicoloured pattern A constant unicoloured pattern can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘Colr’...
  • Page 38 Operating Dimmer curve Press [Mode] repeatedly until the display shows ‘Set’ . Press [Setup]. Use [Up] | [Down] to select the menu item ‘Cu.SE’ and confirm with [Setup]. With [Up] | [Down] you can select one of the following dimmer curves. The dimmer curve determines how the brightness increases or decreases depending on the set DMX value.
  • Page 39 Operating Dimmer speed Press [Mode] repeatedly until the display shows ‘Set’ . Press [Setup]. Use [Up] | [Down] to select the menu item ‘di.SP’ and confirm with [Setup]. With [Up] and [Down] you can choose the response speed of the dimmer between ‘FASt’ (fast) and ‘SLOW’...
  • Page 40 Operating Behaviour on DMX failure Press [Mode] repeatedly until the display shows ‘Set’ . [Setup]. Use [Up] | [Down] to select the menu item ‘FAIL’ and confirm with [Setup]. With [Up] | [Down] you can choose how the device behaves in case of a disturbed DMX transmission: ‘HoLd’ (the current state is retained) and ‘- OFF’...

  • Page 41: Menu Overview

    Operating 7.3 Menu overview CLB5 Compact LED BarRGBW / RGBWW...

  • Page 42: Functions In 4-Channel Dmx Mode

    Operating 7.4 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %), for all LEDs together 0…255 Intensity green (0 % to 100 %), for all LEDs together 0…255 Intensity blue (0 % to 100 %), for all LEDs together 0…255 Intensity white (0 % to 100 %), for all LEDs 7.5 Functions in 8-channel DMX mode...

  • Page 43: Functions In 16-Channel Dmx Mode

    Operating Channel Value Function 0…255 Intensity white (0 % to 100 %) for all LEDs spot 1 and 2 0…255 Intensity red (0 % to 100 %) for all LEDs spot 3 and 4 0…255 Intensity green (0 % to 100 %) for all LEDs spot 3 and 4 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 3 and 4 0…255...
  • Page 44 Operating Channel Value Function 0…255 Intensity white (0 % to 100 %) for all LEDs spot 1 0…255 Intensity red (0 % to 100 %) for all LEDs spot 2 0…255 Intensity green (0 % to 100 %) for all LEDs spot 2 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 2 0…255...

  • Page 45: Functions In 18-Channel Dmx Mode

    Operating 7.7 Functions in 18-channel DMX mode Channel Value Function 0…255 Dimmer (0 % bis 100 %) 0…255 Intensity red (0 % to 100 %) for all LEDs spot 1 0…255 Intensity green (0 % to 100 %) for all LEDs spot 1 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 1 0…255...
  • Page 46 Operating Channel Value Function 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 3 0…255 Intensity white (0 % to 100 %) for all LEDs spot 3 0…255 Intensity red (0 % to 100 %) for all LEDs spot 4 0…255 Intensity green (0 % to 100 %) for all LEDs spot 4 0…255...

  • Page 47: Functions In 20-Channel Dmx Mode

    Operating 7.8 Functions in 20-channel DMX mode Channel Value Function 0…255 Dimmer (0 % bis 100 %) 0…255 Intensity red (0 % to 100 %) for all LEDs spot 1 0…255 Intensity green (0 % to 100 %) for all LEDs spot 1 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 1 0…255...
  • Page 48 Operating Channel Value Function 0…255 Intensity blue (0 % to 100 %) for all LEDs spot 3 0…255 Intensity white (0 % to 100 %) for all LEDs spot 3 0…255 Intensity red (0 % to 100 %) for all LEDs spot 4 0…255 Intensity green (0 % to 100 %) for all LEDs spot 4 0…255...
  • Page 49 Operating Channel Value Function 36…41 Preprogrammed automatic show 07 42…47 Preprogrammed automatic show 08 48…53 Preprogrammed automatic show 09 54…59 Preprogrammed automatic show 10 60…65 Preprogrammed automatic show 11 66…71 Preprogrammed automatic show 12 72…77 Preprogrammed automatic show 13 78…83 Preprogrammed automatic show 14 (‘Carnival in Rio’) 84…89 Preprogrammed automatic show 15...
  • Page 50 Operating Channel Value Function 114…119 Preprogrammed automatic show 20 120…125 Preprogrammed automatic show 21 126…131 Preprogrammed automatic show 22 132…137 Preprogrammed automatic show 23 138…143 Preprogrammed automatic show 24 144…149 Preprogrammed automatic show 25 150…155 Preprogrammed automatic show 26 156…161 Preprogrammed automatic show 27 162…167 Preprogrammed automatic show 28...
  • Page 51 Operating Channel Value Function 192…197 Preprogrammed automatic show 33 (‘Ice Time’) 198…203 Preprogrammed automatic show 34 (‘Old School’) 204…209 Preprogrammed automatic show 35 (‘Pink Panther’) 210…215 Preprogrammed automatic show 36 (‘Rainbow’) 216…221 Preprogrammed automatic show 37 (‘Reggae’) 222…227 Preprogrammed automatic show 38 (‘Techno Time’) 228…255 Sound-controlled show Function depending on setting of channel 18...
  • Page 52 Operating Channel Value Function 64…79 R: 0; G: 0; B: 0; W: 255; 80…95 R: 255; G: 150; B: 0; W: 0; 96…111 R: 255; G: 180; B: 0; W: 0; 112…127 R: 255; G: 255; B: 0; W: 0; 128…143 R: 255;...

  • Page 53: Reset To Factory Defaults

    Operating Channel Value Function 0…255 Programme speed Pr.02…Pr.38 Channel 18 = 228…255 0…255 Sound-controlled operation SO.01…SO.37 Strobe effect 0…4 No function 5…255 Stroboscope effect (0 % to 100 %) 7.9 Reset to factory defaults Proceed as follows to reset the device to factory defaults: Switch off the device.

  • Page 54: Technical Specifications

    Technical specifications Technical specifications CLB5 RGBW Compact LED Bar 5 CLB5 RGB WW Compact LED Bar 5 Item no. 419593 419587 Illuminant 28 × RGBW-LEDs, each 4 W 28 × RGBWW-LEDs, each 4 W Number of DMX 4, 8, 16, 18, or 20 channels, depending on operating mode...

  • Page 55: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip- ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 56: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 57: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate- rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery.
  • Page 58 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose this device through an approved waste disposal firm or through your local waste facility.
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
