Summary of Contents for Stairville LED Bar 240/8 RGB

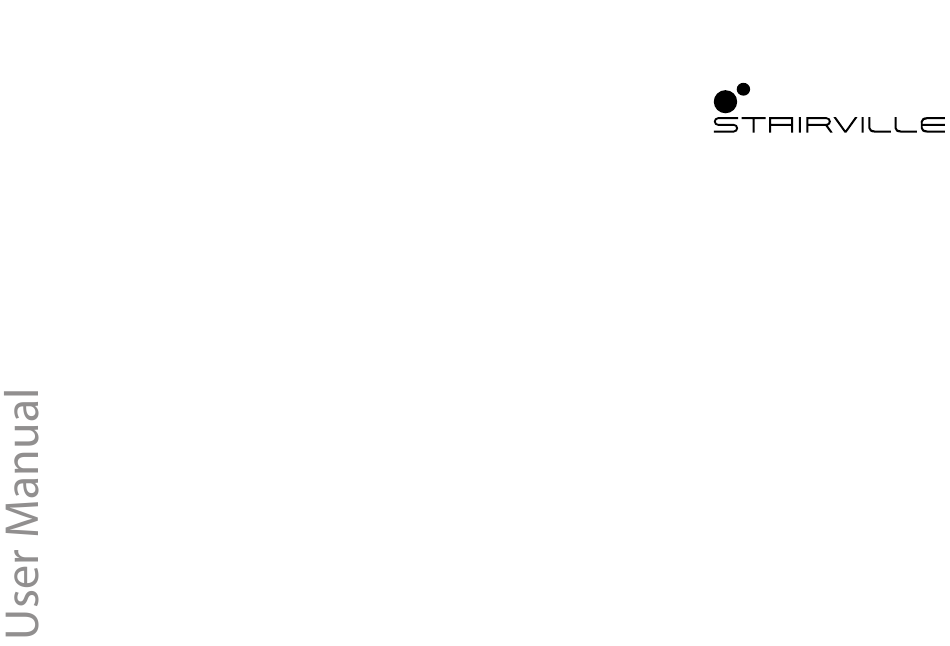

  • Page 1 LED Bar 240/8 RGB LED Floodlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.01.2023, ID: 294835, 512674 (V7)

  • Page 3: Table Of Contents

    7.3 Menu overview..........................33 7.4 Functions in 2-channel DMX mode................... 35 7.5 Functions in 3-channel DMX mode................... 36 7.6 Functions in 5-channel DMX mode................... 37 7.7 Functions in 24-channel DMX mode..................37 Technical specifications........................40 LED Bar 240/8 RGB LED Floodlight...
  • Page 4 Table of contents Plug and connection assignments....................42 Troubleshooting............................43 Cleaning............................... 45 Protecting the environment......................46 LED Bar 240/8 RGB LED Floodlight...
  • Page 5 LED Bar 240/8 RGB LED Floodlight...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. LED Bar 240/8 RGB LED Floodlight...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: LED Bar 240/8 RGB LED Floodlight...

  • Page 8: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. LED Bar 240/8 RGB LED Floodlight...
  • Page 9 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. LED Bar 240/8 RGB LED Floodlight...

  • Page 10: Safety Instructions

    Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. LED Bar 240/8 RGB LED Floodlight...
  • Page 11 Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. LED Bar 240/8 RGB LED Floodlight...
  • Page 12 Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. LED Bar 240/8 RGB LED Floodlight...
  • Page 13 NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. LED Bar 240/8 RGB LED Floodlight...

  • Page 14: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. LED Bar 240/8 RGB LED Floodlight...

  • Page 15: Installation

    NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). LED Bar 240/8 RGB LED Floodlight...
  • Page 16 Always work from a stable platform whenever installing, moving or servicing the device. In doing so, the area underneath the device must be cordoned off. The safety cable must be attached to both brackets. LED Bar 240/8 RGB LED Floodlight...
  • Page 17 Installation Please note that this device must not be connected to a dimmer. LED Bar 240/8 RGB LED Floodlight...
  • Page 18 Ensure that proper polarity is observed when inserting batteries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. LED Bar 240/8 RGB LED Floodlight...

  • Page 19: Starting Up

    Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). LED Bar 240/8 RGB LED Floodlight...
  • Page 20 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. LED Bar 240/8 RGB LED Floodlight...

  • Page 21: Connections And Operating Elements

    Connections and operating elements Connections and operating elements ö ö & LED Bar 240/8 RGB LED Floodlight...
  • Page 22 9 [Down] | navigates downwards in a menu list. Decreases the displayed value by one. 10 [DMX In] | DMX input 11 [DMX Out] | DMX output 12 [POWER Out] | IEC chassis socket for the power supply cable to the next unit LED Bar 240/8 RGB LED Floodlight...
  • Page 23 Infrared remote control (item no. 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö LED Bar 240/8 RGB LED Floodlight...
  • Page 24 9 [Dimming] | activates the dimming function for fixed colours. Set the value for each fixed colour using [+] and [–]. 10 [0 … 9] | numeric buttons for direct selection of a fixed colour. 11 [R], [G], [B], [A], [W] | buttons to select the colour shade in dimmer mode. LED Bar 240/8 RGB LED Floodlight...

  • Page 25: Operating

    If you don't press any button for about 30 seconds, the current setting is being applied and the display turns dark. The set values are retained as long as the unit is connected to the power supply. LED Bar 240/8 RGB LED Floodlight...
  • Page 26 Display Description ‘--r’ ‘-rg’ Red and green ‘--g’ Green ‘-gb’ Green and blue ‘--b’ Blue ‘-rb’ Red and blue ‘rgb’ Red, green and blue ‘ OFF’ LEDs off LED Bar 240/8 RGB LED Floodlight...
  • Page 27 ‘Fdxx’ . With [Up] and [Down] you can now select a value between ‘Fd00’ (slow) and ‘Fd99’ (fast). Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...
  • Page 28 ‘Fdxx’ . With [Up] and [Down] you can now select a value between ‘Fd00’ (slow) and ‘Fd99’ (fast). Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...
  • Page 29 Highest possible DMX address 2-channel 3-channel 5-channel 24-channel Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...
  • Page 30 Press [Mode] repeatedly until the display shows ‘SLAv’ . Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...
  • Page 31 [Down] to select a value between 0 (low sensitivity) and 31 (high sensitivity), the display shows ‘SU00’ … ‘SU31’ . Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...
  • Page 32 [Down] you can now select a value between ‘FS00’ (slow) and ‘FS99’ (fast). Wait for about 30 seconds until the display turns dark. Then the settings have been applied. Press [Mode] to return to the parent menu without any changes. LED Bar 240/8 RGB LED Floodlight...

  • Page 33: Menu Overview

    Operating 7.3 Menu overview Auro d001 SLAu SU00 CoLr n001 SP01 FS00 Fd00 d512 2-ch SU31 I__r F500 n100 SP99 FS99 Fd99 3-ch 2-r9 F599 SPFL 5-ch 3--9 24ch 4-9b 5--b 6-rb 7r9b LED Bar 240/8 RGB LED Floodlight...
  • Page 34 Operating Pr01 Pr19 SP01 FS00 Fd00 SP99 FS99 Fd99 SPFL Pr20 SP01 FS00 Fd00 I__r 2__r Pr21 SP99 FS99 Fd99 1-r9 2-r9 1--9 2--9 SPFL 1-9b 2-9b 1r9b 2r9b LED Bar 240/8 RGB LED Floodlight...

  • Page 35: Functions In 2-Channel Dmx Mode

    Constant unicoloured pattern in blue and red 56…63 Constant unicoloured pattern in red, green and blue 64…231 Preprogrammed automatic shows 232…255 Sound-controlled shows Function depends on settings in channel 1 Channel 1 = 0…63 No function Channel 1 = 64…231 LED Bar 240/8 RGB LED Floodlight...

  • Page 36: Functions In 3-Channel Dmx Mode

    Intensity (0 % to 100 %) of the 96 red LEDs 0…255 Intensity (0 % to 100 %) of the 72 green LEDs 0…255 Intensity (0 % to 100 %) of the 72 blue LEDs LED Bar 240/8 RGB LED Floodlight...

  • Page 37: Functions In 5-Channel Dmx Mode

    Intensity (0 % to 100 %) of the blue LEDs in the 1. segment 0…255 Intensity (0 % to 100 %) of the red LEDs in the 2. segment 0…255 Intensity (0 % to 100 %) of the green LEDs in the 2. segment LED Bar 240/8 RGB LED Floodlight...
  • Page 38 Intensity (0 % to 100 %) of the red LEDs in the 7. segment 0…255 Intensity (0 % to 100 %) of the green LEDs in the 7. segment 0…255 Intensity (0 % to 100 %) of the blue LEDs in the 7. segment LED Bar 240/8 RGB LED Floodlight...
  • Page 39 Intensity (0 % to 100 %) of the red LEDs in the 8. segment 0…255 Intensity (0 % to 100 %) of the green LEDs in the 8. segment 0…255 Intensity (0 % to 100 %) of the blue LEDs in the 8. segment LED Bar 240/8 RGB LED Floodlight...

  • Page 40: Technical Specifications

    Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow Battery of the remote control Lithium-ions button cell CR2025, 3 V Degree of protection IP20 LED Bar 240/8 RGB LED Floodlight...
  • Page 41 20 %…80 % (non-condensing) Further information Suitable for outdoor use Colour mixture LED type Uni-coloured Fanless Remote control Optionally available (item no. 354223) Wireless DMX Housing colour black (item no. 294835) white (item no. 512674) LED Bar 240/8 RGB LED Floodlight...

  • Page 42: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) LED Bar 240/8 RGB LED Floodlight...

  • Page 43: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED Bar 240/8 RGB LED Floodlight...
  • Page 44 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED Bar 240/8 RGB LED Floodlight...

  • Page 45: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. LED Bar 240/8 RGB LED Floodlight...

  • Page 46: Protecting The Environment

    Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. LED Bar 240/8 RGB LED Floodlight...
  • Page 47 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. LED Bar 240/8 RGB LED Floodlight...
  • Page 48 Notes LED Bar 240/8 RGB LED Floodlight...
  • Page 49 Notes LED Bar 240/8 RGB LED Floodlight...
  • Page 50 Notes LED Bar 240/8 RGB LED Floodlight...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
