DVC7K-H Digital Valve Controller
May 2024
Table 1. Electrical and Pneumatic Configurations
Imperial
Metric
Metric/Imperial

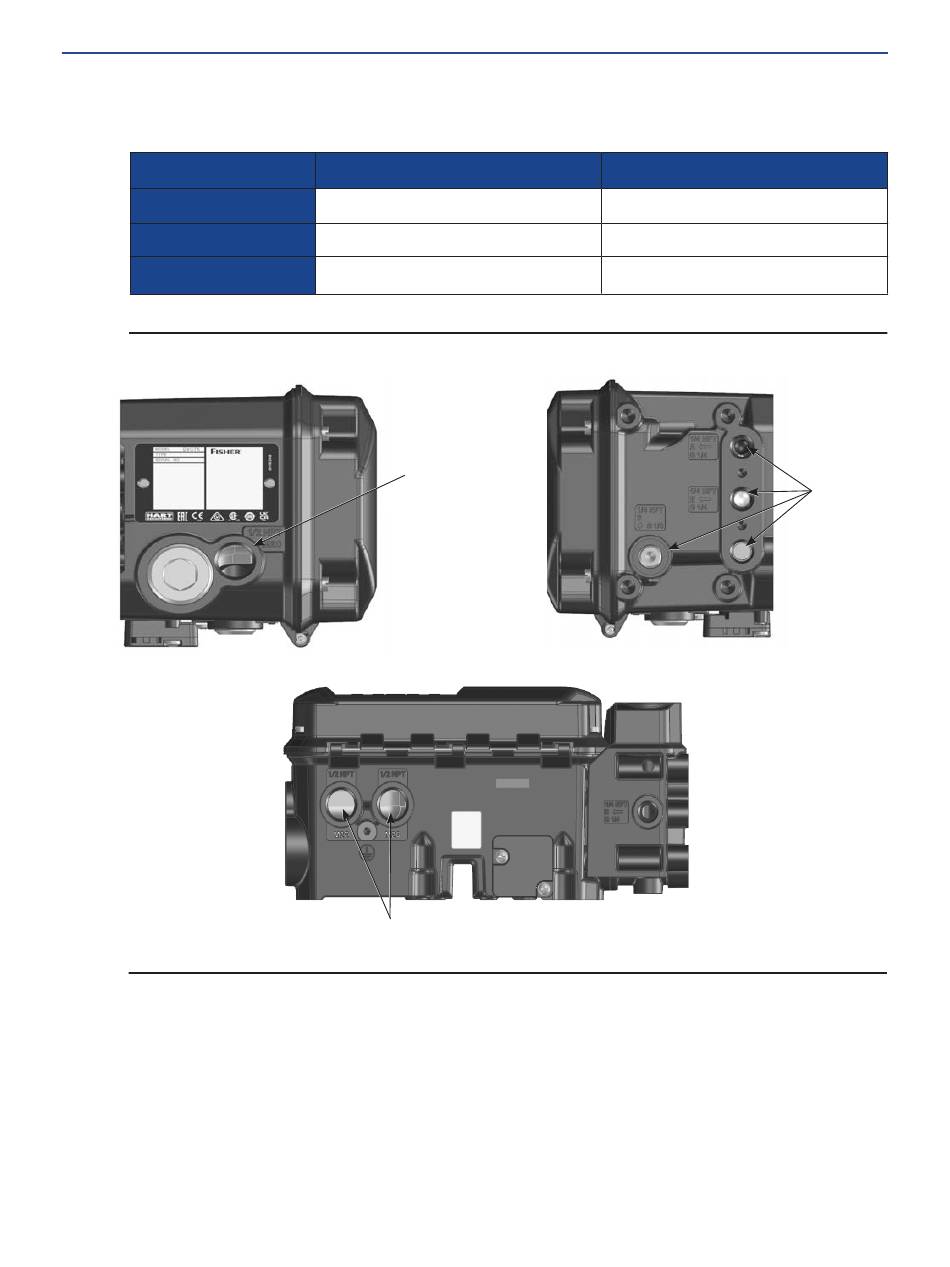

Figure 2. Electrical and Pneumatic Configuration

3.2 Valve/Actuator Mounting

If ordered as part of a control valve assembly, the factory will mount the digital valve controller
on the actuator and calibrate the instrument. If you purchased the digital valve controller
separately, you will need a mounting kit. The following procedures are general guidelines. See
the instructions that come with the mounting kit for detailed information on mounting the
digital valve controller to a specific actuator model.
4
Electrical Conduit Entry Size
1/2 NPT
M20
M20
LEFT ELECTRICAL
CONDUIT ENTRY
BOTTOM LEFT AND RIGHT
ELECTRICAL CONDUIT ENTRY
Quick Start Guide
D104766X012
Pneumatic Port Size
1/4 NPT
G1/4
1/4 NPT
PNEUMATIC
CONDUIT
ENTRIES
