DVC7K-H Digital Valve Controller
May 2024

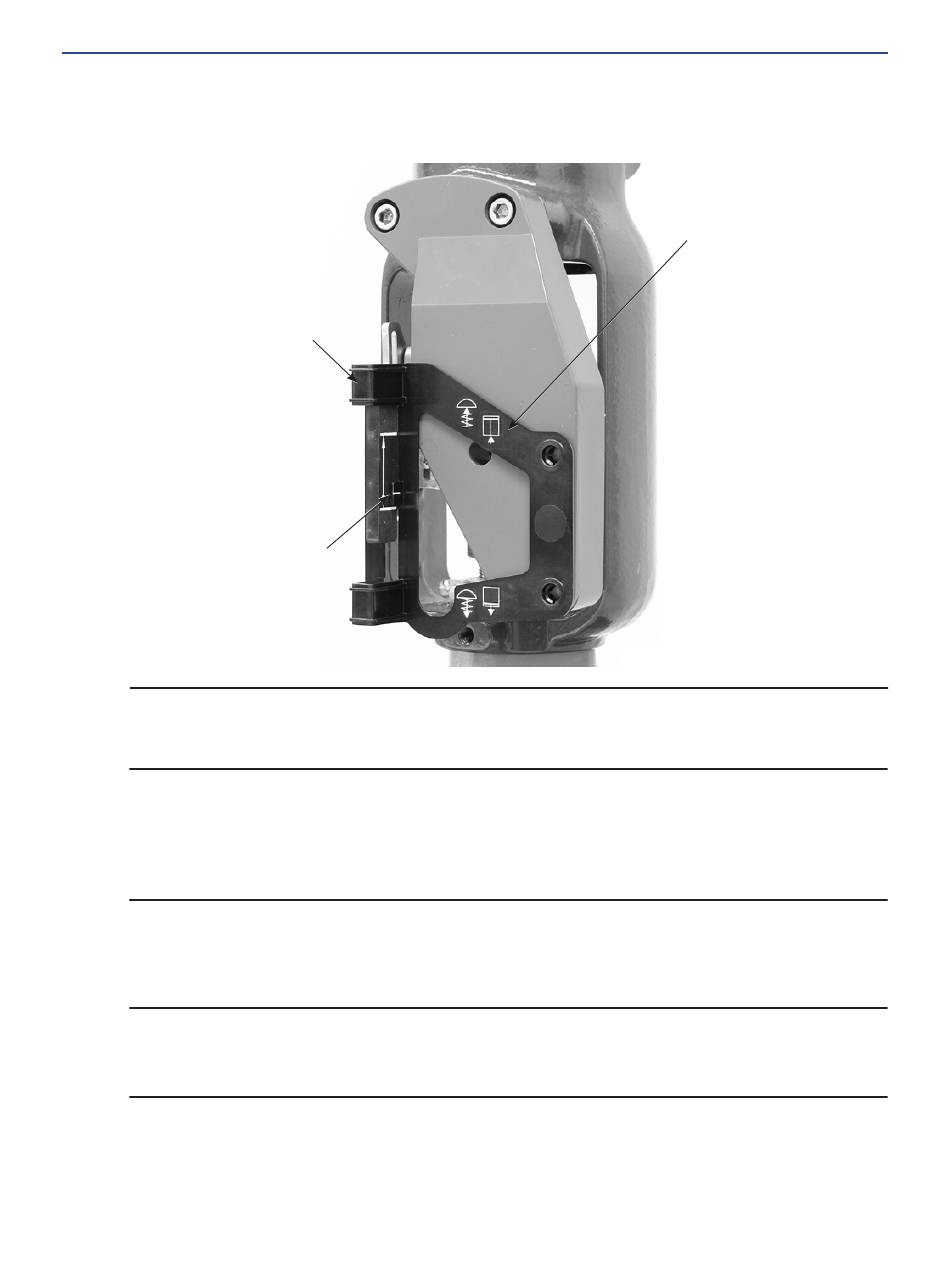

Figure 5. Air‐to‐Close Magnet Assembly Alignment
INDEX MARK
W9719
6. Tighten the fasteners and remove the alignment template.
NOTE
Use a flat end hex key to tighten the magnet assembly fasteners to a torque of
2.37 N•m / 21 lbf•in for 4 mm screws and 5.08 N•m / 45 lbf•in for 5 mm screws. For added
security, especially in vibrating services, blue (medium) threadlocker may be used on
the fasteners.
7. Mount the digital valve controller to the mounting bracket, using the mounting bolts.
8. Check for clearance between the magnet assembly and the DVC7K feedback slot.
NOTE
Ensure that there is clearance between the magnet assembly and the DVC7K housing slot
throughout the full range of travel.
9. Proceed to Section 4, Connect the Pneumatic Tubing on page 19.
8
RETAINING
SLOT
Quick Start Guide
D104766X012
ALIGNMENT
TEMPLATE
