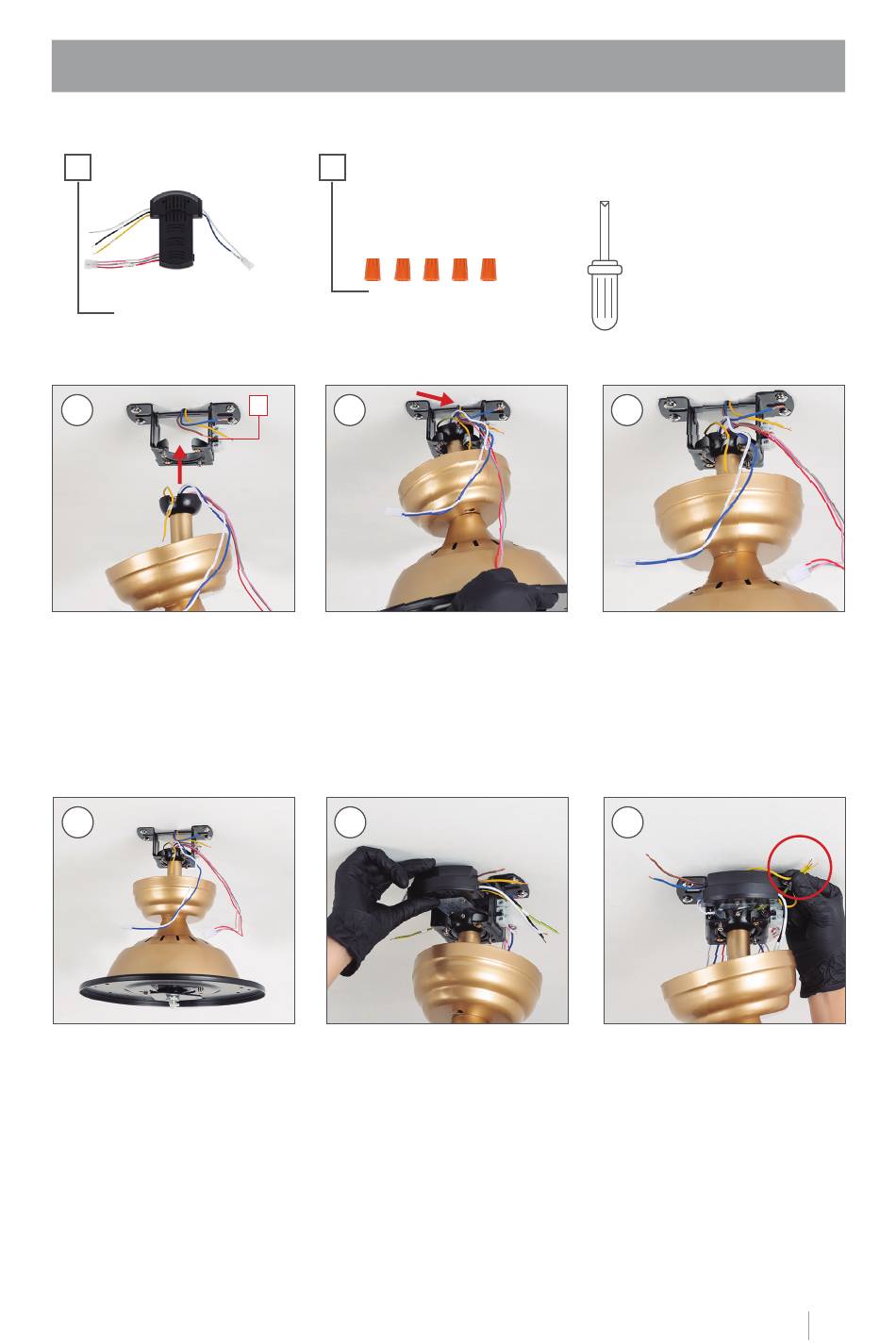

Step 3. Driver Connection - Create Wind Flat Assembly Manual

B
DRIVER
1
Place the tilt support in the
slot of piece L.
4
Before continuing, check
that the center frame is
securely positioned so
that it does not fall.

STEP 3. DRIVER CONNECTION

P
+
WIRE CONNECTORS
L 2
Remember to put the notch of the black top of the tilt support
backwards so that the piece fits properly.
5
Once the wires are connec-
ted, insert piece B inside
piece L, as shown in the
image.
+
3
6
Select and connect all the
grounding wires together,
including the one from your
own house wiring.
13
ENGLISH
