IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE!

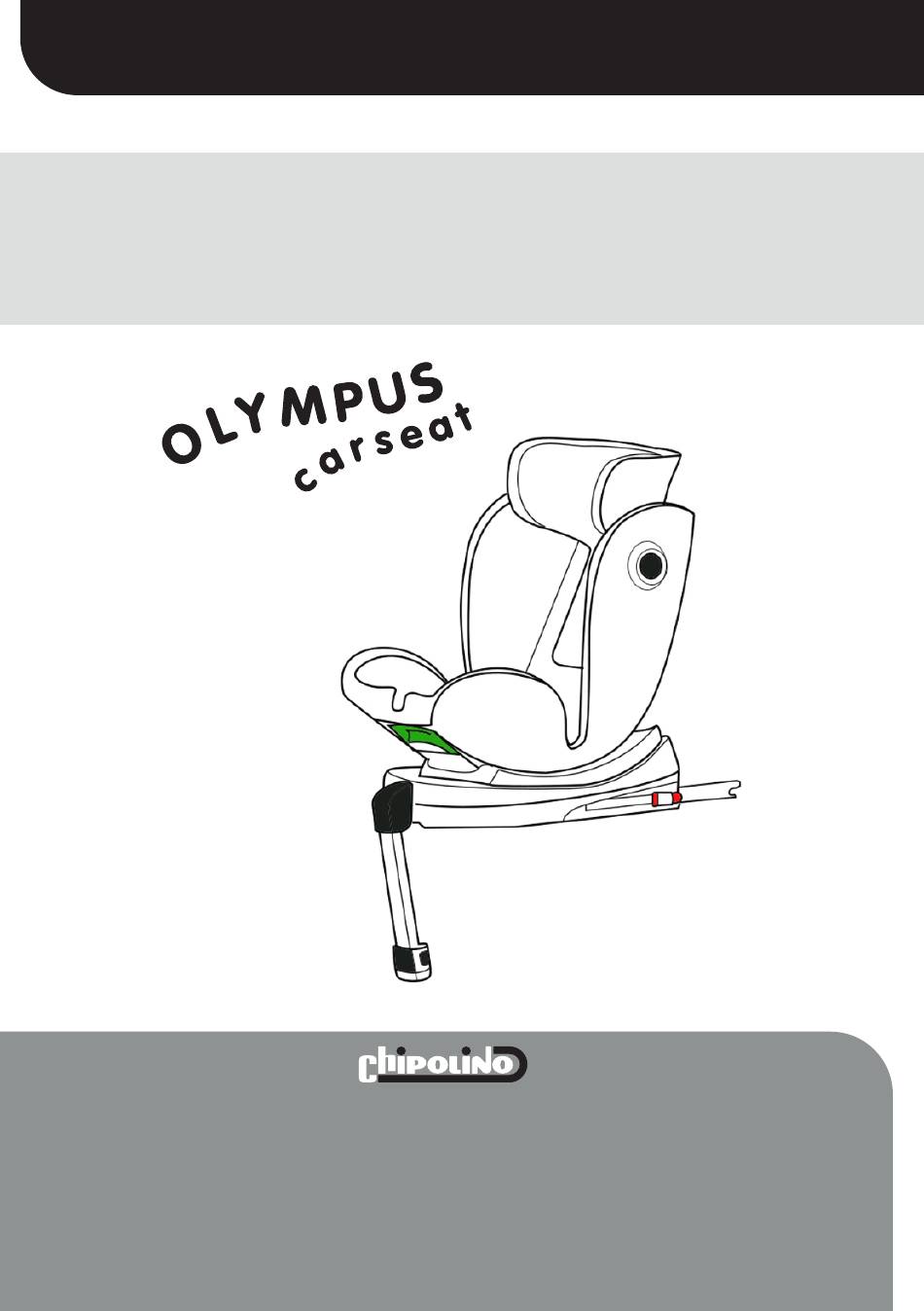

INSTRUCTION MANUAL FOR
USE OF CHILD RESTRAINT SYSTEM
„OLYMPUS"
This child restraint system
is manufactured in compliance
with the requirements of Regulation No 129 of the Economic Commission
for Europe of the United Nations (UN/ECE) — Uniform provisions concerning
the approval of enhanced Child Restraint Systems used on board of motor
vehicles (ECRS), the provisions of the Product safety Directive 2001/95/
EU of the European Parliament and The Council as well as the Consumer
Protection Law of Bulgarian Legislation.
Advertisement
Table of Contents
Related Manuals for Chipolino OLYMPUS
Summary of Contents for Chipolino OLYMPUS
- Page 1 IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE! INSTRUCTION MANUAL FOR USE OF CHILD RESTRAINT SYSTEM „OLYMPUS” This child restraint system is manufactured in compliance with the requirements of Regulation No 129 of the Economic Commission for Europe of the United Nations (UN/ECE) — Uniform provisions concerning...
- Page 2 Child restrained system „OLYMPUS” is suitable for children with height 40-150 cm and approximate age 0-12 years: I-Size universal ISOFIX: 40-105 cm / ≤18 kg. I-Size booster seat: 100-150 cm Position of Installation way Height of the child Approved category...
- Page 3 CAUTION ! 1. NEVER INSTALL THE CAR SEAT IN “FORWARD FACING” POSITION BEFORE THE CHILD’S AGE EXCEEDS 15 MONTHS! 2. NEVER INSTALL AND USE THE RESTRAINT SYSTEM IN POSITION “REARWARD” FACING ON A VEHICLE SEAT EQUIPPED WITH ACTIVATED AIR BAG! THIS MAY RESULT IN DEATH OR SERIOUS INJURIES! 3.
- Page 4 МЕСТА ЗА МОНТИРАНЕ НА СТОЛЧЕТО В АВТОМОБИЛА Suitable place for installation of the car seat. Unsuitable place for installation of the car seat. Car seat must not be installed on vehicle seat equipped with activated air bag. Car seat is suitable only for seats, equipped with 3-point safety belt. CAUTION! WARNINGS! ...
- Page 5 The hard parts and the parts of the child restraint made of plastic should be located and installed so that when the vehicle is in normal use, they can not be trapped by a sliding seat or in a door of the vehicle.
-
Page 6: Product Features
PRODUCT FEATURES This is child restrained system is suitable for children with height 40-150 cm, approximate age 0-12 years. The child restraint rotates 360 degrees on the base; Backrest recline; Headrest height adjustment; 5-point safety harness on the restraint; ... - Page 7 INSTRUCTIONS FOR USE OF THE CHILD RESTRAINT SYSTEM IMPORTANT! • Follow exactly the instructions and sequence of installation steps and use of the product described in the text and figures of this manual. • Check the security of fixing after each operation! ALWAYS CHECK THE SECURITY OF FIXING OF THE SAFETY BELTS! •...
- Page 8 USE OF SUPPORT LEG 1. Press slightly the support leg and rotate it forward, as shown in the figure. 2. Press the support leg release buttons (2) both sides and at the same time pull the support leg down, until it is pressed firmly against the vehicle floor. Note: Make sure the support leg is firmly in contact with the vehicle floor and there is no space between the bottom of the support leg and the vehicle floor.
- Page 9 IMPORTANT! NEVER INSERT ONLY ONE OF THE METAL ENDINGS IN THE BUCKLE. 5. You will hear “click“sound at locking. Make sure the belts are locked in the buckle by trying to pull them up. 6. Pull the adjusting strap (c), so the belts to snug well the child’s body without pressure or causing discomfort.
-
Page 10: Adjusting The Height Of The Headrest
Rotation of the seat CAUTION! THE SEAT CAN ROTATE ONLY WHEN THE SUPPORT LEG IS PULLED OUT AND DOWN POSITIONED! Pull out the rotation buttons from both sides (b) and turn the car seat. When fixing the selected position („FORWARD“, or “REARWARD“) you will hear “click“sound. CAUTION! ALWAYS CHECK BEFORE DRIVING IF THE SEAT IS FIXED IN POSITION “FORWARD”... - Page 11 INSTALLATION OF CAR SEAT “REARWARD” FACING For child’s height: 40-87cm ISOFIX +Support leg + 5-point harness of the car seat click Before placing the car seat on the vehicle seat, rotate the support leg forward, then place the car seat on the passenger seat, rotate the car seat to the “REARWARD”...
- Page 12 Before placing the car seat on the vehicle seat, rotate the support leg forward, then place the car seat on the passenger seat, rotate the car seat “FORWARD” facing position and adjust the recline to one of the “1,2 or 3” positions. 1.
- Page 13 click 1. Removal of 5-point harness of the car seat • Loosen the 5-point harness by pressing the release button (1) and pull the shoulder belts outward (2). • Remove the belts from the metal clips on the back of the backrest (3). •...
- Page 14 INSTALLATION OF CAR SEAT “FORWARD”FACING For child’s height: 100-150 cm 3-point safety vehicle belt click Remove the 5-point harness of the car seat. 3-1 – Before placing the car seat on the vehicle seat, rotate the seat to “FORWARD” facing position and adjust the recline to position „1“.
-
Page 15: Care And Maintenance
SIDE PROTECTION SYSTEM (SPS) The additional side protection SPS is designed so that in the event of side impact, it reduces the impact energy and reduces the shocks on the child’s neck and head. To use the additional side protection of the car seat (1), press the button (2), whereby item (1) will pop out. - Page 16 Bulgaria, Plovdiv, Str. Golyamokonarsko shosse № 1 www.chipolino.com...
