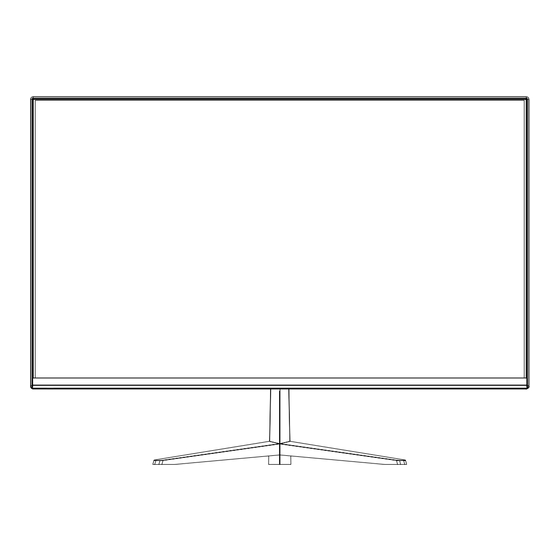

MISURA MONITOR 24" FLAT
USER MANUAL
ENGLISH
Model: P24EM24DFI01B – 120 Hz
178°
120
1080
IPS
1 ms
HDR
Hz
Full HD resolution
120 Hz refresh
High Dynamic
Ultra Wide
Super TFT
Moving Picture
FreeSync & G-Sync
Low Blue Eyes
1920×1080
frequency
Range
Viewing Angle
display
Response Time
Technology
Technology
Advertisement
Table of Contents
Related Manuals for MISURA P24EM24DFI01B
Summary of Contents for MISURA P24EM24DFI01B
- Page 1 MISURA MONITOR 24″ FLAT USER MANUAL ENGLISH Model: P24EM24DFI01B – 120 Hz 178° 1080 1 ms Full HD resolution 120 Hz refresh High Dynamic Ultra Wide Super TFT Moving Picture FreeSync & G-Sync Low Blue Eyes 1920×1080 frequency Range Viewing Angle...
- Page 2 MISURA. MISURA is not responsible for any errors or inaccuracies that may appear in this manual, including the products and software described in this manual.
-
Page 3: General Information
GENERAL INFORMATION Dear Customer, Thank you for purchasing this product. This document provides instructions for installing and utilizing and use the LED backlight LCD color monitor. Please read this manual thoroughly as it contains important information for safe and proper usage. Keep this manual at hand so that you can refer to it when needed. - Page 4 WARNINGS Power Only use the provided power unit to supply power to the device. Prior to plugging in the power unit, verify the mains rating. Avoid pulling the cable to unplug the device. Safety Precautions Keep the device away from rain and humidity to prevent risk of fire and ...
- Page 5 Avoid placing heavy or heat generating objects on top of the device as: this could damage the casing and/or increase internal temperature leading to faults. Do not cover the device with a cloth while it is running to prevent ...
-
Page 6: Monitor Inputs
MONITOR INPUTS 1 | Power ( 12V ) 3 | DP 2 | HDMI 4 | AUDIO OUT ACCESSORIES 1 | 23,8 inch Monitor 2 | Base 3 | HDMI Cable 4 | Power Adapter 5 | User Manual INITIAL SETUP Connecting the Monitor to a Power Outlet: 1 | Press the POWER button on the monitor or to turn it on (The indicator will... -
Page 7: Monitor Buttons
MONITOR BUTTONS Open the main OSD menu and select submenu Select signal source or Exit OSD Go up on the main OSD menu increase the value of a selected itemi Go down on the main OSD menu decrease the value of a selected item Turn the monitor ON or OFF... - Page 8 OSD MENU Luminance Luminance Brightness Contrast Eco Mode Standard OverdriveO BRIGHTNESS: Allows the adjustment of the image brightness, according to ambient light in the room. Value “0–100”. CONTRAST: Allows the adjustment of the image brightness, according to ambient light in the room. Value “0–100”. ECO MODE: Allows selection of image settings between the following: Standard/Internet/Game/Movie.
- Page 9 Color Setup Color Setup Color Temp. warm Green Blue LowBlue Mode COLOR TEMPERATURE: Allows adjustment of the color temperature between the following options: User/Cool/Normal/Warm. RED: Allows adjustment of the red element of the image. GREEN: Allows adjustment of the green element of the image. BLUE: Allows adjustment of the blue element of the image.
- Page 10 Reset Reset Auto Color Reset MPRT RESET: Returns the monitor to its factory default settings. MPRT: Allows the MPRT Mode to be turned ON and OFF. Extra Extra Input Select HDMI Mute Volume FreeSync Flicker Free 1920 X 1080 120Hz INPUT SELECT: Allows user to choose the signal source from “HDMI1, HDMI2 and DP”.
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION Model P24EM24DFI01B Screen Size 23.8" Panel type Backlight type Aspect Ratio 16:9 Brightness (typical) 300cd/m² Contrast ratio (typical) 1000:1 Resolution 1920 × 1080@120Hz Response time MPRT 1ms Viewing Angle 178º/178º (CR>10) Color Support 16.7 Million Colors (8bit) Video Signal... - Page 12 Manuál vo Slovenčine otvoríte tu Open the English manual from here Das Handbuch in Deutsch können Sie öffnen hier A magyar nyelvű kézikönyvet itt tudja megnyitni Odprite priročnik v slovenščini tukaj Aprire il manuale in italiano qui Otwórz instrukcję w języku polskim tutaj https://www.misura.shop/en/advisor/manual-download-p24em24dfi01b...
