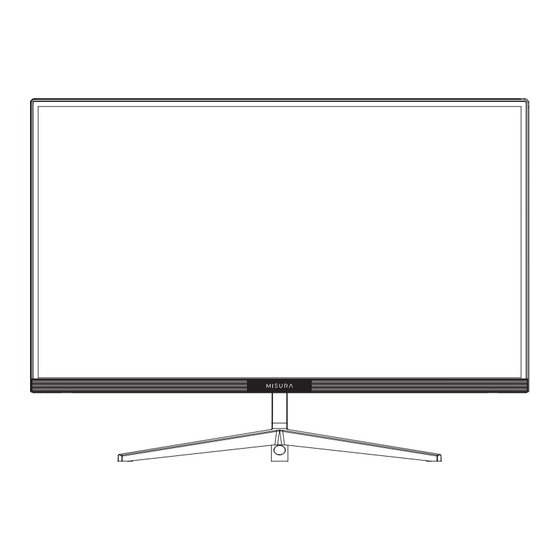

- Page 1 MISURA MONITOR 24″ CURVED USER MANUAL ENGLISH Model: P23MM24DFA01B – 200 Hz 178° 1080 1 ms Full HD resolution 200 Hz refresh High Dynamic Ultra Wide VA Flat Moving Picture FreeSync Low Blue Eyes 1920×1080 frequency Range Viewing Angle panel...
-
Page 2: General Information
GENERAL INFORMATION Dear Customer, Thank you for having purchased this product. This document describes how to install and use the LED backlit LCD color monitor. Read this manual which contains information for correct, safe use. Keep this manual at hand so that you can refer to it when needed. -
Page 3: Installation Precautions
WARNINGS Power Only use the power unit provided to power the device. Check mains rating before plugging the power unit in. Do not pull the cable to unplug the device. Safety precautions Keep the device away from rain and humidity to prevent risk of fire and ... - Page 4 Do not place heavy or heat generating objects on top of the device: this cou- ld damage the casing and/or increase internal temperature causing faults. Do not cover the device with a cloth while it is running to prevent defor- ...
-
Page 5: Monitor Inputs
MONITOR INPUTS 1 | HDMI port: Used to connect 3 | Audio Out: The Audio Onput Source 4 | DC input port: Connect a compatible device. Supports HDMI 2 | DP: Used to connect a compatible the supplied power supply DP device to power the monitor MONITOR CONTROL BUTTONS Right... -
Page 6: Monitor Button Function
How to use the monitor button 1. When the monitor displays nothing, the monitor button could be used as below. Monitor Button Action Press and hold for 3 seconds to power off Power / Enter Volume control shortcut button Left / Right Aspect ratio zoom shortcut button Cross Aiming Shortcut Button (During Gaming) Down... -
Page 7: Osd Menu Controls
OSD MENU CONTROLS Brightness Option Function Value Brightness It allows changing of image brightness, 0~100 according to ambient light. Contrast It allows changing of contrast between 0~100 white and black areas of the image. Black Level Adjust the black level mode 0~100 It means Dynamic Contras Ratio, provide Standard/Internet/... - Page 8 Image Option Function Value FreeSync Allows FreeSync to be turned ON/OFF MPRT Allows MPRT to be turned ON/OFF Extra Option Function Value Source Select Input HDMI and DP Mute Restore the factory settings ON/OFF Volume Allows adjustment of the volume 0~100 of the monitor from FlickFree...
- Page 9 OSD Setting Option Function Value Language Set the language of the OSD menu English, Chinese etc. OSD.H.Pos Move the menu position horizontally 0~100 OSD.V.Pos Move the menu position vertically 0~100 OSD Timer Adjust the standing time 5~100 of the menu Transparence Adjust the transparence of the menu 0~100 Reset...
- Page 10 Color Setting Option Function Value Color Temp Adjust color temperature 6500/7500/9300/User Adjust red color effect 0~100 Green Adjust green color effect 0~100 Blue Adjust blue color effect 0~100 Low blue light Adjust the Low blue light effect 0~100...
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION Model P23MM24DFA01B – 200 Hz Size 23.8” Panel Type 23.8” LED Backlight Monitor Brightness (Max) 300 cd/m Contrast Ratio 3000:1 (Typ.) Display Color 16.7 Million Colors Viewing Angle 178° (H) / 178° (V) Response Time 5 ms (GtG) Resolution 1920 ×... - Page 12 Manuál vo Slovenčine otvoríte tu / Open the English manual from here / Das Handbuch in Deutsch können Sie öffnen hier / A magyar nyelvű kézikönyvet itt tudja megnyitni / Odprite priročnik v slovenščini tukaj / Aprire il manuale in italiano qui / URL: www.misura.shop/en/advisor/manuals-for-download-office-monitor-24-75- hz-curved-p23mm24dfa01...
