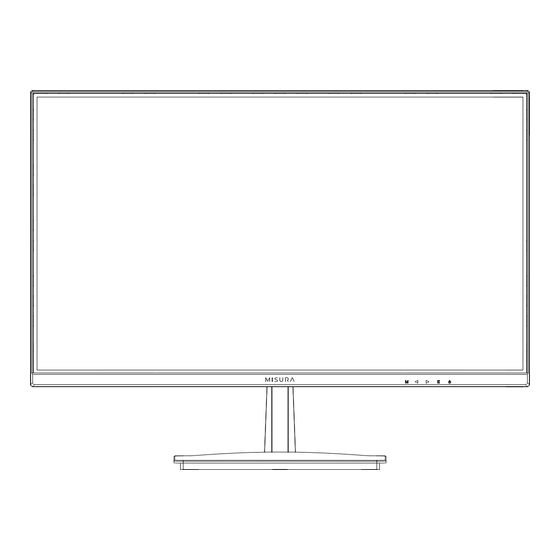

- Page 1 MISURA MONITOR 24″ FLAT USER MANUAL ENGLISH Model: P23QM24DFI01B – 75 Hz 178° 1080 Full HD resolution Super TFT Ultra Wide 3 Side Bezeless Low Blue Eyes 1920×1080 display Viewing Angle Design Grey to Grey Technology...
-
Page 2: General Information
GENERAL INFORMATION Dear Customer, Thank you for having purchased this product. This document describes how to install and use the LCD colour monitor. Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can refer to it when needed. Product description and type of use. - Page 3 WARNINGS Power Only use the power unit provided to power the device. Check mains rating before plugging the power unit in. Do not pull the cable to unplug the device. Safety precautions Keep the device away from rain and humidity to prevent risk of fire ...
- Page 4 Do not place heavy or heat generating objects on top of the device: this could damage the casing and/or increase internal temperature causing faults. Do not cover the device with a cloth while it is running to prevent deforming the external casing and overheating the internal parts: risk of fire, electrocution and mechanical failure.
-
Page 5: Monitor Inputs
MONITOR INPUTS 1 | HDMI port: Used to connect a compatible device. Supports HDMI 1.4 & 2.0 2 | VGA: Used to connect a compatible VGA device 3 | Audio Out: The Audio Out Input Source 4 | DC input port: Connect the supplied power supply to power the monitor MONITOR CONTROL BUTTONS Power Button... -
Page 6: Monitor Button Function
Open the Main OSD Menu and Select submenu Go Up on the Main OSD Menu Increase the value of a selected itemI Go Down on the Main OSD Menu Decrease the value of a selected item Select signal source or Exit OSD Turn the monitor on or Off MONITOR BUTTON FUNCTION All picture setup can be adjusted in OSD (On Screen Display) menu. -
Page 7: Osd Menu Controls
OSD MENU CONTROLS Luminance Option Function Value Brightness It allows changing of image 0 ~100 brightness, according to ambient light. Contrast It allows changing of contrast 0 ~100 between white and black areas of the image. Eco Mode Energy Saving Mode Standard/Internet/ Game/Movie It means Dynamic Contras Ratio,... - Page 8 Color Setup Option Function Value Color Temp Adjust color temperature User/Cool/Normal/Warm Red Adjust red color effect 0~100 0 ~100 Green Green Adjust green color effect 0 ~100 Blue Adjust blue color effect 0 ~100 LowBlue Mode Set the LowBlue Mode ON / OFF OSD Setup Option...
- Page 9 Extra Option Function Value Input Select Select Input HDMI and VGA Mute Restore the factory settings ON / OFF Volume Allows adjustment of the volume 0~100 of the monitor from FreeSync Allows FreeSync to be turned ON / OFF FlickFree Allows FlickFree to be turned ON / OFF Reset...
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION Model P23QM24DFI01B – 75 Hz Size 23.8” Panel Type 23.8” LED Backlight Monitor Pixel Pitch 0.2745 (H) × 0.2745 (V) mm Brightness (Max) 250 cd/m Contrast Ratio 1000:1 (Typ.) Display Color 16.7 Million Colors Viewing Angle 178° (H) / 178° (V) - Page 12 Manuál vo Slovenčine otvoríte tu / Open the English manual from here / Das Handbuch in Deutsch können Sie öffnen hier / A magyar nyelvű kézikönyvet itt tudja megnyitni / Odprite priročnik v slovenščini tukaj / Aprire il manuale in italiano qui / URL: www.misura.shop/en/advisor/manuals-for-download-office-monitor-24-75- hz-flat-p23qm24dfi01...
