USER MANUAL
PŘENOSNÝ TROJITÝ MONITOR PRO LAPTOPY

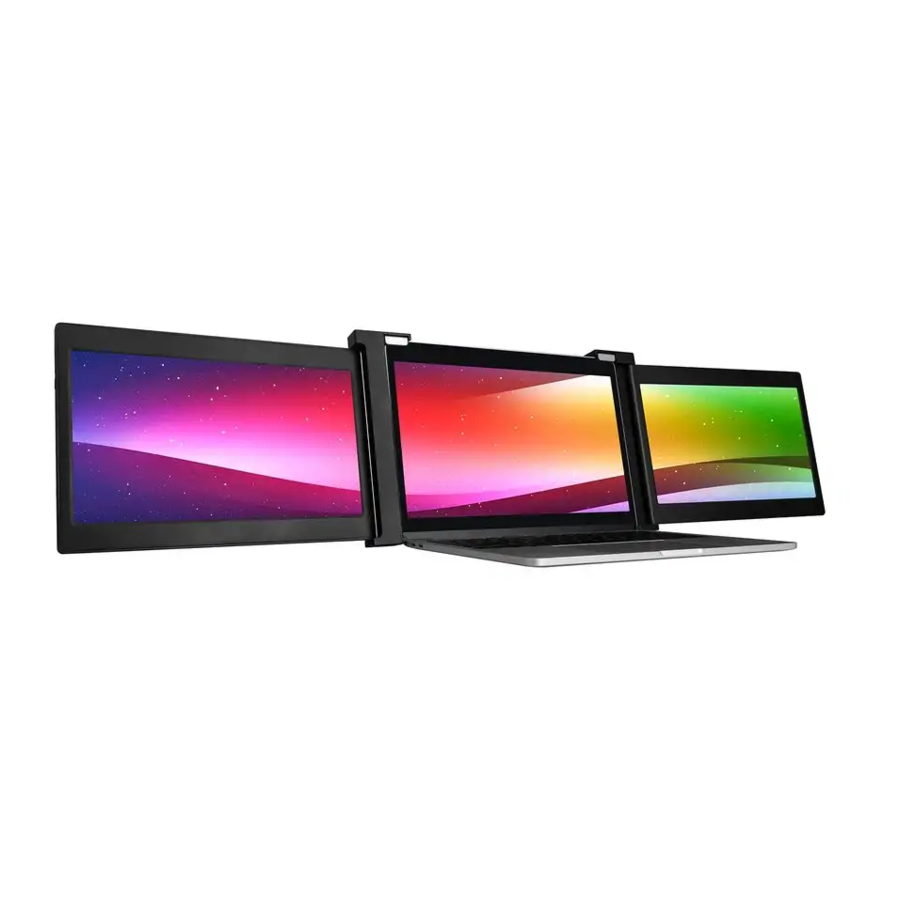

PORTABLE DUAL MONITOR FOR LAPTOPS

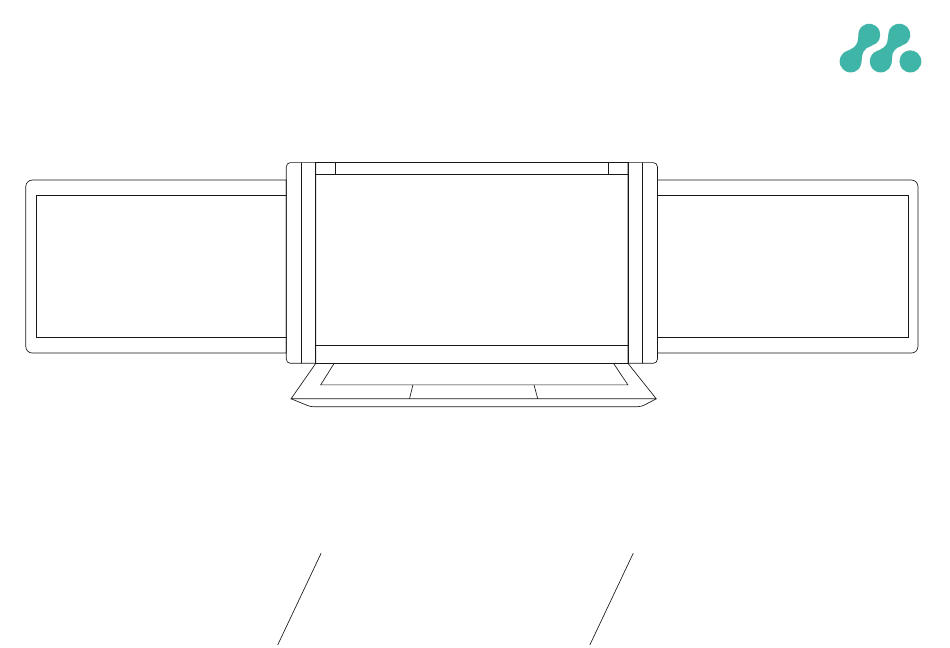

monitor 11.6" 3M1106D monitor 10.1" 3M101B monitor 13.3
monitor 10.1" 3M101B
compatible with laptops 10.1"- 13.3"
(with a minimum height of
178 mm for the laptop's own screen)
monitor 11.6" 3M1106D monitor 13.3" 3M1303D
compatible with 13.3"- 16.1"
laptops (with a minimum height of
213 mm for the laptop's own screen)
" 3M1303D
compatible with laptops 14 "and larger
(with a minimum height of
230 mm for the laptop's own screen)
Advertisement
Related Manuals for MISURA 3M1106
Summary of Contents for MISURA 3M1106
- Page 1 USER MANUAL PŘENOSNÝ TROJITÝ MONITOR PRO LAPTOPY PORTABLE DUAL MONITOR FOR LAPTOPS monitor 11.6" 3M1106D monitor 10.1" 3M101B monitor 13.3 " 3M1303D monitor 10.1" 3M101B monitor 11.6" 3M1106D monitor 13.3" 3M1303D compatible with laptops 10.1"- 13.3" compatible with 13.3"- 16.1"...
- Page 2 The technical data and information in this manual are provided for information only, are subject to change at any time without notice, and should not be construed as a commitment by MISURA. MISURA is not responsible for any errors or inaccuracies that may appear in this manual, including the products and software described in this manual.
- Page 3 NOTICE Please handle the dual monitor with care to avoid damage. Do not attempt to rotate the monitors more than shown below. MAXIMUM ANGLE OF ROTATION: Right screen 0 - 180 degrees Left screen 0 - 235 degrees...
-
Page 4: Table Of Contents
CONTENT OVERVIEW OF COMPONENTS INPUTS AND BUTTONS CABLE SELECTION ASSEMBLY DISPLAY CONFIGURATION INTRODUCTION TO OSD FUNCTIONS OSD SETTINGS 8-10 TECHNICAL SPECIFICATIONS... -
Page 5: Overview Of Components
OVERVIEW OF COMPONENTS Dual monitor 2x MINI HDMI 2x USB-C cables to HDMI cables (90 degrees) VIDEO &POWER VIDEO ONLY 2x USB-C to USB-A cables POWER SUPPLY ONLY... -
Page 6: Inputs And Buttons
INPUTS AND BUTTONS Thunderbolt 3 / USB-C 3.1 with DisplayPort (video and power) Mini-HDMI (video only) USB-C (power supply only) + continuous charging Menu / Input Increase brightness / Move up menu Decrease brightness / Move down menu / Back... -
Page 7: Cable Selection
INPUTS AND BUTTONS To determine which cables you will need, rst identify the ports on your laptop using the images on the right, or refer to the laptop's user guide. HDMI DisplayPort If your laptop has two Thunderbolt3 / USB-C with DisplayPorts, the easiest way to use a triple screen is to use two USB-C to USB-C cables. -
Page 8: Assembly
INPUTS AND BUTTONS 1. Remove the dual screen 4. Release the stand from the box at the back of the dual screen and turn the anchor screw to adjust the length 2. Open the two screens in in the directions described in the gure 3. -
Page 9: Display Configuration
DISPLAY CONFIGURATION PC / WINDOWS 1.Go to Display Settings (Start > > / System Settings > Display 2.Tap and drag the screen to view the con guration 3.If any of the screens are upside down, click on the icon in the display menu. Then click on the icon. - Page 10 DISPLAY CONFIGURATION 1. Open "System Preferences" 2. Select "Monitors" from the menu 3. In the display menu, click on "Arrangement" 4. Tap and drag the screens to view the con guration 5. If one of the screens is upside down, click on the icon to display the menu on that screen and select "180 degrees"...
-
Page 11: Introduction To Osd Functions
INTRODUCTION TO OSD FUNCTIONS 1. Activate the OSD menu by pressing the Menu button " " 2. Press the "+" button to select your setting 3. Press the Menu " " button to con rm 4. Press the "-" button to return to the previous page... -
Page 12: Osd Settings
OSD SETTINGS BRIGHTNESS BRIGHTNESS The setting range is from 0 to 100 Default display settings for various modes BRIGHTNESS ECO: (Standard / Game / Movie / Text / The setting range is from 0 to 100 CONTRAST FPS / RTS modes) The setting range is from 0 to 100 BLACK LEVEL Select ON or OFF to... - Page 13 OSD SETTINGS COLOR TEMPERATURE OSD SETTINGS Allows you to adjust Select the OSD language. COLORTEMP: LANGUAGE: each individual RGB color or select You can choose from: a default Warm or Cool level English, French, German, Simpli ed Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, The setting range is from 0 to 100 RED:...
- Page 14 SETTINGS RESET MISC Selects RESET to return all settings It contains two signal sources, RESET: SIGNAL to the factory default mode USB-C and HDMI SOURCE: Reduces the blue light WEAK BLUE content on the display LIGHT: Enables HDR (High Dynamic HDR MODE: Range) when connected to a compatible device.
-
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Model designation ID-3M101B ID-3M1106D ID-3M1303D Panel type Size 10.1" 11.6“ 13.3” Backlight type W-LED System W-LED System W-LED System Brightness 350cd/m2 230cd/m2 220cd/m2 Contrast 800:1 1000:1 1000:1 Pitch 0.1128mm (H) x 0.1128mm (V) 0.1335mm(H) x 0.1335mm (V) 0.153mm (H) x 0.153mm (V) - Page 16 CLEANING AND MAINTENANCE • Turn o the monitor and unplug the cable before cleaning. Clean the surface of the monitor with a smooth cloth that does not release bres does not release bres Resistant stains can be removed with a cloth dampened with a mild detergent designed for cleaning monitors. Do not use a detergent containing alcohol or acetone.
- Page 17 Description and identi cation of machinery: Title: portable USB monitor Type: 3M101B, 3M1106D, 3M1303D The device described above has been tested in accordance with the above standards and found to comply with the EMC 2014/30/ES. The observations and test results given in this certi cate are only relevant for the test sample.
