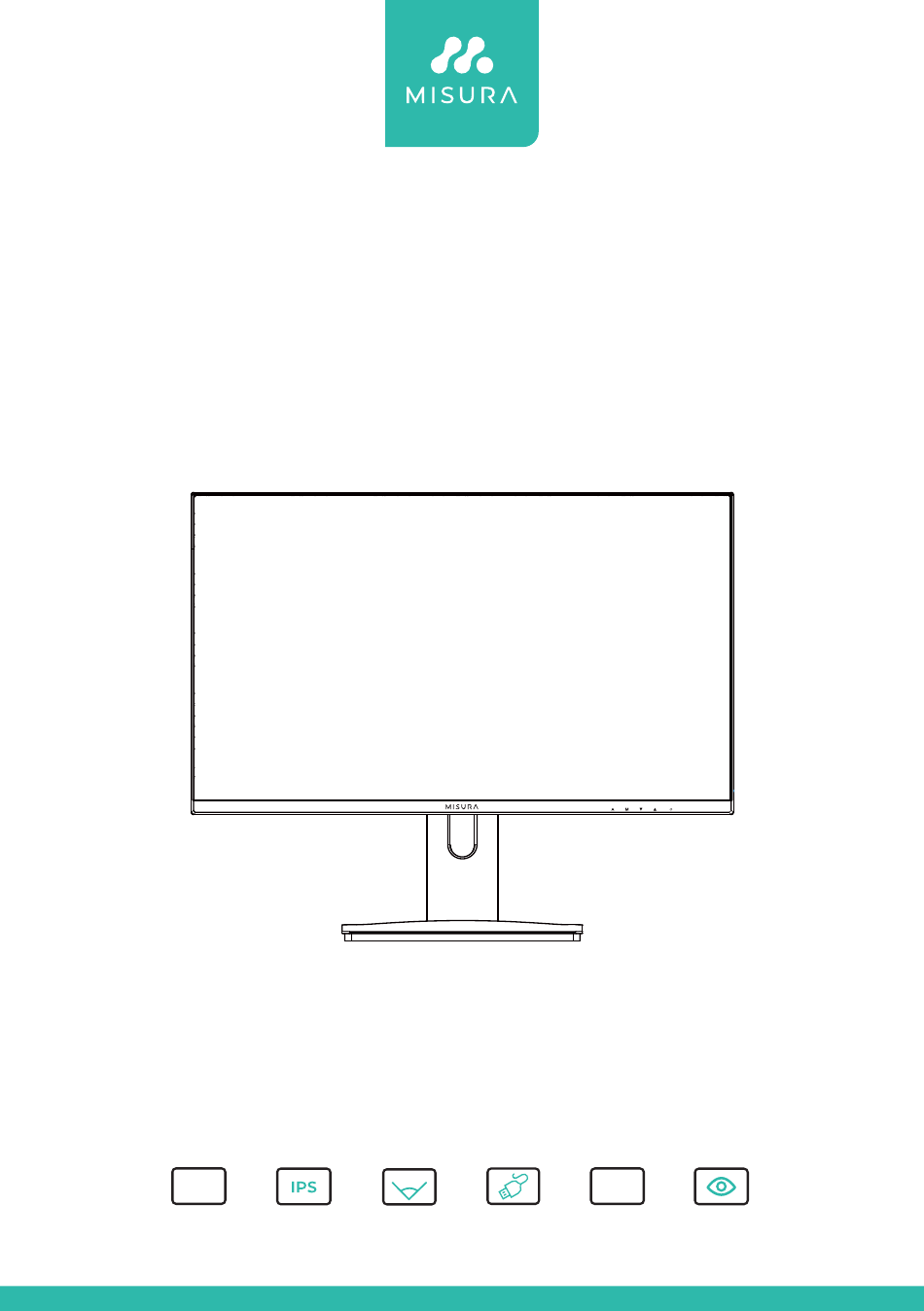

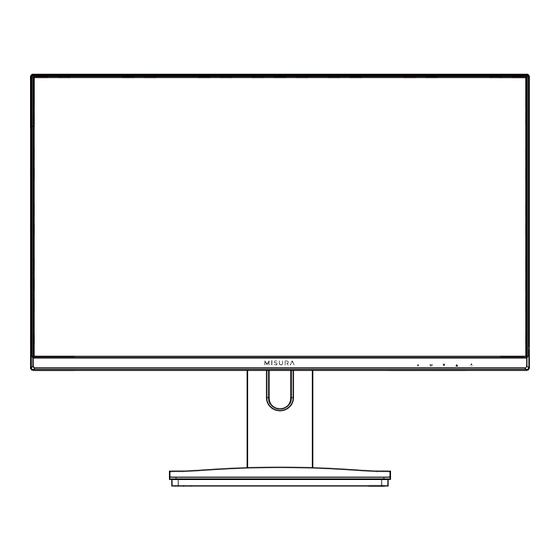

MISURA MONITOR 27" FLAT
P24QW27DQI01B-75Hz
USER MANUAL
ENGLISH
USER MANUAL
INSTRUCTION MANUAL
Please read this manual thoroughly before use,and keep it handy for future reference
Model: P24QW27DQI01B – 75 Hz
178°
QHD
5 ms
QHD resolution
Super TFT
Ultra Wide
Power Delivery
GtG
Low Blue Eyes
2560x1440
display
Viewing Angle
Technology
Grey to Grey
Technology
Advertisement
Table of Contents
Related Manuals for MISURA P24QW27DQI01B
Summary of Contents for MISURA P24QW27DQI01B
- Page 1 MISURA MONITOR 27″ FLAT P24QW27DQI01B-75Hz USER MANUAL ENGLISH USER MANUAL INSTRUCTION MANUAL Please read this manual thoroughly before use,and keep it handy for future reference Model: P24QW27DQI01B – 75 Hz 178° 5 ms QHD resolution Super TFT Ultra Wide Power Delivery...
-
Page 2: Safety Information
SAFETY INFORMATION Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating ... - Page 3 Do not place heavy items on the cable as this may cause damage. When removing from a socket hold by the plug and not the wires. Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.
-
Page 4: Monitor Inputs
ACCESSORIES 1 | 27 inch Monitor 4 | HDMI Cable 2 | Stand 5 | Power Adaptor and Power Cable 3 | USB-C Cable 6 | User manual MONITOR INPUTS CONNECTIONS AVAILABLE ON THE MONITOR HDMI USB-C AUDIO OUT Used to connect a compatible device. Supports 1 | HDMI 1.4 &... -
Page 5: Initial Setup
INITIAL SETUP Connect the monitor to a power outlet. 1. Press the POWER button on the monitor or to turn it on (The indicator will be blue) TYPE C 2. Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected. - Page 6 BACKLIGHT BACKLIGHT BRIGHTNESS CONTRAST STANDARD HDR MODE BRIGHTNESS: Allows the adjustment of the image brightness, according to ambient light in the room. Value “0–100”. CONTRAST: Allows the adjustment of the image brightness, according to ambient light in the room. Value “0–100”. ECO: Allows selection of image settings between the following: STANDARD, TEXT, MOVIE, GAME.
- Page 7 COLOR COLOR COLOR TEMP. WARM BLUE LOW BLUE LIGHT COLOR TEMP.: Allows adjustment of the colour settings between the following options: Normal – Warm – Cool – User – 7500 – 5800 – SRGB. RED: Allows adjustment of the red element of the image. GREEN: Allows adjustment of the green element of the image.
- Page 8 RESET RESET IMAGE AUTO ADJUST COLPOR AUTO ADJUST RESET FLICKER FREE IMAGE AUTO ADJUST COLPOR AUTO ADJUST RESET: Returns the monitor to its factory default settings. FLICKER FREE: Allows the flicker free of the picture to be turned ON and OFF. OTHER MISC SIGNAL SOURCE...
-
Page 9: Technical Specification
TECHNICAL SPECIFICATION Model P24QW27DQI01B–75 Hz Screen Size 27” Aspect Ratio 16:9 Backlight Brightness 250 cd/m ² Panel Type Resolution 2560 × 1440 Refresh Rate 75 Hz Response Time 5ms (GTG) Viewing Angle 178 °/178 ° (CR>10) Contrast Ratio 1000:1 Colours 16.7 Million Colors (8bit) - Page 10 Manuál vo Slovenčine otvoríte tu Open the English manual from here Das Handbuch in Deutsch können Sie öffnen hier A magyar nyelvű kézikönyvet itt tudja megnyitni Odprite priročnik v slovenščini tukaj Aprire il manuale in italiano qui Otwórz instrukcję w języku polskim tutaj https://www.misura.shop/en/advisor/manuals-for-download-high-resolution- monitor-27-75-hz-flat-p24qw27dqi01b...
