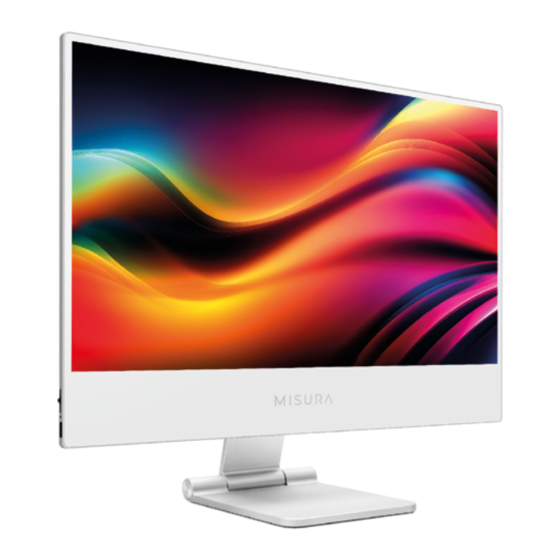

MISURA STYLE MONITOR
ULTRA THIN & LIGHT PORTABLE 16" MONITOR
WITH MAGNETIC FOLDING STAND
USER MANUAL
ENGLISH
Model: P23M16TSTYLE01
178°
1080
HDR
IPS
Ultra thin design
Ultra light weight
Full HD resolution
Multi-Gesture
High Dynamic
Super TFT
Ultra Wide
16,7 Million
Viewing Angle
colors
Only 6 mm
Only 953 g
1920×1080
Touch screen
Range
display
Advertisement
Table of Contents
Related Manuals for MISURA P23M16TSTYLE01
Summary of Contents for MISURA P23M16TSTYLE01
- Page 1 MISURA STYLE MONITOR ULTRA THIN & LIGHT PORTABLE 16” MONITOR WITH MAGNETIC FOLDING STAND USER MANUAL ENGLISH Model: P23M16TSTYLE01 178° 1080 Ultra thin design Ultra light weight Full HD resolution Multi-Gesture High Dynamic Super TFT Ultra Wide 16,7 Million Viewing Angle...
- Page 2 MISURA. MISURA is not responsible for any errors or inaccuracies that may appear in this manual, including the products and software described in this manual.
-
Page 3: Package Contents
FEATURES 1. FHD 1920 × 1080 16:9 IPS Portable monitor. 2. Support HDR technology. The HDR display delivers incredibly smooth, life-like visuals whether you’re gaming, watching videos, or editing photos. 3. With type C and HD mini ports compatible with Smart phone, PC, Mac mini, Mac book, laptops, cameras, game consoles and other devices. -
Page 4: Front And Side Views
FRONT AND SIDE VIEWS 1. Wheel Button Rotate up to increase brightness. Rotate down to decrease brightness. Press to open menu or select option while in menu. 2. Power LED light Red color: Power on / No valid source / Standby status Blue color: Get valid source / On working status 3. -
Page 5: Using Monitor Buttons
USING MONITOR BUTTONS Power On / Off: Hold power button for 3 seconds to turn on and off. Return / Exit: Click power button while menu open to return or exit menu. Show Menu / Settings: Short press wheel button. Select Menu Option: Click wheel button while menu open to confirm / select highlighted option. -
Page 6: Led Indicator Light
LED INDICATOR LIGHT Input indicator light Blue Color: ON / Searching for Input Source Red Color: No source / Standby status. Dark: OFF. PORTS AND CONNECTION Video Connect Monitor to valid source via mini HDMI or USB-C port . Please note that not all PC, laptop, or mobile phone USB-C ports output display or video signal. - Page 7 CONNECT THE PORTABLE USB USB-C Touch function is avaible. NOTICE: Check if the USB-C of your laptop/phone is a full featured USB-C port. Your device should support Thunderbolt 3.0 or USB 3.1 Gen2, USB-C DP ALT-MODE. If it is just a USB-C for charging, it will not be available.
- Page 8 USB-C Input power optional. Will consume built-in battery life without input power. Lightning to HDMI adapter iPhone / iPad Input power optional. Will consume built-in battery life without input power. NOTE: • Touchscreen function is only enabled when connecting to your device via USB-C as the HDMI connection does not output touch signal.
- Page 9 NOTE: • If the monitor is no external power supply, the mobile phone / laptop will supply power to the display, please ensure that the devices has enough power supply, if there is no signal, please plug in the external power supply (5V/3.0A);...
-
Page 10: Specification
SPECIFICATION Portable monitor Name TFT IPS LCD (16:9 Wide) Panel Type LED / Backlight 1920 × 1080 Resolution / Color depth 60 Hz Vertical frequency 1× HDMI mini port 2× USB-C port Connectivity 1× Power port Customized for many devices e.g.: PCs, Mobiles, Game consoles Multi Device Compatibility (Xbox One, Xbox 360, PlayStation),... -
Page 11: Troubleshooting (Faq)
TROUBLESHOOTING (FAQ) 1. Why the monitor without display or flash? There’s maybe because of power shortage, please power the monitor with the AC adaptor. 2. Why the monitor turn off after a boot screen? There’s because the monitor haven’t get valid source, please check if the HDMI or USB-C cable is connected properly, ensure that the device connect to the monitor is running normally;... - Page 12 Aprire il manuale in italiano qui https://www.misura.shop/en/advisor/manuals-for-download-style-monitor Thank you for your purchase. If necessary, contact us at: Producer / Importer MISURA Store s.r.o., ID: CZ264 03 714 www.misura.shop info@misura.shop @SHOPMisura @misura_shop @MISURA We are not liable for any typographical errors.
