E4-Display panel communication error.
EC-Refrigerant leakage detection
malfunction(on some models).
E7-Zero-crossing malfunction.
P1-Bottom tray is full--Connect the drain hose
and drain the collected water away.If protec-
tion repeats, call for service.
Note: When one of the above malfunctions
occurs, turn off the unit, and check for any
obstructions. Restart the unit, if the malfunction
is still present, turn off the unit and unplug the
power cord. Contact the manufacturer or its
service agents or a similar qualified person for
service.

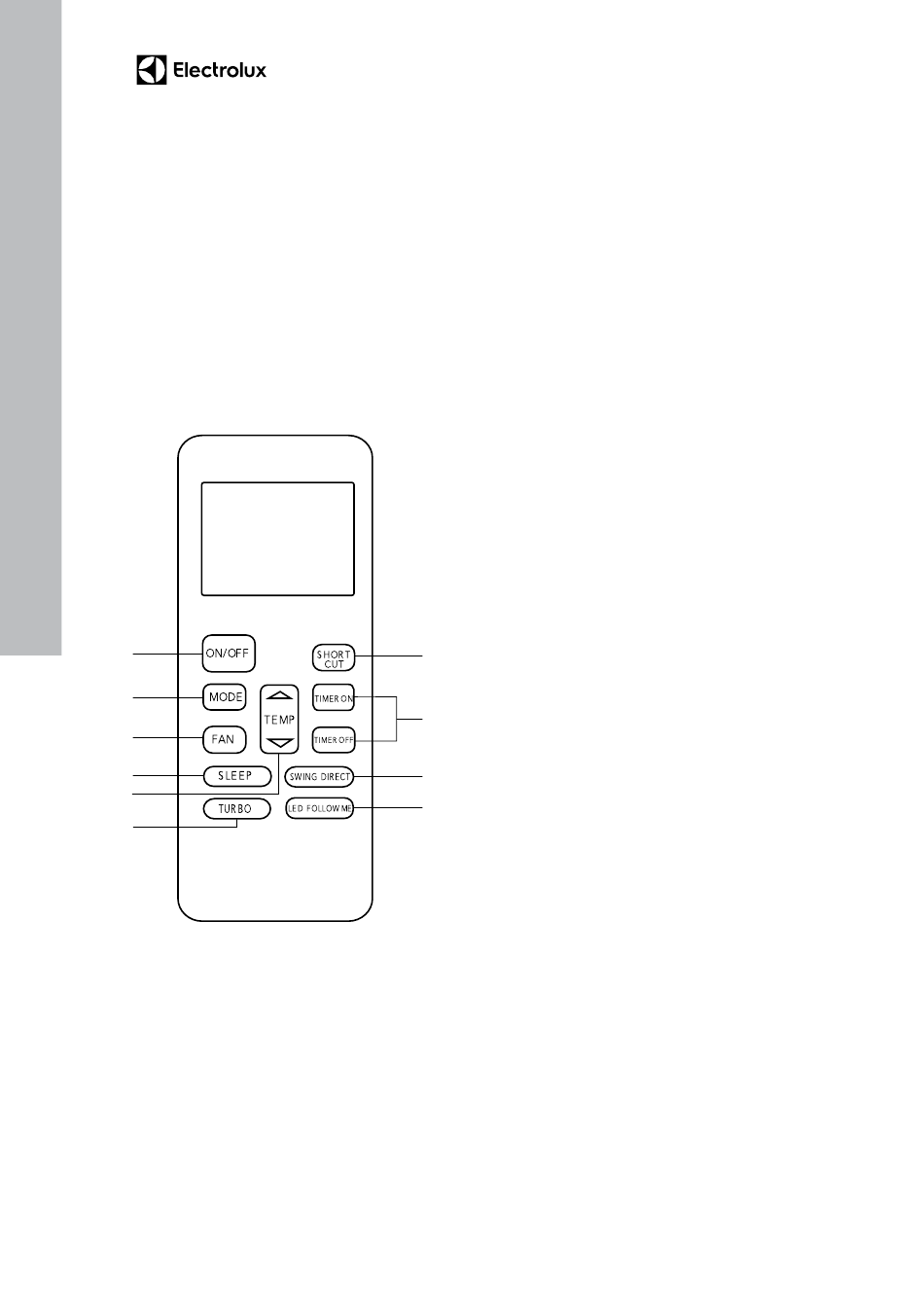

Remote control

1
3
8
5
6
10
1. On of
2. Return to previous settings
3. Operating mode
4. Timer button
5. Economy mode / Night mode
6. Temperature control
7. Wiggle blinds
8. Fan speed
9. Temperature detection mode near the
console
ON / OFF button:
1 Designed to start the device. When pressed
again, the device stops working.
SHORTCUT button
2 Used to revert to previously set settings. When
you press this button for the first time after
turning on the network, the air conditioner will
operate in AUTO mode, maintaining t ° + 26 °
C.
MODE button
3 Sets the operating mode: Cooling (COOL),
Drying (DRY), Ventilation (FAN) Automatic
(AUTO).
TIMER button
4 In standby mode, press this button to set
the ON timer, the TIMER ON indicator will
light up. Keep going TIMER, increasing time
for 0.5 hour. To cancel the on timer, set it to
"0:00" and the TIMER ON indicator goes off.
When the device is on, press this button to
set the off timer, the TIMER OFF indicator will
light up. Continue to press the TIMER button
to increase the time by 0.5 hour. To cancel
the off timer, set it to "0:00", the indicator
TIMER OFF will go out.
ECO / SLEEP button
5 When operating in COOL or AUTO mode,
press the SLEEP button to activate the
2
function. In Cooling mode, the set indoor
temperature will automatically increase by
1 degree during the first hour and another 1
4
degree during the second hour (maximum
increase of 2 degrees). Then the device will
continue to work at minimum speed with-
7
out changing the set temperature. Further,
after 7 hours, it will return to the previously
9
selected operating mode and temperature
settings.
Press the MODE, ON / OFF or FAN button
to turn off the function.
Make sure the air conditioner supports this
function.
Function not available in Dry (DRY) /
Ventilation (FAN) mode.
Button TEMP (REGULATION OF
TEMPERATURE)
6 Use this button to increase / decrease the
set temperature value within the range
from 17 Сº to 30 Сº in the Cooling mode.
SWING DIRECT button (SWING BLINDS)
7 SWING - Stops or starts the horizontal
movement of the louver.
FAN button (FAN SPEED)
8 Button for selecting the air flow rate in the
