12

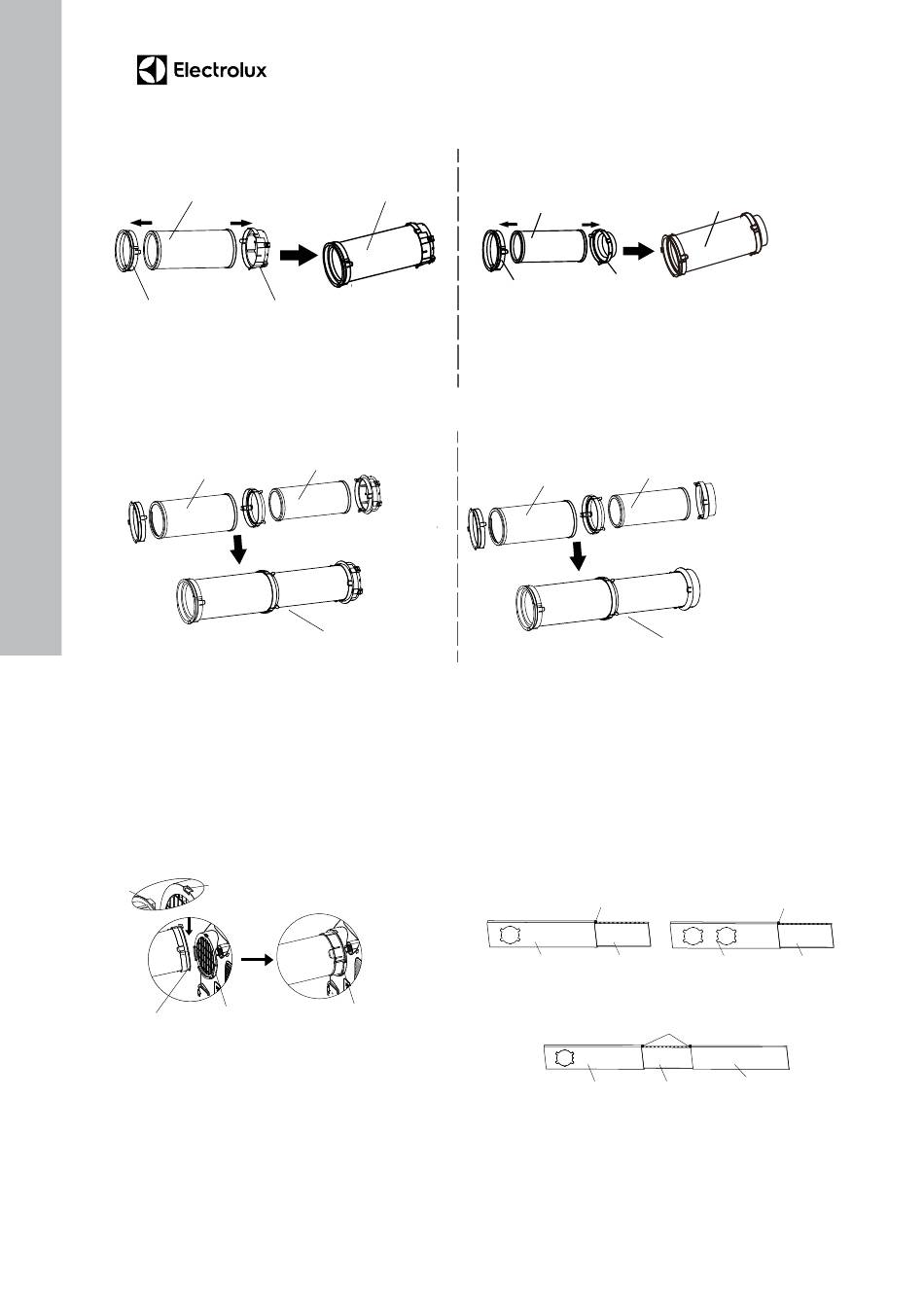

Window Installation Kit

Exhaust hose
Unit adaptor Window slider
adaptor
Type window installation
Exhaust hose Extended Exhaust hose
Exhaust hose assembly
Type window installation
Step One: Preparing the Exhaust Hose
assembly
Press the exhaust hose(or extended exhaust
hose) into the window slider adaptor(or wall
exhaust adaptor) and unit adaptor, clamp
automatically by elastic buckles of the adap-
tors.
Hook
Hole Seat
Lower groove
adaptor
Step Two: Install the Exhaust hose assembly
to the unit
Insert unit adaptor of the Exhaust hose
assembly into the lower groove of the air out-
let of the unit while the hook of the adaptor is
aligned with the hole seat of the air outlet and
slide down the Exhaust hose assembly along
the arrow direction for installation.
Exhaust hose
assembly
Unit adaptor Wall exhaust adaptor A
Or
Make sure the adaptor
is inserted into the lower
groove of the air outlet.
Exhaust hose assembly
Exhaust hose
Type wall installation
Extended Exhaust hose
Exhaust hose
Exhaust hose assembly
Type wall installation
Step Three: Preparing the Adjustable Window
Slider
1. Depending on the size of your window,
adjust the size of the window slider.
2. If the length of the window requires two
or three window sliders, use the bolt(s) to
fasten the window sliders once they are
adjusted to the proper length.
Bolt
Window slider A Window slider B
MODEL A
or
Bolts
Window slider A Window slider B Window slider C
MODEL A

Installation

NOTE: Once the Exhaust Hose assembly
and Adjustable Window Slider are prepared,
choose from one of the following two installa-
tion methods.
Bolt
Window slider A Window slider B
MODEL B
