- Page 1 Gigabit Switch Quick Start Guide UD35520B...
-
Page 2: Applicable Models
Preface Applicable Models This manual is applicable to NS-0500 series gigabit switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. -
Page 3: Product Introduction

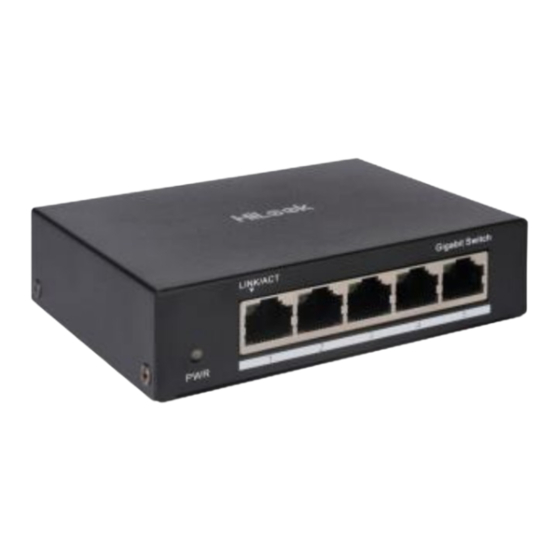

1 Introduction 1.1 Product Introduction NS-0500 series switches are unmanaged gigabit network switches, providing five or eight gigabit Ethernet ports to upload data via convergence switches. The devices are reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the devices are applicable for access of small- scale LAN devices. -
Page 4: Rear Panel
Rear Panel NS-0505 Series NS-0508 Series Table 1-2 Port/Indicator Description Indicator/Port Description Solid on: The switch is powered on normally. ① PWR Indicator Unlit: No power supply is connected or power supply is abnormal. Solid on: The port is connected. ... -
Page 5: Wall Mounting
Wall Mounting Steps 1. Check the distance between the two hanging holes at the bottom of the device. 2. Insert two self-prepared M4 screws into the wall. Note The load-bearing capacity of the wall should be three times more ● than the weight of the device. - Page 6 Steps 1. Bury an angle steel or steel pipe (≥ 0.5 m) into the earth. 2. Weld one end of the grounding cable to the angle steel or steel pipe and embalm the welding point via electroplating or coating. 3. Connect the other end of the grounding cable to the grounding terminal.
