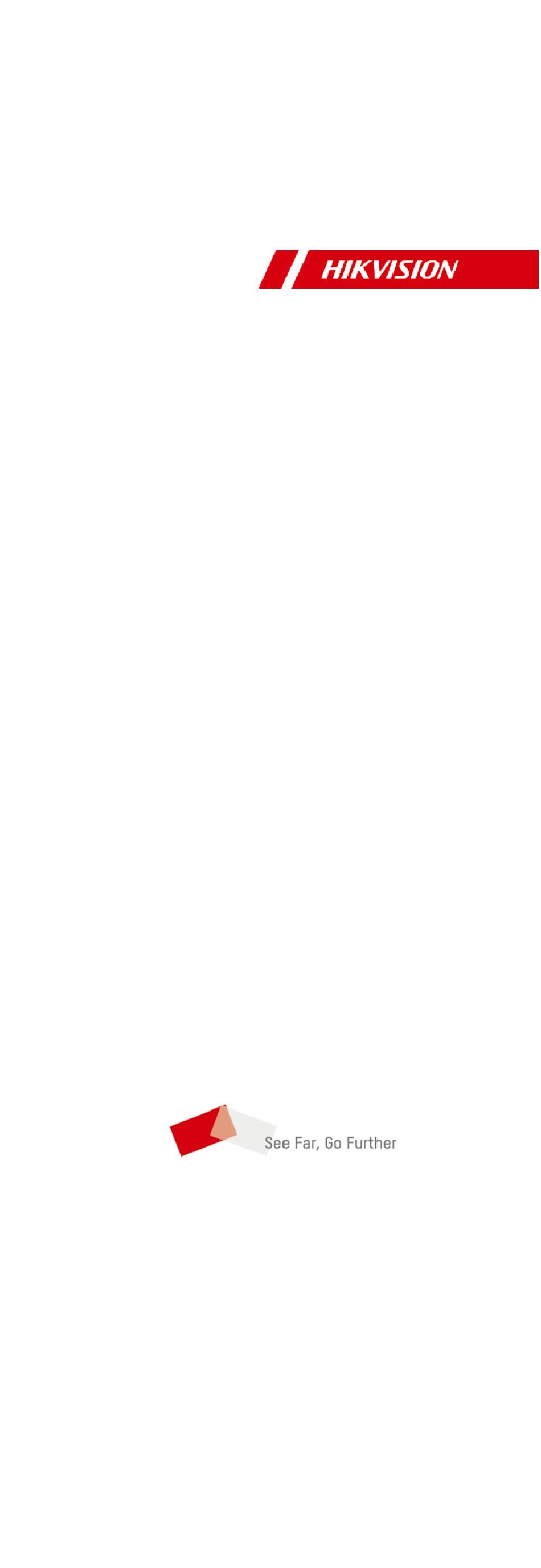

- Page 1 Smart Managed Solar Industrial PoE Switch Quick Start Guide UD41908B-A...
- Page 2 Preface Applicable Models This manual is applicable to the smart managed solar industrial PoE switch. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
- Page 3 Do not subject the battery to extremely low air pressure, which may result in an explosion or the leakage of flammable liquid or gas. Dispose of used batteries according to the instructions. For the battery with + and - signs, + identifies the positive ...
- Page 4 Using Environment Make sure the running environment meets the requirement of the device. DO NOT place the device in extremely hot, cold, dusty or damp locations, and do not expose it to high electromagnetic radiation. For temperature and humidity requirements, refer to device specification for details.
-
Page 5: Product Introduction
1.1 Product Introduction DS-3T1506HP-EI-UPS is a smart managed solar industrial PoE switch developed by Hikvision. It can be charged by solar power for energy conservation so as to power IP cameras (IPCs), wireless bridges, or wireless access points (APs) in remote areas in a cost- effective way. - Page 6 Figure 1-2 Side Panel Table 1-2 Port/Indicator Description Port/Indicator Description Press and hold the reset button for more than 5 seconds to ① Reset Button restore all the configurations of the switch to default settings. ● Solid on: The port is connected.
- Page 7 Port/Indicator Description ● Unlit: No gigabit SFP fiber optical port connected or connection is abnormal. Used for connection to a PD via a network cable. Gigabit PoE RJ45 Note ⑥ Port Port 1 of the switch is a Hi-PoE RJ45 port, which can be connected to a high-power device.
-
Page 8: Wall-Mounted Installation
Port/Indicator Description PoE powered devices, such as wireless bridges. ● When the DIP switch 1 is set to 54V, port 3 only supplies power to IEEE 802.3af/at PoE powered devices, such as IPCs. 2 (24 V/54 V for port 4): ●... - Page 9 Figure 2-1 Wall-Mounted Installation 2.3 Rail-Mounted Installation Steps 1. Fix the clip to the device. 2. Insert the end of the DIN rail-mounted unit into the notch under the clip. Figure 2-2 Rail-Mounted Installation 3. Press the DIN rail-mounted unit in quickly. 4.
- Page 10 3.1.1 With Grounding Bar If a grounding bar is available at the installation site, follow the steps below. Steps 1. Connect one end of the grounding cable to the binding post on the grounding bar. 2. Connect the other end of the grounding cable to the grounding terminal of the device and tighten the screw.
-
Page 11: Typical Application
3.3 Connect SFP Optical Module Connecting an SFP optical module is supported when the device has a fiber optical port. Steps Caution Single-mode optical modules need to be paired for use. ● Do not bend an optical fiber (curvature radius ≥ 10 cm) overly. ●... - Page 12 Figure 4-2 Power Connection Follow the steps below to set up power connections of the solar power system. Steps 1. Place the grounded switch and battery in a proper enclosure. 2. Connect the battery to the switch. Figure 4-3 Battery Connection a.
-
Page 13: Device Management
Figure 4-4 PD Connection a. Connect an IEEE 802.3af/at PoE powered device, such as IPC, to port 1 or port 2 of the switch. b. Connect a 24 V forced PoE powered device, such as wireless bridge, to port 3 or port 4 of the switch. Note DIP switch 1 or DIP switch 2 must be set to 24V so that port 3 or port 4 can be compatible with a 24 V forced PoE... - Page 14 2. Connect your phone to a Wi-Fi network. If you cannot connect to a Wi-Fi network, use a USB-C RJ45 adapter to connect your phone to a LAN. Note Make sure your phone and the devices in your networking (such as the switch, wireless bridge, and IPC) are on the same LAN and are not activated.
- Page 15 Table 5-1 Navigation Path Steps a. Select a site to which the devices are added. → Battery of the corresponding device b. Tap on the Devices tab page. a. Select a site to which the devices are added. b. Tap the corresponding device on the Devices tab page to enter the device details page.
- Page 16 For details, please refer to the Web user manual of the device at http://enpinfodata.hikvision.com/analysisQR/showQR/c7b83365 or scan the QR code below. Table 5-4 Web User Manual...
