Summary of Contents for HIKVISION DS-3E1X05P Series
- Page 1 100 Mbps PoE Switch Quick Start Guide...
-
Page 2: Legal Information
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,... - Page 3 100 Mbps PoE Switch Quick Start Guide PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
-
Page 4: Regulatory Information
100 Mbps PoE Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 5 100 Mbps PoE Switch Quick Start Guide designated collection point. For more information see: http:// www.recyclethis.info . Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
-
Page 6: Applicable Models
100 Mbps PoE Switch Quick Start Guide Preface Applicable Models This manual is applicable to DS-3E1XXXP series switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. - Page 7 100 Mbps PoE Switch Quick Start Guide • CAUTION: Risk of explosion if the battery is replaced by an incorrect type. • Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types). •...
-
Page 8: Chapter 1 Introduction

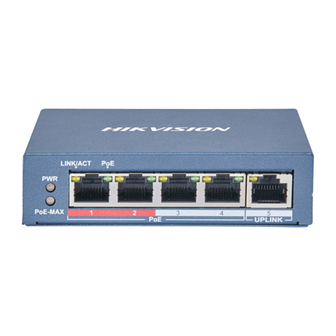

100 Mbps PoE Switch Quick Start Guide Chapter 1 Introduction 1.1 Product Introduction DS-3E1XXXP series switches (hereinafter referred to as "the device") are layer 2 PoE switches, providing advanced PoE power supply technology on the basis of high-performance access. The switches support client management, network topology management, link aggregation, port management and so on. - Page 9 100 Mbps PoE Switch Quick Start Guide Note The front panel of DS-3E1309P switch is similar to that of DS-3E1105P, with differences on 8 100Mbps PoE RJ45 ports, and that No.9 port is gigabit RJ45 port. Figure 1-2 DS-3E1318P Series Note The front panel of DS-3E1326P switch is similar to that of DS-3E1318P, with differences on 24 100Mbps PoE RJ45 ports, 24 LINK/ACT, and 24 PoE indicators.
- Page 10 100 Mbps PoE Switch Quick Start Guide Port/Indicator Description Indicator/Port Description PoE-MAX Indicator • Solid /Flashing: The output power of the switch will reach the upper limit. The power supply may be abnormal if more devices are connected. • Unlit: The switch provides power supply to PD normally. PWR Indicator •...
-
Page 11: Chapter 2 Installation
100 Mbps PoE Switch Quick Start Guide Chapter 2 Installation Please select the appropriate installation method according to the actual needs. Before You Start • Ensure that the desktop or rack is stable and firm enough. • Keep the room well-ventilated. Keep at least 10 cm distance around the device for heat dissipation. -
Page 12: Rack-Mounted Installation
100 Mbps PoE Switch Quick Start Guide 2.3 Rack-Mounted Installation Steps 1. Check the grounding and stability of the rack. 2. Use the attached screws to fix the two L-shaped brackets to the sides of the switch. Figure 2-2 Fix L-Shaped Brackets 3. -
Page 13: Chapter 3 Grounding
100 Mbps PoE Switch Quick Start Guide Chapter 3 Grounding 3.1 Connecting the Grounding Cable Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. Select the appropriate grounding method according to your needs. 3.1.1 With Grounding Bar If a grounding bar is available at the installation site, follow the steps below. -
Page 14: Connecting Rj45 Port
100 Mbps PoE Switch Quick Start Guide Figure 3-2 Grounding with Angle Steel 3.2 Connecting RJ45 Port Use a network cable to connect the device to the RJ45 port of a peer device such as network camera, NVR, switch, etc. Figure 3-3 RJ45 Port Connection... - Page 15 100 Mbps PoE Switch Quick Start Guide 3.3 Connecting SFP Optical Module Connecting SFP optical module is supported when the device has a fiber optic port or a combo. When connected to a network cable, the combo is a RJ45 port. When plugged into with an optical module and connected to an optical fiber, the combo functions as a fiber optic port.
-
Page 16: Chapter 4 Powering On The Device
100 Mbps PoE Switch Quick Start Guide Chapter 4 Powering on the Device Please use the attached power cord in package to power on the device. Before powering your switch, make sure that: • The operating power supply is compliant with rated input standard. •... -
Page 17: Chapter 5 Device Management
100 Mbps PoE Switch Quick Start Guide Chapter 5 Device Management The device can be configured and managed through iVMS-4200 software, mainly including network parameter configuration, port configuration, link aggregation configuration, network topology display and so on. Note • This chapter will briefly introduce the device management through iVMS-4200 software. For other functions, please refer to User Manual of iVMS-4200 Software. -
Page 18: Adding Devices
100 Mbps PoE Switch Quick Start Guide Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 19 100 Mbps PoE Switch Quick Start Guide By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
-
Page 20: Chapter 6 Get More Information
100 Mbps PoE Switch Quick Start Guide Chapter 6 Get More Information iVMS-4200 Management Scan the QR code below for iVMS-4200 software operations. Hik-ProConnect Management Go to http://hik-proconnect.com or scan the QR code below for Hik-ProConnect operations. Hik-ProConnect for Installers Hik-Connect for Users... - Page 21 UD18592B-A...
