Summary of Contents for HIKVISION DS-3E1106HP-EI

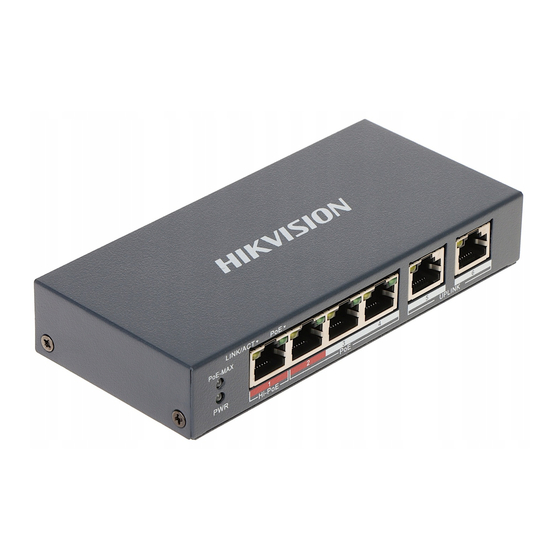

- Page 1 100 Mbps Hi-PoE Switch Quick Start Guide...
-
Page 2: Legal Information
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,... - Page 3 100 Mbps Hi-PoE Switch Quick Start Guide PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
-
Page 4: Regulatory Information
100 Mbps Hi-PoE Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 5 100 Mbps Hi-PoE Switch Quick Start Guide designated collection point. For more information see: http:// www.recyclethis.info . Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
-
Page 6: Applicable Models
100 Mbps Hi-PoE Switch Quick Start Guide Preface Applicable Models This manual is applicable to DS-3E1XXXHP Series switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. - Page 7 100 Mbps Hi-PoE Switch Quick Start Guide • CAUTION: Risk of explosion if the battery is replaced by an incorrect type. • Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some lithium battery types). •...
-
Page 8: Chapter 1 Introduction
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 1 Introduction 1.1 Product Introduction DS-3E1XXXHP Series switches (hereinafter referred to as "the device") are layer 2 Hi-PoE switches, providing advanced PoE power supply technology supporting extend mode with up to 300-meter transmission distance on the basis of high-performance access. - Page 9 100 Mbps Hi-PoE Switch Quick Start Guide Figure 1-2 DS-3E1310HP Rear Panel Figure 1-3 DS-3E1XXXHP Series Note 54 VDC power supply is required for the DS-3E1310HP series switch. Port/Indicator Description Indicator/Port Description PoE-MAX Indicator • Solid/Flashing: The output power of the switch will reach the upper limit.
- Page 10 100 Mbps Hi-PoE Switch Quick Start Guide RJ45 Port Used for other devices connection via network cables. Reset Button Press to restore all the configurations of the switch to the default settings. Grounding Terminal Used for connecting to the grounding cable to protect the switch from lightning.
-
Page 11: Chapter 2 Installation
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 2 Installation Please select the appropriate installation method according to the actual needs. Before You Start • Ensure that the desktop or wall is stable and firm enough. • Keep the room well-ventilated. Keep at least 10 cm distance around the device for heat dissipation. -
Page 12: Chapter 3 Grounding
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 3 Grounding 3.1 Connect Grounding Cable Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. Select the appropriate grounding method according to your needs. 3.1.1 With Grounding Bar If a grounding bar is available at the installation site, follow the steps below. - Page 13 100 Mbps Hi-PoE Switch Quick Start Guide Figure 3-2 Ground with Angle Steel 3.2 Connect RJ45 Port Use a network cable to connect the device to the RJ45 port of a peer device such as network camera, NVR, switch, etc. Figure 3-3 RJ45 Port Connection...
-
Page 14: Chapter 4 Power On The Device
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 4 Power on the Device Please use the attached power cord in package to power on the device. Before powering your switch, make sure that: • The operating power supply is compliant with rated input standard. •... -
Page 15: Chapter 5 Device Management
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 5 Device Management The device can be configured and managed through iVMS-4200 software, mainly including network parameter configuration, port configuration, link aggregation configuration, network topology display, and so on. Note • This chapter will briefly introduce the device management through iVMS-4200 software. For other functions, please refer to User Manual of iVMS-4200 Software. -
Page 16: Add Devices
100 Mbps Hi-PoE Switch Quick Start Guide Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 17 100 Mbps Hi-PoE Switch Quick Start Guide By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
-
Page 18: Chapter 6 Get More Information
100 Mbps Hi-PoE Switch Quick Start Guide Chapter 6 Get More Information Scan the QR code below for iVMS-4200 software operations. - Page 19 UD22877B...
