- Page 1 PoE Switch Quick Start Guide...
- Page 2 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website ( https:// www.hikvision.com/ ).
-
Page 3: Chapter 1 Introduction

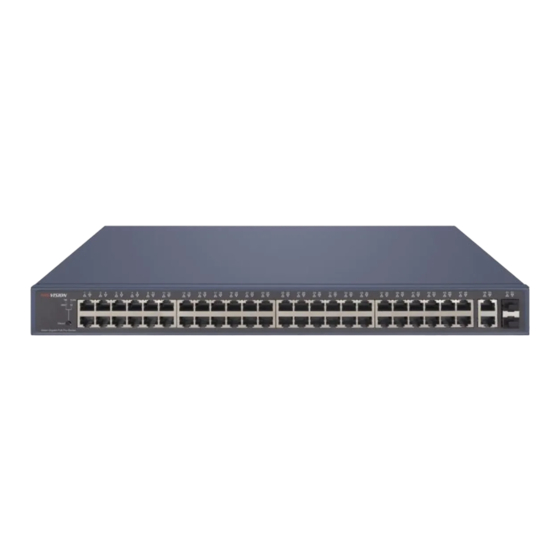

Chapter 1 Introduction 1.1 Product Introduction DS-3E1552P series switches (hereinafter referred to as "the device") are layer 2 PoE switches, providing advanced PoE power supply technology on the basis of high-performance access. The switches support client management, network topology management, link aggregation, port management and so on. - Page 4 PoE Switch Quick Start Guide Rear Panel Figure 1-2 DS-3E1552P Series Port/Indicator Description Indicator/Port Description PoE-MAX Indicator • Solid /Flashing: The output power of the switch will reach the upper limit. The power supply may be abnormal if more devices are connected.
-
Page 5: Chapter 2 Installation
PoE Switch Quick Start Guide Chapter 2 Installation Please select the appropriate installation method according to the actual needs. Before You Start • Ensure that the desktop or rack is stable and firm enough. • Keep the room well-ventilated. Keep at least 10 cm distance around the device for heat dissipation. -
Page 6: Chapter 3 Grounding
PoE Switch Quick Start Guide Chapter 3 Grounding 3.1 Connecting the Grounding Cable Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. Select the appropriate grounding method according to your needs. 3.1.1 With Grounding Bar If a grounding bar is available at the installation site, follow the steps below. -
Page 7: Connecting Rj45 Port
PoE Switch Quick Start Guide Figure 3-2 Grounding with Angle Steel 3.2 Connecting RJ45 Port Use a network cable to connect the device to the RJ45 port of a peer device such as network camera, NVR, switch, etc. Figure 3-3 RJ45 Port Connection... - Page 8 PoE Switch Quick Start Guide 3.3 Connecting SFP Optical Module Connecting SFP optical module is supported when the device has a fiber optic port or a combo. When connected to a network cable, the combo is a RJ45 port. When plugged into with an optical module and connected to an optical fiber, the combo functions as a fiber optic port.
-
Page 9: Chapter 4 Powering On The Device
PoE Switch Quick Start Guide Chapter 4 Powering on the Device Please use the attached power cord in package to power on the device. Before powering your switch, make sure that: • The operating power supply is compliant with rated input standard. •... -
Page 10: Chapter 5 Device Management
PoE Switch Quick Start Guide Chapter 5 Device Management The device can be configured and managed through iVMS-4200 software, mainly including network parameter configuration, port configuration, link aggregation configuration, network topology display and so on. Note • This chapter will briefly introduce the device management through iVMS-4200 software. For other functions, please refer to User Manual of iVMS-4200 Software. -
Page 11: Adding Devices
PoE Switch Quick Start Guide Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 12 PoE Switch Quick Start Guide By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
-
Page 13: Chapter 6 Get More Information
PoE Switch Quick Start Guide Chapter 6 Get More Information iVMS-4200 Management Scan the QR code below for iVMS-4200 software operations. Hik-ProConnect Management Go to http://hik-proconnect.com or scan the QR code below for Hik-ProConnect operations. Hik-ProConnect for Installers Hik-Connect for Users... - Page 14 UD31402B...
