User Manual
PAK-M DX
PAK-M
Original user manual
EN
USER MANUAL
2024-04-17 (Working)
2130457 (00)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAK-M and is the answer not in the manual?

Questions and answers

Related Manuals for Nederman PAK-M

Summary of Contents for Nederman PAK-M

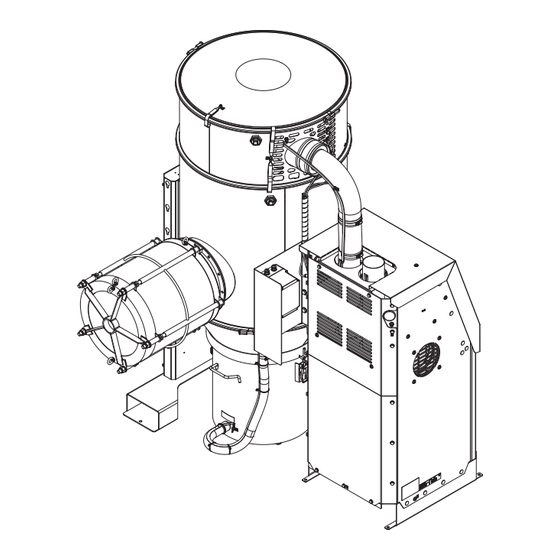

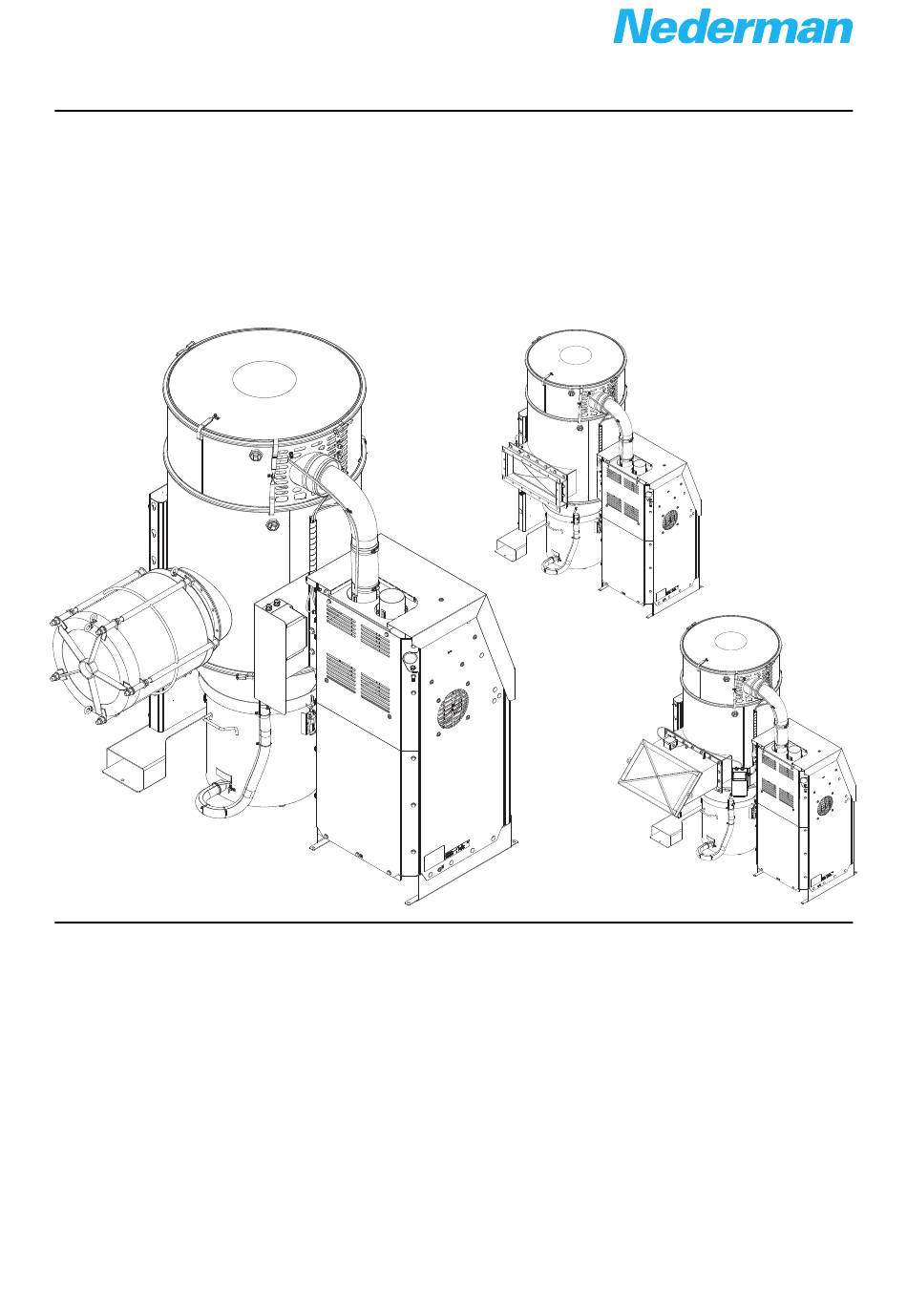

  • Page 1 User Manual PAK-M DX PAK-M Original user manual USER MANUAL 2024-04-17 (Working) 2130457 (00)
  • Page 2 PAK-M Trace back information: Workspace Main version a147 (not checked in) Published 2024-04-17 at 11:42:11 Skribenta version 5.6.016...

  • Page 3: Table Of Contents

    PAK-M specifics ..............................2 Safety ....................................Classification of important information ......................Overall PAK-M safety ............................3 PAK-M DX and ATEX ..............................Product marking ..............................Special Conditions for Safe Use "X" ......................... Type of Protection constructional safety “c” ....................Area classification Dust Separator ........................

  • Page 4: Declaration Of Conformity

    We, AB Ph. Nederman & Co., declare under our sole responsibility that the Nederman product: PAK-M Dust Separator DX (Part No. **, and stated versions of **) to which this declaration relates, is in conform- ity with all the relevant provisions of the following directives and standards:...

  • Page 5: Figures

    PAK-M Figures...
  • Page 6 PAK-M 1517 mm (59.7") 1017 mm (40.0") C-C 857 mm (33.74") Max. +7° 90° Max. -7° C-C 854 mm (33.6") 1517 mm (59.7")
  • Page 7 PAK-M 800 mm (31.5") 903 mm (35.6") 1354 mm (53.3") 1402 mm (55.2") 5 mm (0.2") C-C 6x 98 mm (3.86") 45° 4x 90° 540 mm (21.3") 102 mm (4.0") 640 mm (25.2") 132 mm (5.2") 150 mm (5.9")
  • Page 8 PAK-M 1A/D 45°...
  • Page 9 PAK-M GND1...
  • Page 10 PAK-M...
  • Page 11 PAK-M...
  • Page 12 PAK-M...
  • Page 13 PAK-M Capacity Pressure drop...

  • Page 14: Preface

    PAK-M 1 Preface NOTE! • For each variant of PAK-M: Manuals are sep- Thank you for using a Nederman product! arated into User Manuals, Installation and The Nederman Group is a world-leading supplier and Service Manuals, a Program Manual and ac- developer of products and solutions for the environ- cessory manuals.

  • Page 15: Safety

    • Each PAK-M system must be dimensioned in- dividually. To ensure that your system will be NOTE! safe, a risk analysis must be performed for Notes contain other information that is import- each installation and intended use.

  • Page 16: Pak-M Dx And Atex

    3.2 Special Conditions for Safe Use "X" When PAK-M DX is connected to its corresponding Va- PAK-M DX is designed to be a part of a complete ex- cuum and Control unit it fulfils the requirements for traction system; it usually includes a vacuum unit, the Vacuum and Control unit and control system as connected piping and a control system.

  • Page 17: Type Of Protection Constructional Safety "C

    3.4 Area classification Dust Separator mechanical components which fall under the scope of directive 2014/34/EU. The Dust Separator of PAK-M DX is marked with the WARNING! EX symbol and classified as 3D equipment according To maintain the high level of safety regard- to directive 2014/34/EU.

  • Page 18: Main Parts

    P1 with a fence, warning lines and signs, and is to be off limits during the time PAK-M is in operation. The area 13 Explosion protection system, see items 1A, 1B and shall be free of any flammable or combustible mater- 1C for options.

  • Page 19: Explosion Suppression

    Different main filters and secondary filters are avail- able, also with HEPA efficiency. Please refer to the manual for the flameless device supplied with PAK-M DX to find other information re- PAK-M DX is equipped with a secondary filter that garding safe use and service.

  • Page 20: Technical Data

    Class M according to EN 60335-2-69 - Area H14 5,18 m - Material H14 3 layers, polyester/glass fibre/polyester - Efficiency H14 HEPA H14 (99.995% MPPS) Protection class Dust Separator IP65 Protection class PAK-M DX IP54 Weight, approx: Depends on explosion protection system...
  • Page 21 96 weight-% Collecting bin volume Protection system limitations and dust data See "Data Sheet for Protection Systems, Sweden Manufacturing" delivered with your PAK-M DX. * New clean filters. See the Vacuum and Control unit User Manual for max pressure set point.

  • Page 22: Using Pak-M Dx

    • Use proper protective equipment where there is a risk for exposure to the dust. 6 Maintenance • Never run PAK-M DX without a main filter or a WARNING! Risk of personal injury bin bag inserted. • The explosion protection system must be •...

  • Page 23: Maintenance Schedule

    The bar in the main filer housing only lets you put the main filter in one position so 4 Make sure the inside of PAK-M and the connection that it is not blocking the explosion relief pipes are free from deposits. Build up of deposits venting panel on the inside.

  • Page 24: Tilting The Dust Separator

    Always check the main filter for damage when WARNING! Risk of personal injury replacing the secondary filter. • Avoid placing PAK-M in an area that requires Remove the lid from the outlet module. the Dust Separator to be tilted to access the Remove the knob on the back of the secondary fil- main filter, consider it a last resort.

  • Page 25: Servicing Atex Equipment

    2nd earth connection between with the Vacuum and Control unit switched the duct system and PAK-M and that it is prop- off. Replace it at the first sign of corrosion or erly earthed. Measure and verify contact between other damage.
  • Page 26 www.nederman.com...
