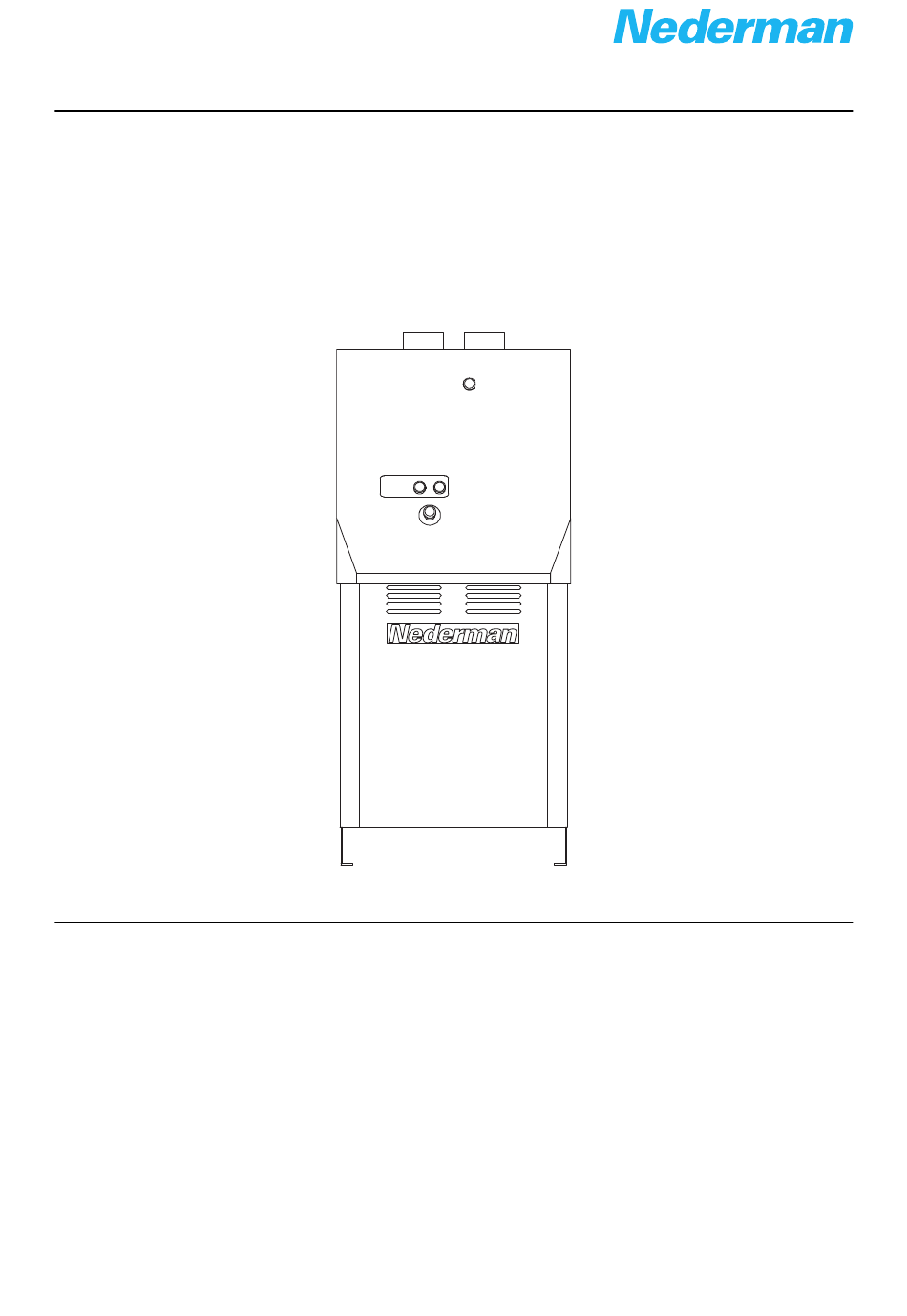

- Page 1 User Manual Vacuum and Control unit PAK-M Original user manual USER MANUAL 2024-04-17 (Working) 2130447 (00)
- Page 2 PAK-M Trace back information: Workspace Main version a147 (not checked in) Published 2024-04-17 at 11:39:19 Skribenta version 5.6.016...
-
Page 3: Table Of Contents
Declaration of Conformity ............................Figures ..................................... 1 Preface .................................... PAK-M specifics ..............................2 Safety ....................................Classification of important information ......................Overall PAK-M safety ............................3 Description ..................................Power consumption ............................Main parts ................................Control panel ............................... Accessories ................................. Pressure measuring points and connections .................... -
Page 4: Declaration Of Conformity
We, AB Ph. Nederman & Co., declare under our sole responsibility that the Nederman product: PAK-M (Part No. **, and stated versions of **) to which this declaration relates, is in conformity with all the rel- evant provisions of the following directives and standards:... -
Page 5: Figures
PAK-M Figures... - Page 6 PAK-M 218 mm (8.6") 155 mm (6.1") 586 mm (23.1") 632 mm (24.9") 11 mm (0.4") 530 mm (20.9")
- Page 7 PAK-M 500 mm 500 mm (19.7") (19.7")
- Page 8 PAK-M Capacity Shaft power...
-
Page 9: Preface
PAK-M 1 Preface NOTE! • For each variant of PAK-M: Manuals are sep- Thank you for using a Nederman product! arated into User Manuals, Installation and The Nederman Group is a world-leading supplier and Service Manuals, a Program Manual and ac- developer of products and solutions for the environ- cessory manuals. -
Page 10: Description

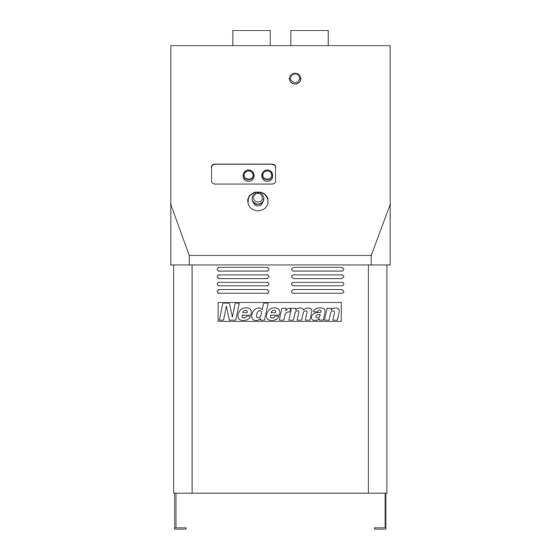

16 PT100 sensor (exhaust temperature) 3 Description 17 Acoustic enclosure PAK-M Vacuum and Control unit is complete with a dir- 18 Inlet ect-driven side channel fan fitted on a steel frame. 19 Outlet The Vacuum and Control unit is controlled by a Vari- able frequency drive (VFD), and has automatic start/ 20 Pressure measuring connection to point: P1, Ø... -
Page 11: Control Panel
Sec- tion 4.1 Controls Section 4.2 Signals. 3.5 Pressure measuring points and con- 3.4 Accessories nections PAK-M is prepared for Nederman accessories and cus- Section 3.2 Main parts. tomer connections. 3.6 Technical data Vacuum and Control unit Rated motor power... -
Page 12: Meaning Of Symbols
Power on/off Fastener used for warning grounding/bonding. • No active pilot signal means that PAK-M is in 4 Using PAK-M standby mode, waiting for a pilot signal. • An active pilot signal means that PAK-M is run- PAK-M has two operating modes: ning. -
Page 13: Controls
• If PAK-M is placed in a remote location, an ac- • Avoid using PAK-M with no or minimal air cessory with Nederman Insight capabilities is flow. -
Page 14: Maintenance
Only qualified service technicians - electrical, local regulations, product knowledge and so 4 Check that all signs/markings regarding safe op- on - using the relevant PAK-M manuals, may eration are in place and that the personnel know perform service and maintenance on the Vacu- them. -
Page 15: Recycling
The product has been designed for component mater- ials to be recycled. Different material types must be handled according to relevant local regulations. Con- tact the distributor or Nederman if uncertainties arise when scrapping the product at the end of its service life. - Page 16 www.nederman.com...
