Wen 20731BT Instruction Manual

20v max cordless brushless pruner shears
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

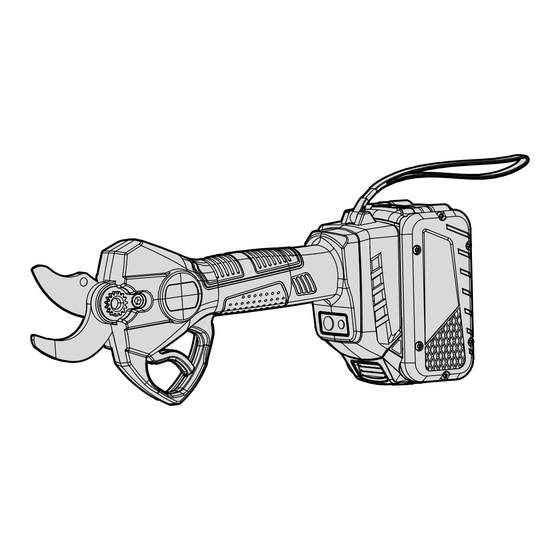

MODEL 20731, 20731BT
20V MAX CORDLESS
BRUSHLESS PRUNER SHEARS
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-847-429-9263 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20731BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 20731BT

Summary of Contents for Wen 20731BT

  • Page 1 1-847-429-9263 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    20V 5A Quick Charger (Model 20201Q) WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools compatible with the included battery and charger, visit wenproducts.com and search model number 20202 (2Ah), 20204 (4Ah),...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing this WEN product. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this op- erator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Pruner Shear Safety Warnings

    PRUNER SHEARS SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. DANGER! Keep hands away from the blade. Contact with the blade will result in personal injury. PRUNER SHEARS SAFETY 11.

  • Page 7: Electrical Information (Charger)

    ELECTRICAL INFORMATION (CHARGER) DOUBLE-INSULATED CHARGER The charger’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal components with protecting insulation.

  • Page 8: Battery & Charger Safety Warnings

    Never carry the charger by its cord or yank it by the cord battery chemicals. If the battery or charger are damaged, to disconnect it from the receptacle. Keep the cord away call WEN customer service at 1-847-429-9263 for as- from heat, oil and sharp edges. Make sure the cord will sistance.
  • Page 9 BATTERY & CHARGER SAFETY WARNINGS ABOUT THE BATTERY 1. The battery pack has to be charged completely before you use the tool for the first time. 2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently. 3.

  • Page 10: Before Operating

    **Oil Bottle (1) *NOTE: Battery and charger only included with model 20731. 20731BT does not include a battery or charger. **NOTE: Oil is not included with this tool. The blade comes pre-oiled from the factory and only needs to be oiled...

  • Page 11: Know Your Pruner Shears

    TOOL PURPOSE Easily remove small branches with your WEN 20V Pruner Shears. Refer to the following diagrams to become fa- miliarized with all the parts and controls of your shears. The components will be referred to later in the manual for assembly and operation instructions.

  • Page 12: Assembly & Adjustments

    NOTE: The battery pack and charger are not included with model 20731BT. 1. Connect charger to a 120V, 60Hz AC outlet. The green lights on the charger will illuminate, indicating that the charger is powered.

  • Page 13: Operation & Maintenance

    OPERATION OPERATING THE PRUNER SHEARS Fig. 4 1. Install the battery pack. Make sure that the battery has a sufficient charge. 2. Press the power button (Fig. 4 - 1). The LED indicator light (Fig. 4 - 2) will illuminate and the tool will beep twice when it has been powered ON.

  • Page 14: Maintenance

    CHANGING THE BLADE Fig. 1 NOTE: Only use genuine WEN replacement blades (part no. 20731- 010). Replacement blades are available for purchase at wenproducts.com. WARNING! Switch the tool OFF and remove the battery before chang- ing the blade.
  • Page 15 MAINTENANCE WARNING! To avoid accidents, turn the tool OFF and remove the battery from the battery terminal before cleaning, adjusting, or performing any maintenance or lubrication work. LUBRICATING THE BLADE Fig. 3 For easier operation and a longer blade life, lubricate the blade before and after each use.
  • Page 16 WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts. Use of other parts may be hazardous or induce product failure.

  • Page 17: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
  • Page 18 EXPLODED VIEW & PARTS LIST PART NO. DESCRIPTION QTY. PART NO. DESCRIPTION QTY. Countersunk Socket Primary Planetary Gear 20731-001 20731-031 Flat-head Bolt, M4x10 Carrier 20731-003 Pivot Pin 20731-032 Planetary Gear 20731-004 Lock Nut 20731-033 Motor Pinion 20731-005 Washer 20731-034 Ring Gear 20731-006 Magnet, 5x3mm 20731-035...

  • Page 19: Warranty Statement

    (2) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for pro- fessional or commercial use.
  • Page 20 THANKS FOR REMEMBERING V. 2024.01.15...

This manual is also suitable for:

20731

Table of Contents
