Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.

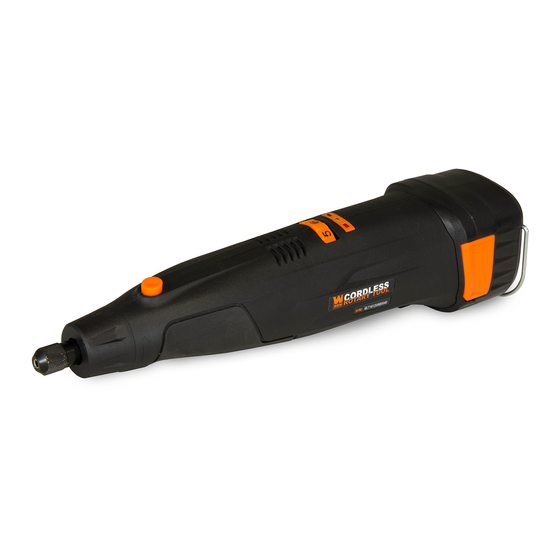

CORDLESS ROTARY TOOL
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
VARIABLE SPEED
(M-F 8AM-5PM CST)
Model # 2309
bit.ly/WENvideo
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wen 2309
Summary of Contents for Wen 2309
- Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.
- Page 2 Electrical Information Know Your Rotary Tool Assembly and Adjustments Operation Maintenance Exploded View and Parts List Warranty PRODUCT SPECIFICATIONS Model Number: 2309 Rated Voltage: 9.6V DC Battery Model Number: 2309B Battery Pack Capacity: 1 Ah NiMH Charger Model Number: 2309C Charger Specs: 120V, 60 Hz, 0.5A...
- Page 3 You know the drill. The purpose of the following safety symbols is to attract your attention to possible dangers. We don’t want any of our beloved WEN customers accidentally injuring themselves. The safety symbols and the explanations with them deserve your careful attention and understanding. The safety warnings do not by them- selves eliminate any danger.
- Page 4 GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, knowing how your item works, and not doing dumb stuff on purpose. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug the battery of your tool until the fol- lowing steps have been read and understood.
- Page 5 GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.
- Page 6 SAFETY RULES FOR BATTERIES 10. Do not operate the charger or the battery if it has received a sharp blow, either from being dropped or damaged. Take it to a qualified service technician before attempting to use. 11. Do not disassemble the charger or the battery pack. Take these to a qualified service technician when service or repairs are required.
- Page 7 SAFETY RULES FOR CHARGERS CHARGER Protect the battery charger and its cord from damage. Keep the charger and its cord away from heat, oil and sharp edges. Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded appliances.
- Page 8 ELECTRICAL INFORMATION IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is properly installed and grounded in accordance with ALL local codes and ordinances.
- Page 9 KNOW YOUR ROTARY TOOL CORDLESS ROTARY TOOL ACCESSORIES (B) 1 - Rotational speed control 12 - 6 HSS drills ( Ø0.8mm, Ø 1mm, Ø1.2mm, Ø1.4mm, Ø1.6mm, 2 - Battery-operated LED Ø2.0mm) 3 - Battery pack release button 13 - 2 Mandrels for mounting tools 3a - Battery pack 14 - 3 Polishing wheels 4 - Metal stirrup hanger...
- Page 10 OPERATION CHARGING THE BATTERY PACK A battery pack that has been unused for a while or a pack that has never been charged before must be charged completely before using. The battery pack requires roughly 3 to 5 complete charging and draining cycles before it can reach its full potential.
- Page 11 OPERATION BIT SELECTION FUNCTION ACCESSORY APPLICATION Drilling HSS Drill (#12) Drilling wood (Fig. C) Various tasks such as hollowing out, gouging, shap- Milling Milling Bits (#21) ing, slotting or grooving Engraving Engraving bits (#20) Markings (Fig. D) Derusting Metal Brush (#16) Derusting (see Fig.
- Page 12 3. ENSURE that the ventilation slots are not blocked to prevent overheating. 4. REMOVE AND DISPOSE of damaged attachments. 5. CHECK that the locking jaw is correctly aligned before use. EXPLODED VIEW AND PARTS LIST No. Part Number Description 2309-001 Locking Sleeve 2309-002 Collet Nut 2309-003 Collet...
- Page 13 EXPLODED VIEW AND PARTS LIST...
- Page 14 LIMITED ONE YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of one (1) year from date of purchase.
