Wen 2307 Manual

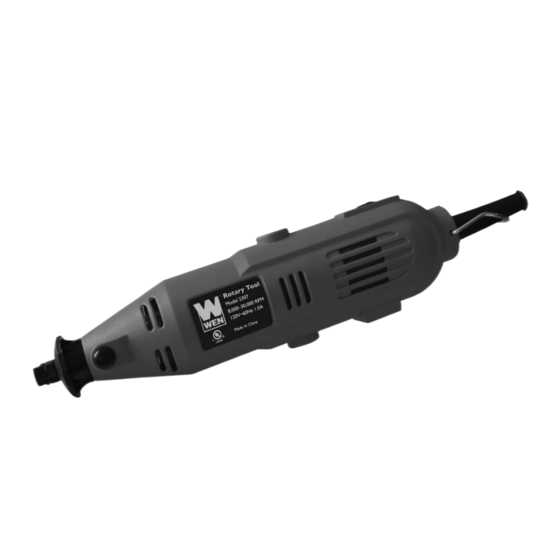

Variable speed rotary tool
Hide thumbs Also See for 2307:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
Variable Speed
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Rotary Tool
(M-F 8AM-5PM CST)
Model # 2307
bit.ly/WENvideo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2307 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 2307

Summary of Contents for Wen 2307

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 2: Table Of Contents

    Know Your Rotary Tool Assembly Operation Maintenance Exploded View and Parts List Warranty Product Specifications Model Number: 2307 Motor: 120 V AC, 60 Hz, 1A, AC only Motor Speed: 8000-30000 RPM Collet Size: Supplied with 3/32” & 1/8” Collets Weight:...

  • Page 3: General Safety Rules

    You know the drill. The purpose of the following safety symbols is to attract your attention to possible dangers. We don’t want any of our beloved WEN customers accidentally injuring themselves. The safety symbols and the explanations with them deserve your careful attention and understanding. The safety warnings do not by them- selves eliminate any danger.
  • Page 4 GENERAL SAFETY RULES 8. WEAR A FACE MASK OR DUST MASK to fight the dust produced during operation. WARNING: Dust generated from certain materials can be hazardous to your health. Always operate the tool in a well-ventilated area and provide for proper dust removal. Use dust collection systems when- ever possible.

  • Page 5: Rotary Tool Safety

    ROTARY TOOL SAFETY 1. CHECK THE WORKPIECE for any cracks, bumps, nails or obstructions before commencing operation. 2. NEVER press in the locking pin when the rotary tool is running. 3. DO NOT cut any workpiece larger than the rotary tool’s capacity. Always maintain a firm grip on the rotary tool. 4.

  • Page 6: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS: IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 7: Know Your Rotary Tool

    KNOW YOUR ROTARY TOOL 100-PIECE ACCESSORY KIT COMPONENTS 1. Collet Nut 1. Bit Changing Spanner 7. Dum Sander 2. Collet Lock Wrench 8. Cut-off Wheels (20) 3. Brush Cover (2) 2. Felt Polishing Wheels (2) 9. Sander Bands (4) 4. Speed Dial 3.

  • Page 8: Assembly

    ASSEMBLY ATTACHING FLEX SHAFT: NOTE: Flex Shaft attachment is not included for this model. If you would like to purchase the attachment, please visit www.wenproducts.com. FOR VIDEO INSTRUCTIONS VISIT: http://bit.ly/wenflexshaft 1. Unscrew the black threaded collar at the end of the rotary tool. 2.

  • Page 9: Operation

    OPERATION Read and thoroughly understand all instructions and safety information before operating this rotary tool. Failure to do so may cause serious injury or death. Do not allow anyone to operate this tool who has not read this manu- al. As with all power equipment, a rotary tool can be dangerous if assembled or used improperly. Do not operate this power tool if you have doubts or questions concerning safe operation.
  • Page 10 OPERATION OPERATING THE ON/OFF SWITCH: 1. The power switch is located on the underside of the handle. It has O (OFF) and I (ON) settings. To switch on the tool, flip it to I (the ON position). 2. To switch off the tool, simply flip the switch to O (the OFF position). Be certain the tool is in the OFF position when not in use and during all maintenance activities.

  • Page 11: Maintenance

    OPERATION ACCESSORY EXPLANATION APPLICATION Felt Polishing Wheel Finishing processes for smoothing a work- Cleans, polishes & buffs metal, wood, and plastic. Attached to screw mandrel. piece’s surface. High Speed Cutter Fast, lightweight cuts for carving and Carves, cuts, and slots in wood, plastics engraving.

  • Page 12: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST...
  • Page 13 EXPLODED VIEW AND PARTS LIST Part No. Description Qty. 2307-001 Collet Nut 2307-002 Brass Collet 2307-003 Bearing 626zz 2307-004 Rotor 2307-005 Bearing 698zz 2307-006 Stator 2307-007 Prevent Spring 2307-008 Spindle Lock Button 2307-009 Locking Sleeve 2307-010 Brush 2307-011 Brush Spring...

  • Page 14: Warranty

    LIMITED ONE YEAR WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of one (1) year from date of purchase.
