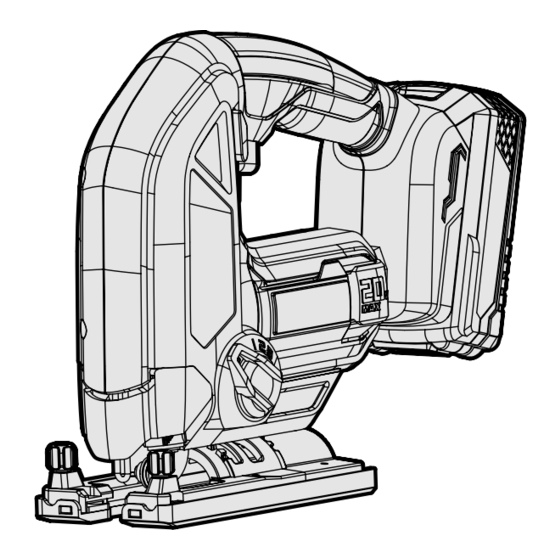

20v max brushed jigsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL 20661, 20661BT
20V MAX
BRUSHED JIGSAW
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20661BT and is the answer not in the manual?

Questions and answers

Related Manuals for Wen 20661BT

Summary of Contents for Wen 20661BT

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    20V 5A Quick Charger (Model 20201Q) WEN plans to continue to add more items to our 20V line. For an up-to-date list of the 20V cordless tools com- patible with the included battery and charger, visit wenproducts.com and search model number 20202 (2Ah) or...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Jigsaw. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this opera- tor’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Jigsaw Safety Warnings

    JIGSAW SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. JIGSAW SAFETY 1. WORK ENVIRONMENT. Do not operate the tool in wet 6.
  • Page 7 JIGSAW SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. JIGSAW SAFETY (CONT.) 14. CLEANING THE TOOL. When cleaning a tool be care- 12.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION (CHARGER) DOUBLE-INSULATED CHARGER The charger’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal components with protecting insulation.

  • Page 9: Battery & Charger Safety Warnings

    Never carry the charger by its cord or yank it by the cord battery chemicals. If the battery or charger are damaged, to disconnect it from the receptacle. Keep the cord away call WEN customer service at 1-800-232-1195 for as- from heat, oil and sharp edges. Make sure the cord will sistance.
  • Page 10 BATTERY & CHARGER SAFETY WARNINGS ABOUT THE BATTERY 1. The battery pack has to be charged completely before you use the tool for the first time. 2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently. 3.

  • Page 11: Before Operating

    UNPACKING & PACKING LIST UNPACKING Carefully remove the jigsaw from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and accessories.

  • Page 12: Know Your Jigsaw

    TOOL PURPOSE Easily cut curves and shapes in wood or metal with your WEN Jigsaw. Refer to the following diagrams to become familiarized with all the parts and controls of your jigsaw. The components will be referred to later in the manual for assembly and operation instructions.
  • Page 13 ASSEMBLY & ADJUSTMENTS WARNING! To avoid injury from accidental startups, make sure that the power trigger lock is engaged and the battery is removed from the jigsaw. INSTALLING AND REMOVING THE BLADE Fig. 1 1. Rotate the blade clamp lock (Fig. 1 - 1) counterclockwise to loosen the blade.

  • Page 14: Operation & Maintenance

    OPERATION STARTING THE JIGSAW Fig. 5 1. Push the trigger lock (Fig. 5 - 1) to the left or right to unlock the power trigger. NOTE: The jigsaw will not start if the trigger lock is in the center position. 2.
  • Page 15 OPERATION ADJUSTING THE BEVEL ANGLE Fig. 7 The base plate may be tilted to allow angle cuts up to 45 degrees in either direction. 1. Unlock the angle adjustment lever (Fig. 7 - 1). 2. Adjust the base plate to the desired angle and relock the angle adjustment lever.

  • Page 16: Maintenance

    MAINTENANCE WARNING! To avoid accidents, make sure the power switch is in the OFF position and unplug the tool from the electrical outlet before cleaning or performing any maintenance. Servicing of the tool must be performed by a qualified technician. ROUTINE INSPECTION 1.

  • Page 17: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
  • Page 18 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 20202 Battery Pack Tool Lifting Bracket 20661-034 Wheel 20661-002 Battery Pack Socket 20661-035 Tool Reset Spring 20661-003 Internal Wiring Tool Lifting Bracket 20661-004 Switch 20661-036 Wheel Shaft 20661-005 Self-Tapping Screws Knife Lifting Support...

  • Page 19: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
  • Page 20 THANKS FOR REMEMBERING V. 2022.08.02...

This manual is also suitable for:

20661

Table of Contents
