Wen 23114 Manual

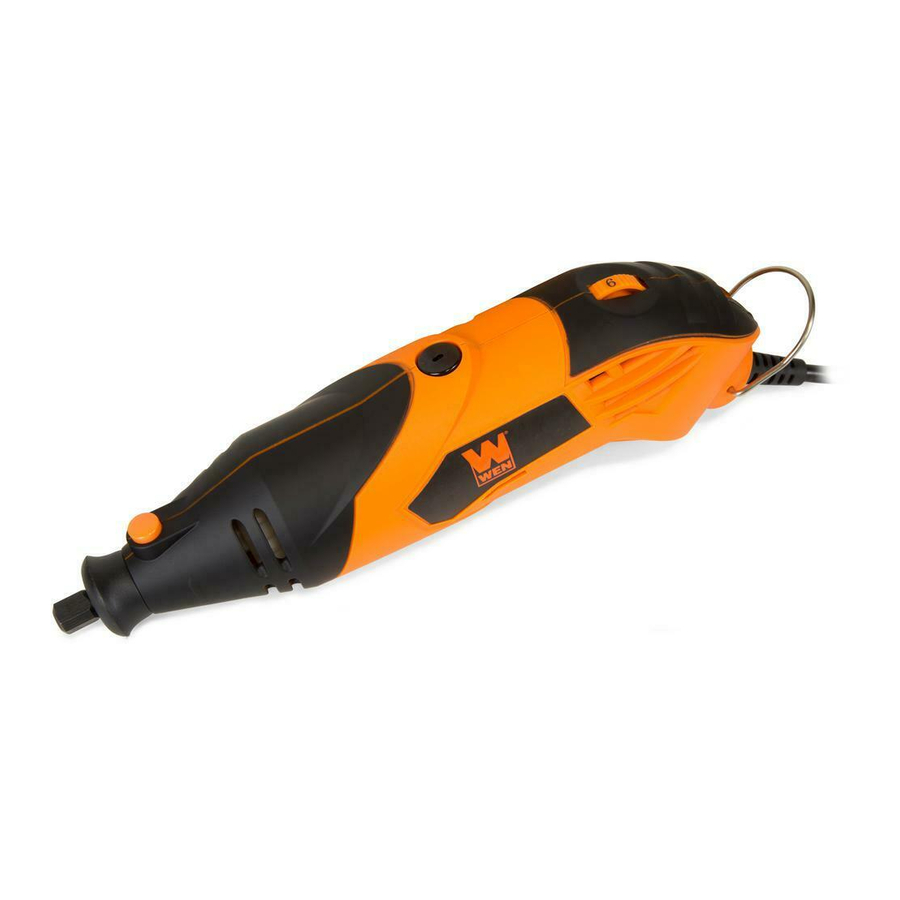

Variable speed rotary tool with case and flex shaft
Hide thumbs
Table of Contents

Advertisement

Quick Links

3065544
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If
you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
Please refer to wenproducts.com for the most up-to-date instruction manual.
VARIABLE SPEED
ROTARY TOOL
WITH CASE AND FLEX SHAFT
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Model # 23114
bit.ly/wenvideo
(M-F 8AM-5PM CST)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 23114 and is the answer not in the manual?

Questions and answers

David Ebri
May 27, 2025

I never received the flex shaft collet and related accessories with my purchase on Amazon. Even my bits were incomplete.

0

Related Manuals for Wen 23114

Summary of Contents for Wen 23114

  • Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    9-7/8 x 2-1/3 x 2-1/5 Product Weight: 1.4 lbs Compatible Rotary Tool Accessories Kits: 150-Piece (Model 230151A), 282-Piece (Model 230282A), 320-Piece (Model 230321A), 327-Piece (Model 230327A) Your rotary tool is also compatible with the WEN 2305-KC Keyless Rotary Tool Chuck, available at wenproducts.com.

  • Page 3: Safety Introduction

    SAFETY INTRODUCTION Thanks for purchasing the WEN Rotary Tool. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. This manual provides information regarding potential safety concerns, as well as helpful assembly and operating instructions. Safe operation of this tool requires that you read and understand this operator’s manual and all labels affixed to the tool.

  • Page 4: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instruc- tions may result in electric shock, fire and serious injury. To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood.
  • Page 5 GENERAL SAFETY RULES POWER TOOL USE AND CARE 1. Avoid accidental start-ups. Make sure the power switch is in the OFF position before connecting the plug to a power source or carrying the tool. 2. Check power tool for damaged parts. Check for misalignment of moving parts, jamming, breakage, improper mounting, or any other conditions that may affect the tool’s operation.

  • Page 6: Electrical Information

    ELECTRICAL INFORMATION DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated tools do not need to be grounded.

  • Page 7: Rotary Tool Safety Rules

    ROTARY TOOL SAFETY RULES WARNING: Read and understand all warnings, cautions and operating instructions before using this equipment. Failure to follow all instructions listed below may result in personal injury and tool damage. WORK ENVIRONMENT • Do not operate the tool in wet or damp conditions; doing so significantly increases the risk of electrical shock.

  • Page 8: Know Your Rotary Tool

    ROTARY TOOL SAFETY RULES (Continued) TURNING ON THE TOOL Before turning on the rotary tool, ensure that it is completely clear of the workpiece. Let the tool reach full speed before making contact with the workpiece. DURING OPERATION • Do not apply excessive pressure to the tool or attempt to make an excessive depth of cut. Overstressing the tool may cause kickback and damage the tool and accessories.

  • Page 9: Know Your Accessories

    KNOW YOUR ACCESSORIES INCLUDED ACCESSORIES: Description Qty. Description Qty. Collet (1/8”, 3/32”, and 1/16”) Wrench Grinding Bits (1/8”) Sanding Bands Drill Bits (1/8”, 3/32”, and 1/16”) Felt Polishing Wheel Sanding Drum Mandrel Sanding Disc HSS Cutter (1/8”) Cut-Off Wheel Drywall Cutting Bit Dressing Stone Drill Guide Collar Screw Mandrel (1/8”)
  • Page 10 KNOW YOUR ACCESSORIES Refer to the chart below for explanations and recommended applications for your rotary tool accessory bits. Accessory Explanation & Applications Collet For holding a rotary tool bit in place. Your tool comes with Ø1/8", Ø3/32", (Ø1/8", Ø3/32", Ø1/16"...
  • Page 11 Use to lock the spindle of the flex shaft when changing bits on the flex shaft. Your rotary tool is compatible with the WEN 2305-KC Keyless Rotary Tool Chuck (not included), available for purchase at wenproducts.com. The keyless chuck will allow you to quickly and easily change accessories without changing collets.

  • Page 12: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING: To avoid injury from accidental startups, always ensure that the tool is switched OFF and unplugged from the power supply before making adjustments or changing accessories. INSTALLING WHEEL/DISC ACCESSORIES (Fig. 1) Small Screw Mandrel Sanding Disc or Loosen and remove the screw at the top of the small screw man- Cut-Off Wheel drel.
  • Page 13 ASSEMBLY AND ADJUSTMENTS ATTACHING THE FLEX SHAFT (Fig. 5 - 14) FOR VIDEO INSTRUCTIONS ON ATTACHING THE FLEX SHAFT, VISIT: http://bit.ly/wenflexshaft 1. Unscrew and remove the locking collar from the end of the rotary tool (Fig. 5). 2. Use the 1/8" collet for attaching the flex shaft. Press down on the spindle lock button (Fig.

  • Page 14: Operation

    OPERATION WARNING: Read and thoroughly understand all instructions and safety information before operat- ing this rotary tool. Failure to do so may cause serious injury. ADJUSTING THE SPEED OF THE ROTARY TOOL (Fig. 15) The variable speed adjustment wheel on the top of the rotary tool is used to set the desired rotation speed.

  • Page 15: Maintenance

    1/8 of an inch or when the tool stops working. NOTE: Replacement carbon brushes (Model 23114-010) can be purchased from wenproducts.com. Only genuine WEN replace- ment brushes designed specifically for your tool should be used.

  • Page 16: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST Part No. Description Part No. Description 23114-001 Collet Nut 23114-012 Variable Speed Dial 23114-002 Collet 23114-013 Stator 23114-003 Nose Cap 23114-014 Variable Speed Board 23114-004 Spindle Lock Button 23114-015 Switch 23114-005 Ø 8 Base 23114-016...
  • Page 17 (1) year from date of purchase. Ninety days for all WEN products, if the tool is used for professional use. SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and,...
