compulocks 333B Assembly Instructions

Mast Stand
SKU:333B/333W
Assembly Instructions

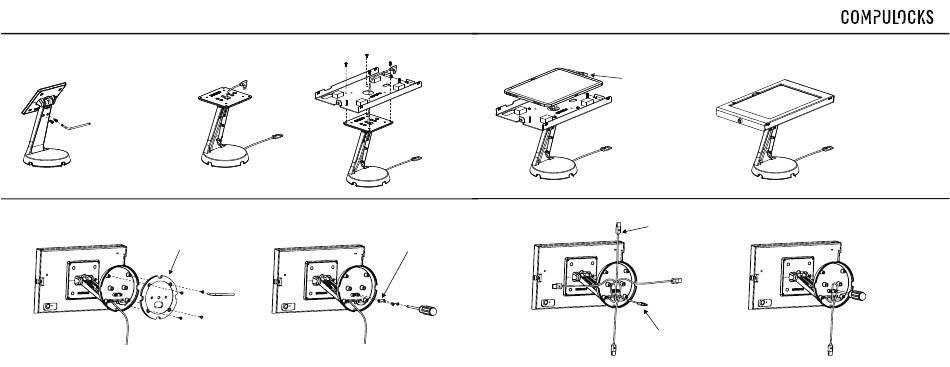

Through Stand Cable Assembly
2
1
REMOVE FRONT COVER.
USE T-20 TORX
WRENCH (PROVIDED)
TO REMOVE M4 X 10mm
TORX FLAT HEAD SCREWS
6
REMOVE BOTTOM PLATE.
USE T-20 TORX WRENCH (PROVIDED)
TO REMOVE M4 X 10mm SCREWS
©Compulocks Brands Inc. All Rights Reserved
3
ROUTE CHARGING ROUTE CHARGING CABLE
CABLE THROUGH THROUGH ENCLOSURE
OR VESA MOUNT.
STAND AS SHOWN
INSTALL TO STAND USING
M4 X 8mm PHILLIPS
PAN HEAD SCREWS
(PROVIDED)
7
REMOVE CABLE CLAMP
www.compulocks.com | online@maclocks.com | +1 800-948-0344
4
ATTACH CHARGING CABLE
TO TABLET, LEAVE A SMALL LOOP
OF CABLE BENEATH THE TABLET
8
ROUTE CHARGING CABLE ABOVE COUNTER
THROUGH CLAMP AREA ROUTING - 4 POSITIONS
THROUGH COUNTER ROUTING
5
INSTALL THE REST OF THE ENCLOSURE
OR VESA MOUNT
PER THEIR INSTRUCTIONS
9
REINSTALL CABLE CLAMP
DO NOT OVER TIGHTEN
LEAVE SLACK IN POWER CORD
BELOW CLAMP
Sheet 1 of 2
