Speakman SM-Regency Series Installation, Maintenance & Operation Instructions

SM- Regency/Royale Valve, Showerhead, Tub Spout, & Combo Series
Installation, Maintenance & Operation Instructions
DESCRIPTION
Speakman Sentinel Mark II Regency/Royale concealed anti-scald balanced pressure shower /bath valve & combinations. Chrome
plated brass wall plate (Regency). Chrome plated plastic wall plate (Royale). Chrome plated brass lever handle. Adjustable
temperature limit stop. Brass body. Piston type pressure balancing/ceramic regulating cartridge assembly with built-in check

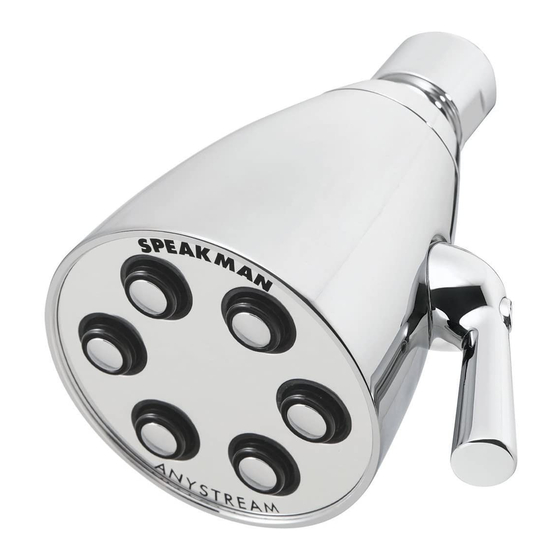

valves. Can be installed back to back. Roughing-in template. S-2270-AF COSMOPOLITAN® showerhead (If applicable), S-
2280-AF Anystream wall mounted showerhead (If applicable), or VS-100 Handheld Shower (If applicable) with flow control
device reduces flow to 2.5 GPM/9.46 LPM maximum to meet existing ASME A112.18.1/CSA B125.1 Standard. Chrome plate
brass shower arm and wall flange (If applicable). Chrome plated tub spout (If applicable). Four port valve with ½" female copper
sweat inlets and shower outlet. ½" NPT female tub outlet. Meets ASME A112.18.1/CSA B125.1 & ASSE 1016 standards.
SPECIFICATIONS
SUPPLY: ½" FEMALE COPPER SWEAT INLETS & SHOWER OUTLET; ½" NPT FEMALE TUB OUTLET (VALVE)
FLOW RATE: 2.5 GPM/9.46 LPM MAX. (SHOWERHEAD AND/OR HANDHELD SHOWER, IF APPLICABLE)
SHIPPING WEIGHT: 3.5 LBS (SM-3000)
OPTIONS

1 -
S-2251 Showerhead

2 -
S-2252-AF Showerhead

2VR -
S-2252-AF Vandal
Resistant Showerhead

3 -
S-2253-AF Showerhead

7 -
S-2291-AF Showerhead
INSTALLATION INSTRUCTIONS
Important- Read these instructions before installing the valve. Use the correct "Rough-in Diagram" for the unit that is being
installed. Maximum water pressure: 125 PSI static; minimum water pressure: 20 PSI flowing; maximum supply temperature: 160° F;
minimum supply temperature: 40° F. Use a suitable sealant on all threaded connections and when soldering, it is recommended to
remove the integral stop valve parts (If applicable) and VC/DIV cartridge (If applicable). The valve rough-in adjustments are 2-1/2"
to 3-1/2" from the finished wall to the centerline of the hot & cold inlets of the valve body.
1) Referring to the correct "Rough-in Diagram" for the unit that is being installed
(See the back page or the separate insert sheet), install the hot & cold supply
lines for the valve, making sure they are on an accurate horizontal plane.
Taking the valve assembly, making sure the "UP" on the valve bonnet is in the
up position, connect the hot supply line to the left side of the valve & the cold
supply line to the right (marked "BLUE") side of the valve. Make sure the

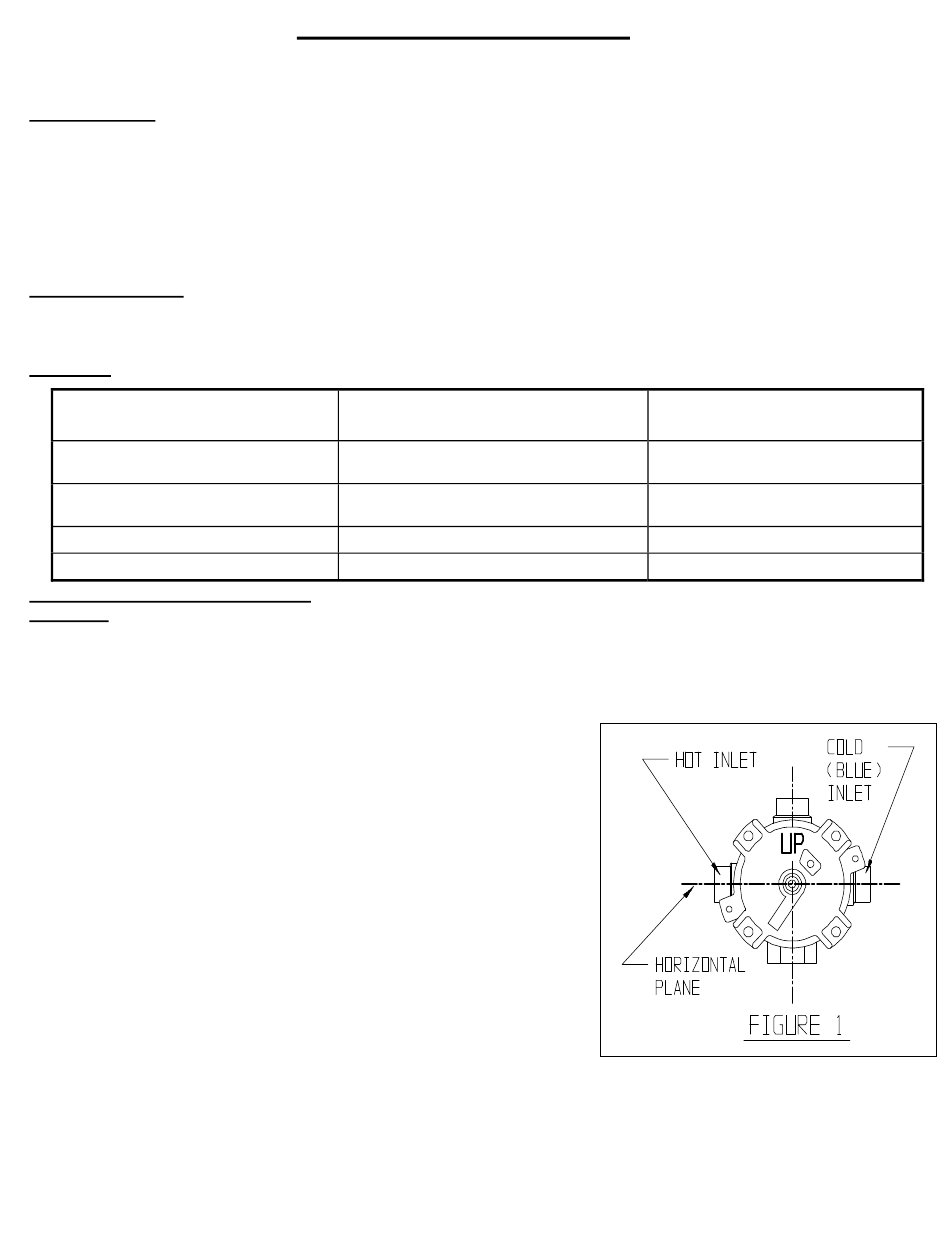

valve is straight, level, & positioned properly in the wall (See Figure 1). See
Page 2 for "Back-To-Back" valve installation instructions.
2) Slip the rough-in template over the valve control spindle. If the opening in the
wall is smaller then the outside diameter of the template, trace the outside
diameter of the template, remove the template, and recut the opening in the
wall. Slip the template onto the valve again until the template bottoms out on
the top of the valve bonnet (See Figure 2). Note- When installing a valve with
the built-in volume control/diverter feature, make sure the template is
positioned so the brass "VC/DIV" spindle is in the relieved area of the
template. The finished wall should fall between the minimum and maximum
limits of the template if the valve has been installed properly. Leave the
template in place if the finished wall has to be installed. The template will
insure the proper size opening for repair accessibility, as well as protect the
valve from damage during the finished wall installation.
3) Install the rough piping and transfer valve (If applicable) to the shower and/or tub outlets of the valve. If the installation is
only using one outlet, be sure to plug the other outlet with the provided pipe plug. Check connections for leaks. If applicable,
construct the finished wall.
PAGE 1
SPEAKMAN COMPANY

4 -
S-2220-AF Showerhead

6 -
S-2288-AF Showerhead

PC –
Polish Chrome Handheld
Shower (Combo w/VS-100 Only)

9 -
S-2292-AF Showerhead

IS -
Integral Stops

AP -
Anchor Plate (S-2280-AF
Showerhead Only)

BJ -
Ball Joint (S-2280-AF
Showerhead Only)

VH-
White Vinyl Hose (Combo
w/Handheld Shower Only)

LH -
Less Showerhead

92-3098 R-1
02/10
