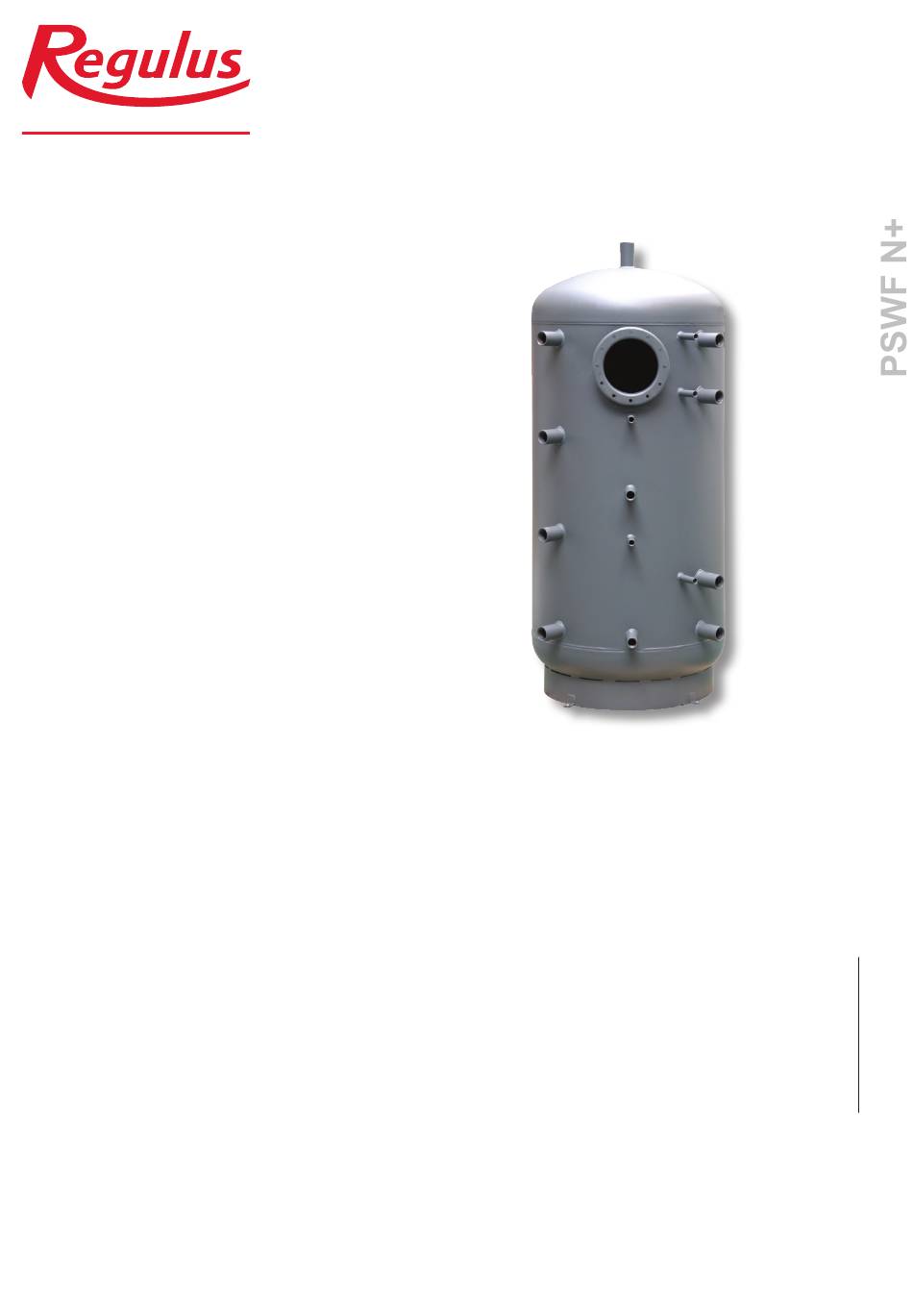

- Page 1 Installation and Operation Manual THERMAL STORES PSWF 300 N+, PSWF 500 N+, PSWF 800 N+, PSWF 1000 N+, PSWF 1500 N+ and PSWF 2000 N+ PSWF N+...
- Page 2 CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packaging ............................2 General Information ............................3 Technical Data and Dimensions ........................4 Operation ................................ 5 Typical Layout Example with Thermal Store ....................6 Installation and Commissioning ........................
- Page 3 When more heat sources shall be combined, it is recommended to use a smart controller, e.g. Regulus IR, for both the source and load sides of a heating circuit, i.e. also for charging and discharging the thermal store.
- Page 4 3 - Technical Data and Dimensions Dimensions TAPPINGS ØD1 pos. connection ØD Heat sources G 6/4" F G 6/4" F Heating system G 6/4" F G 6/4" F Control and safety G 1/2" F G 1/2" F G 1/2" F G 1/2"...
- Page 5 4 - Operation This thermal store is designed to accumulate thermal energy in domestic or industrial applications, however always in sealed pressure circuits with forced circulation. In the thermal store, heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating elements.
- Page 6 6 - Installation and Commissioning Installation shall meet valid rules and may be done by qualified staff only. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g.
- Page 7 Installing Insulation 1. Put the bottom insulation under the tank and place the tank following installation instructions. 2. Wrap the insulation around the tank carefully. Check that the insulation adheres to its body perfectly. This can be reached by rubbing and patting the insulation by hand from its center evenly in both directions until the insulation adheres to the tank’s surface completely and no bubbles are left.
- Page 8 This product is covered by warranty under the conditions listed in this Manual and in compliance with the Warranty Certificate. A Warranty Certificate is an integral part of this accumulation tank scope of supply. v1.2-12/2022 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
