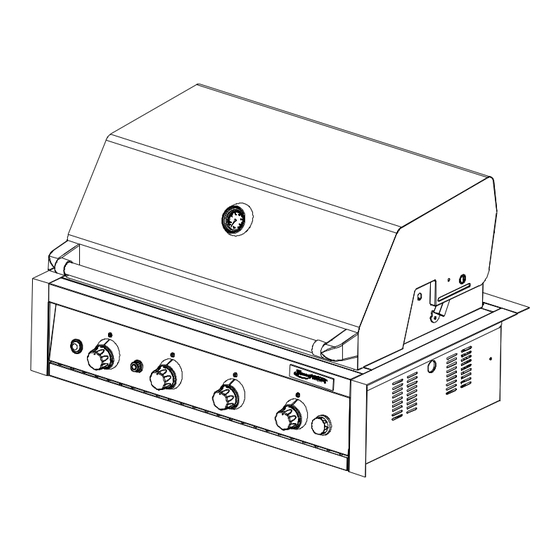

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Grand Hall BCR08ALP090 Owner's Manual Shop genuine replacement parts for Grand Hall BCR08ALP090 Find Your Grand Hall Grill Parts - Select From 203 Models -------- Manual continues below --------...
-
Page 2: Primary Safety Warnings
Replacement of Damaged or Missing parts properly assembled, installed and maintained. Ÿ visit www.grandhall.com or call: Use your grill at least 3 feet away from any wall or surface. Use your grill at least 3 feet 1-877-934-7455... -
Page 3: Table Of Contents
Table of Contents WARNING Primary Safety Warnings ......1-3 Pre-Assembly Instructions ......3 • LPG models must be used with Liquid Propane Part Diagrams and Lists ......4-8 Gas and the regulator assembly supplied. Assembly Instructions.......9-11 Natural Gas models must be used with Natural LP Gas Tank Installation ...... -
Page 4: Pre-Assembly Instructions
Pre-Assembly Instructions For Your Safety PRE-ASSEMBLY Congratulations on your selection of one of the finest outdoor kitchen appliances available. Your Grill is Read and perform the following pre-assembly instruc- equipped with the unique Crossray Infrared Cooking tions: System® by Grand Hall, which offers restaurant style grilling performance. -
Page 5: Part Diagrams And Lists
Hardware Parts List for Models BCR08ALP090 & BCR08ANG090 PART # PART DESCRIPTION PURPOSE OF PART Already packed with the Trim Panel S182G03081 Pan Head Screw 3/16"x1/2" Install the Trim Panel S182G04081 Pan Head Screw 1/4"x1/2" Already Installed in the Bowl Rear Panel S182G03081 Pan Head Screw 3/16"x1/2"... - Page 6 Parts Diagram for Model BCR08ALP090 & BCR08ANG090...
- Page 7 Parts List for Model BCR08ALP090 & BCR08ANG090 DESCRIPTION Part # Lid Assembly Y0130016 Lid Handle Bracket P00303016E Lid Handle P00205025B Lid Handle Heat Insulating Spacer P06801002A Tem perature Gauge Seat P00614015A Tem perature Gauge P00601251A Protective Pad P05518002I Cooking Rack/Secondary P01516026E Cooking Grid P01615036H...
- Page 8 Parts List for Model BCR08ALP090 & BCR08ANG090 Grease Tray Heat Shield, Upper P06903065A Grease Tray Heat Shield, Lower P06903066A Grease Tray Set Y0270019 Wheel for Grease Tray P05516137M Manifold, Rear P05005301J Extension Fitting/Outlet (NG) P03901013A Regulator (NG) P03628001B Extension Fitting/Inlet (NG) P03901017A Transform er Bracket P03328057A...
- Page 9 Y0250144 Rotisserie Assembly Parts Diagram Y0250144 Rotisserie Assembly Parts List DESCRIPTION PART# P05508182A Rot. Spit P05508077A Rot. Holding Fork S196G04081 Rot. Thumbscrew 1/4"x1/2" P05508181A Roller P03308002A Rot. Motor Bracket P07101031B Rot. Motor/AC S112G03084 Rot. Screw 3/16"x1/2"UNC S411G03064 Rot. Plain Washer 3/16" Hardware for Rotisserie Rot.
-
Page 10: Assembly Instructions
Assembly Instructions CAUTION : W hile it is possible for one person to assemble this grill, obtain assistance from another person when handling some of the larger, heavier pieces. Install Trim Panels Install Left Trim Panel onto the Left Bowl Panel using 3 Pan Head Screws 3/16"x1/2" and 1 Pan Head Screw 1/4"x1/2"... - Page 11 CAUTION: Build your grill island before installing the LP Gas Tank and Partition Panel (Not included in this unit). Refer to the heights listed in Fig. 4 for constructing your grill island. An island unit is not included with the purchase of your Grill Head. Install the LP Gas Tank (For BCR08ALP090 Model) Set the Grill Head into the Island (not included in this unit) as shown.
- Page 12 Install Ignitor Batteries Install Cooking Components Place Cooking Grids on bowl ledge. Remove the Ignitor Caps from the Control Place the Secondary Cooking Racks into Panel. the slots on Grill Bowl Side Panels. Place the batteries into the Ignitor slots with the positive poles facing the Caps.
-
Page 13: Lp Gas Tank Installation
LP Gas Tank Installation Never allow children to operate your grill. Do not allow CORRECT LP GAS TANK USE children or pets to play near your grill. Always supervise LP Gas grill models are designed for use with a standard children and pets if they are in the vicinity of the unit. - Page 14 USE AND CARE INSTRUCTIONS Secure a 20lb LP Gas Tank to Gas Grill NOTE about LP Gas Tank Exchange Programs Note: You can only use 20lb LP Gas Tank in this Gas Many retailers that sell grills offer you the option of replac- ing your empty LP Gas tank through an exchange service.
- Page 15 USE AND CARE INSTRUCTIONS Check all connections for LP Gas Leaks LP Gas Model only: Never test for leaks with an open flame. Prior to first Connect Regulator with Hose to your LP Gas Tank use, at the beginning of each season, or every time your LP Gas tank is changed, you must check for gas Turn all Burner Valves to the OFF position.
-
Page 16: Natural Gas Connection
Natural Gas Connection Fig. 1 Natural Gas Model only: Connecting Natural Gas To Your Grill Connect the Swivel nut of the 12' Natural Gas Hose to the vertical fitting of NG Regulator as shown in Fig. 1. Connect the other hose end (male plug) to the gas supply line from house. -
Page 17: Use & Care Instructions
USE AND CARE INSTRUCTIONS Grill Lighting Instructions If ignition does not occur in 5 seconds, turn gas off at Before each use, check all hoses for cracks, nicks, cuts, burns or abrasions. If a hose is damaged in any way, do source and turn Control Knobs OFF. -
Page 18: Troubleshooting
USE AND CARE INSTRUCTIONS Troubleshooting To purge air from your gas line and/or reset the regulator excess gas flow device: If the grill fails to light : Turn Control Knobs to the OFF position. Turn gas off at source and turn Control Knobs to OFF. - Page 19 USE AND CARE INSTRUCTIONS CORRECT ROTISSERIE USE ELECTRICAL EQUIPMENT USE o protect against electric shock, do not immerse cord or Read all instructions before initial use. plugs in water or other liquid. IMPORTANT: When using electrical appliances, basic safety precautions should always be used. Unplug from the outlet when not in use and before clean- ing.
-
Page 20: Rotisserie Instruction
Rotisserie Instructions 1. Remove all components from the carton. Attach the Motor Bracket on the outside of the left grill bowl panel. Align the two holes of the Bracket with the threaded holes on the grill bowl. Tighten securely using two 3/16"x1/2" UNC Phillips Head Screws and Rot. - Page 21 Install the Rotisserie Motor onto the Motor Bracket as shown. Be sure the Motor attaches to the Bracket with the electrical cord down. Rotisserie Motor Motor Bracket The Spit must rest in the slot of your grill bowl. Insert the assembled Rotisserie into the Motor as shown below. The Motor should be on the left side of your grill.
-
Page 22: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Exterior Stainless Steel Surfaces: Routine care and maintenance is required to preserve Proper care and maintenance will keep your grill in top operat- the appearance and corrosion resistance of stainless ing condition and prolong its life. Follow these cleaning proce- steel. - Page 23 Infrared Grill Cooking Instructions Burn-Off Indirect Cooking Before cooking on your gas grill for the first time, you To cook indirectly, the food should be placed on the left should "burn off " the grill to eliminate any odor or or right side of your grill (or Secondary Rack) with the foreign matter.
- Page 24 Guide to Infrared Grilling using the Direct Cooking Method Cut of Meat Approx. Total Cooking Times Grilling Steak and Ribs Fill Grease/Water Tray half-full. Turn the grill Burners on T-bone steak Rare: 4-6 minutes , close the Lid and preheat your grill 3 to 5 minutes. Open Sirloin steak Medium: 6-8 minutes Lid and place food on the mid section of a Cooking Grid.
- Page 25 Guide to Roasting & Baking using the Indirect Cooking Method An Important Note About Infrared Heat Settings Food preparation The suggested heat settings and cooking times shown are Trim meat of excess fat. Truss meat and poultry with cooking approximate. Unlike the controlled environment inside your string to retain shape if desired.
- Page 26 Guide to Stir-Frying and Deep-Frying DEEP-FRYING TECHNIQUES STIR-FRYING TECHNIQUES A wide variety of foods can be deep-fried outdoors on your This method of cooking is popular around the world and can grill, from potatoes, to seafood and chicken. Deep-frying be easily accomplished outdoors on your gas grill. It's a quick uses a large portion of oil, preferably saturated.
- Page 27 Question: Question: Sometimes I hear a humming sound coming from my Can I convert my grill from one fuel type to another in regulator. What causes this? And - My grill has a low other words from LPG to NG or vice versa? flame and sometimes will not light.
- Page 28 Question: After every use (after your grill has cooled down), wipe The Regulator and Hose supplied with my gas grill stainless surfaces with a soft, soapy cloth or sponge does not fit the older LP Gas tank I’ve used for years. then rinse with water.
- Page 29 Grand Home Holdings dba Barbeques Galore Limited Lifetime Warranty Barbeques Galore will warrant to the ORIGINAL PURCHASER of this gas grill that it will be free of defects in material and workmanship for set periods below from the date of purchase when used under normal outdoor use and correct assembly.
