TG-900+ User Manual

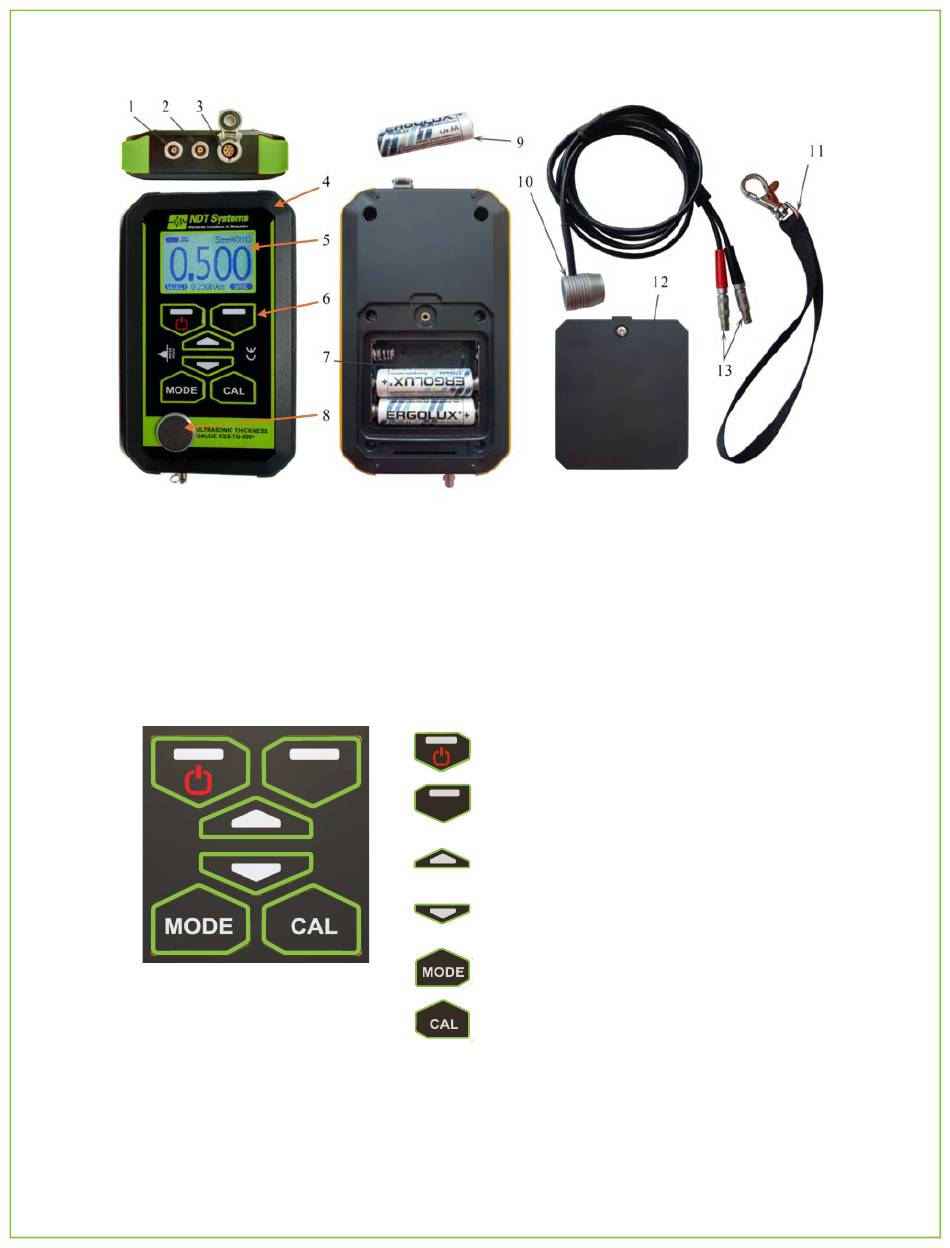

1 – Lemo-00 transmitter connection port; 2 – Lemo-00 receiver connection port; 3 – port for PC
connection and charging; 4 – TG-900+ instrument; 5 – display; 6 – keyboard; 7 – battery compartment; 8
– reference block; 9 – AA type battery; 10 – probe; 11 – strap; 12 – battery compartment cover; 13 –
Lemo-00 connectors.
Figure 1.1 – TG-900+ Ultrasonic Thickness Gauge
– power key / Left soft-key;
– right soft-key;
– move up in the instrument menu / increase the input
values;
– move down to the instrument menu / decrease the
input values;
– measurement mode selection;
– gain calibration.
Figure 1.2 – Keyboard Buttons and Their Functions
